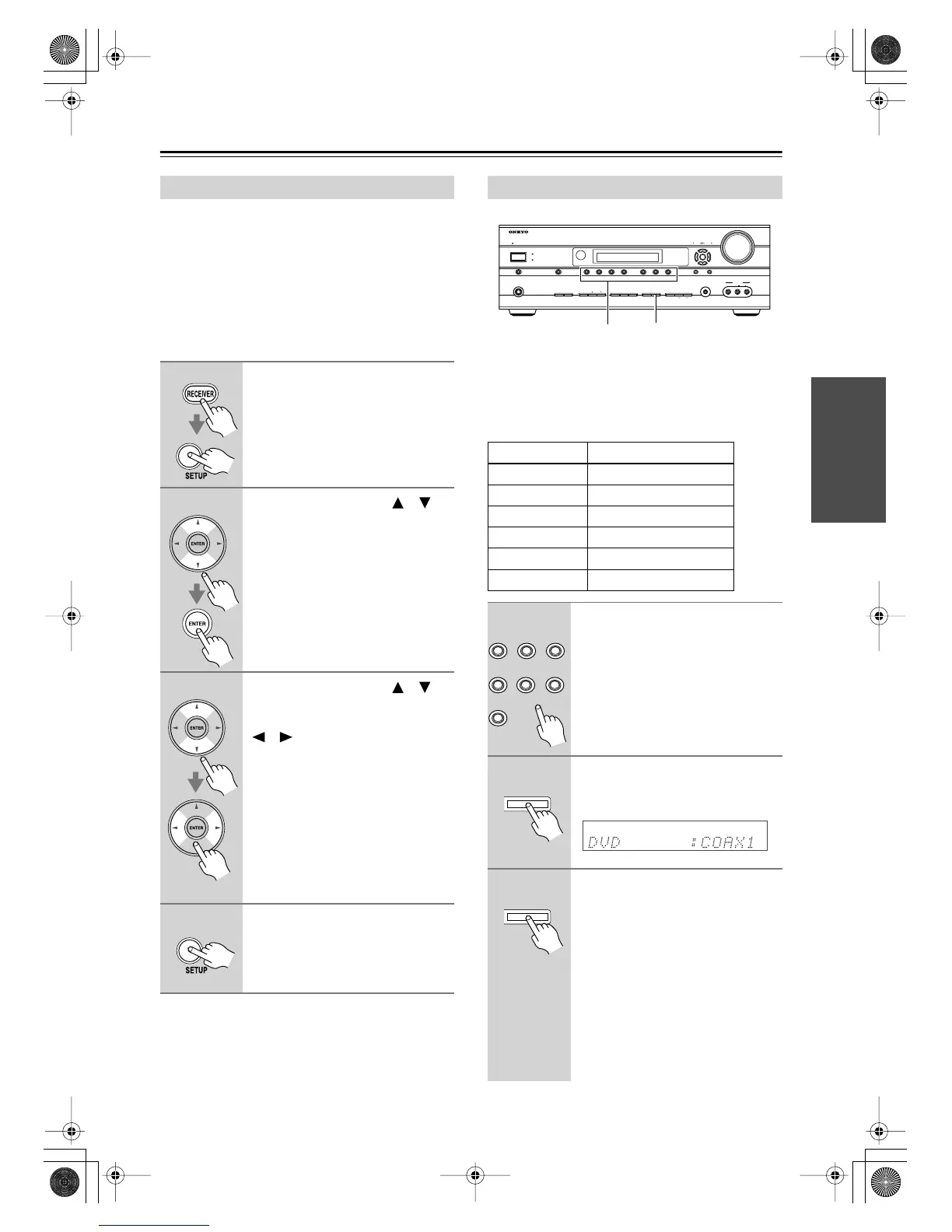

First Time Setup —Continued
If you connect a video component to a COMPONENT
VIDEO IN, you must assign that input to an input
selector. For example, if you connect your DVD player
to COMPONENT VIDEO IN 2, you must assign COM-
PONENT VIDEO IN 2 to the DVD input selector.
By default, the DVD input selector is assigned to COM-
PONENT VIDEO IN 1, and all of the other input selec-
tors (i.e., VCR/DVR, CBL/SAT, AUX) are assigned to
the “- - -” option.
Note:
• This procedure can also be performed on the AV
receiver by using its [SETUP], [ENTER], and arrow
buttons.
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example,
if you connect your CD player to OPTICAL IN 1, you
must assign OPTICAL IN 1 to the CD input selector.
These are the default assignments.
Component Video Input Setup
1
Press the [RECEIVER] button,
followed by the [SETUP] button.
2
Use the Up and Down [ ]/[ ]
buttons to select “2.Component,”
and then press [ENTER].
3
Use the Up and Down [ ]/[ ]
buttons to select an input selec-
tor, and use the Left and Right
[ ]/[ ] buttons to select:
IN1: Select if the video component
is connected to COMPO-
NENT VIDEO IN 1.
IN2: Select if the video component
is connected to COMPO-
NENT VIDEO IN 2.
No: Select if you’re not using the
COMPONENT VIDEO
OUT.
4
Press the [SETUP] button.
Setup closes.
Digital Input Setup
Input selector Audio input
DVD COAX1
VCR/DVR OPT1
CBL/SAT COAX2
AUX - - - -
TAPE - - - -
CD OPT2
1
Press the input selector button
for the input selector that you
want to assign.
The TUNER input selector cannot be
assigned and is fixed at the “- - -”
option.
2
Press the [DIGITAL INPUT]
button.
The current assignment is displayed.
3
Press the [DIGITAL INPUT] but-
ton repeatedly to select an
option.
COAX1 : Select if the component is
connected to DIGITAL IN
COAXIAL 1.
COAX2 : Select if the component is
connected to DIGITAL IN
COAXIAL 2.
OPT1 : Select if the component is
connected to DIGITAL IN
OPTICAL 1.
ON/STANDBY
STANDBY
PURE AUDIO
CINEMA
FILTER
TONE
MOVIE/TV MUSIC GAME
DISPLAY RT/PTY/TP MEMORY
CLEAR
DIGITAL INPUT TUNING MODE
LATE NIGHT
PHONES
MULTI CH PURE AUDIO DVD VCR/DVR CBL/SAT AUX TAPE TUNER CD
SETUP
SETUP MIC
VIDEO
L AUDIO R
AUX INPUT
ENTER
RETURN
TUNING PRESET
MASTER VOLUME
AV RECEIVER HT-R518
1 2, 3
DVD VCR/DVR CBL/SAT
AUXTAPE TUNER
CD
DIGITAL INPUT
DIGITAL INPUT
