Connections
Connecting the AV Receiver
Connecting the Speaker Cables

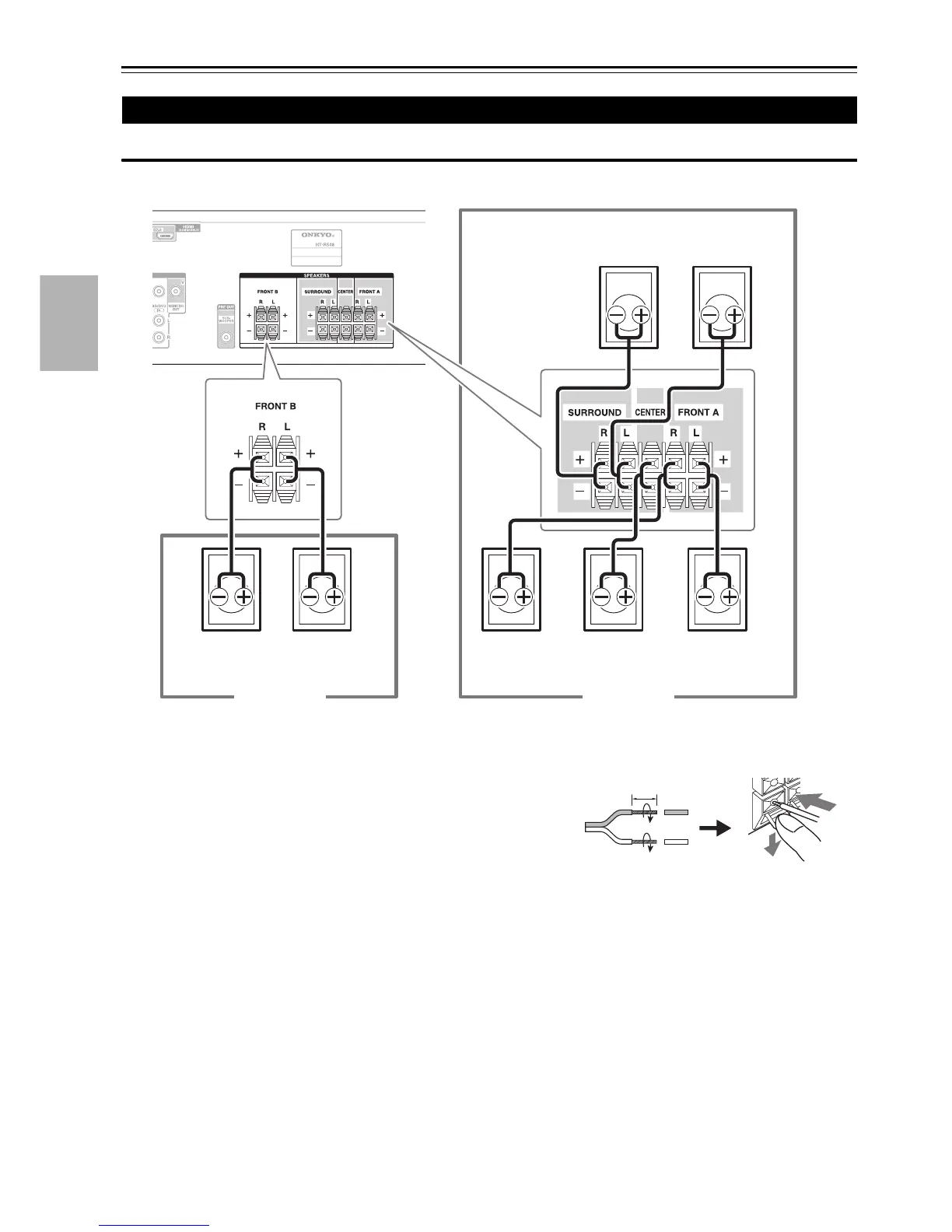

The following illustration shows which speaker should be connected to each pair of terminals.
■ Push-type speaker terminals
Strip 10 to 12 mm of insulation from the ends of the speaker cables,
and twist the bare wires tightly, as shown.
Connecting Your Speakers
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
10 to 12 mm
To Next Page
