7
En
Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
a 8 ON/STANDBY button (17)
b HDMI THRU indicator (39)
c SPEAKERS A and B buttons (29)
d Remote control sensor (4)
e LISTENING MODE buttons (26)
f Display (8)
g RT/PTY/TP button (21)
h MEMORY button (21)
i TUNING MODE button (20)
j DISPLAY button (30)
k SETUP button (32)
l TUNING, PRESET (20 to 21), arrow and ENTER
buttons
m RETURN button
n MASTER VOLUME control (18)
o MUSIC OPTIMIZER button (30, 41)
p PHONES jack (31)
q TONE and Tone Level buttons(40)
r Input selector buttons (18)
s AUX INPUT AUDIO and VIDEO jacks (14, 31)
t USB port (14)
u SETUP MIC jack (23)

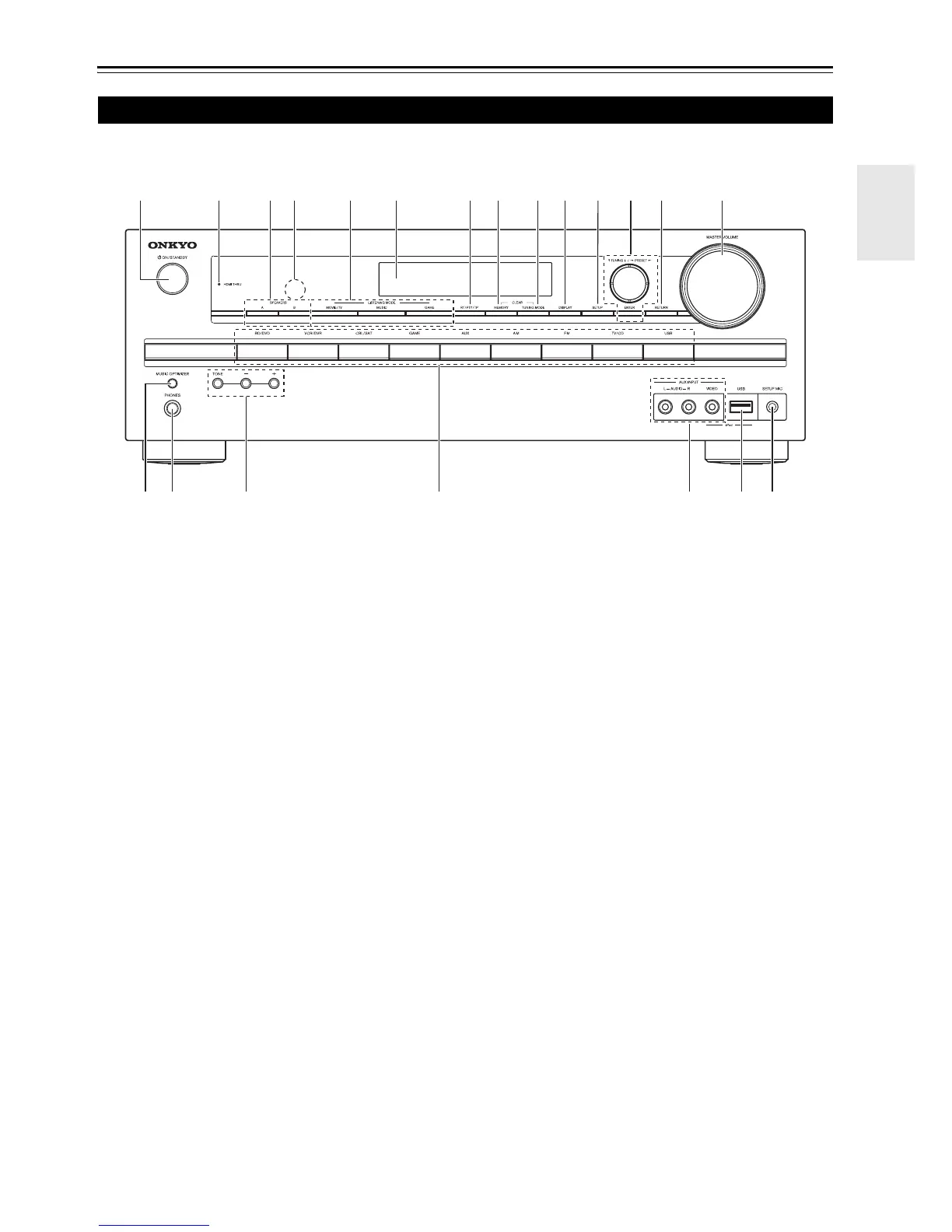

Front Panel
a
rs
t u
bcd
egfhijklmn
p
qo
