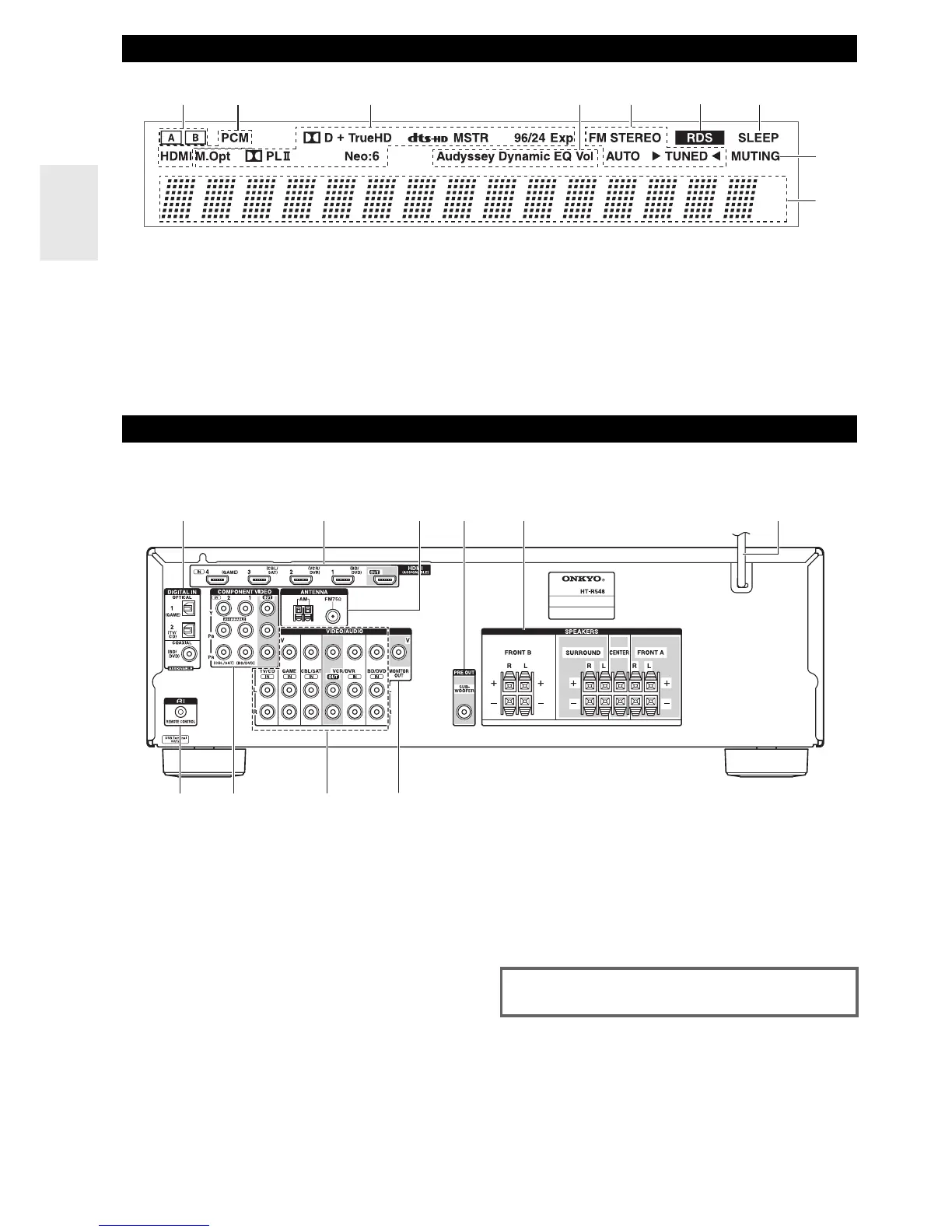

For detailed information, see the pages in parentheses.
a A and B speaker indicators (29)
b Audio input indicators
c Listening mode and format indicators (26, 30)
d Audyssey indicator (23, 36)
Dynamic EQ indicator (36)
Dynamic Vol indicator (37)
e Tuning indicators (20)
f RDS indicator (21)
g SLEEP indicator (29)
h MUTING indicator (31)
i Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b HDMI IN and OUT jacks
c FM ANTENNA jack and AM ANTENNA terminal
d SUBWOOFER PRE OUT jack
e SPEAKERS terminals
(FRONT A, CENTER, SURROUND, FRONT B)
f Power cord
g u REMOTE CONTROL jack
h COMPONENT VIDEO IN and OUT jacks
i Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
j MONITOR OUT V jack
Display
bc
a
fg
i
h
e
d
Rear Panel
ab
c
f
d
e
g
h
ij
See “Connecting the AV Receiver” for connection
(➔ pages 10 to 16).
