a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e SUBWOOFER PRE OUT jack
f Power cord (North American and Asian models)
g uREMOTE CONTROL jack
h Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
i MONITOR OUT V jack
j SPEAKERS terminals
(FRONT, CENTER, SURROUND, SURROUND
BACK or FRONT HIGH)
k AC INLET (Brazilian models)

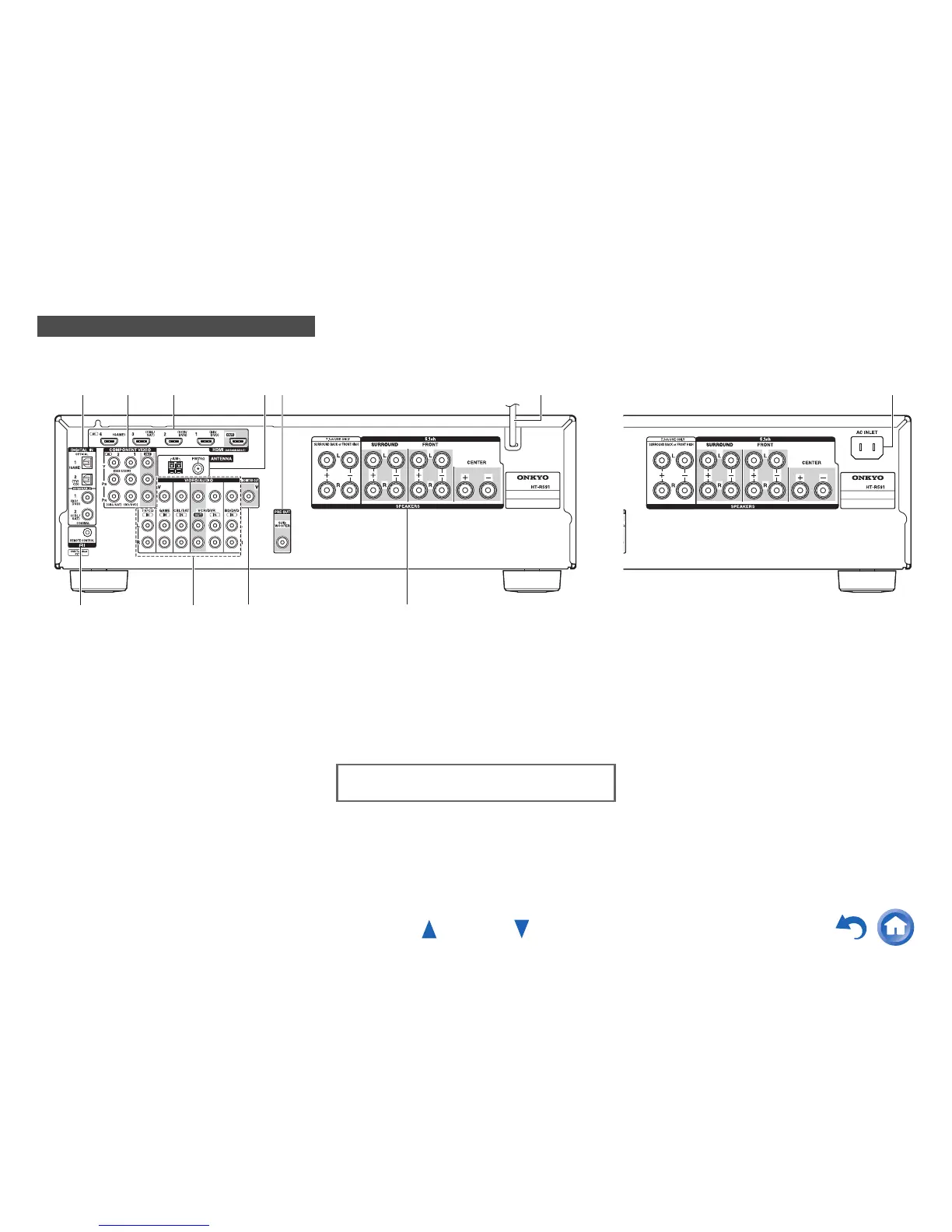

Rear Panel
(North American and Asian models) (Brazilian models)
a b c
d
f
e
g
h i
j
k
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 18).
