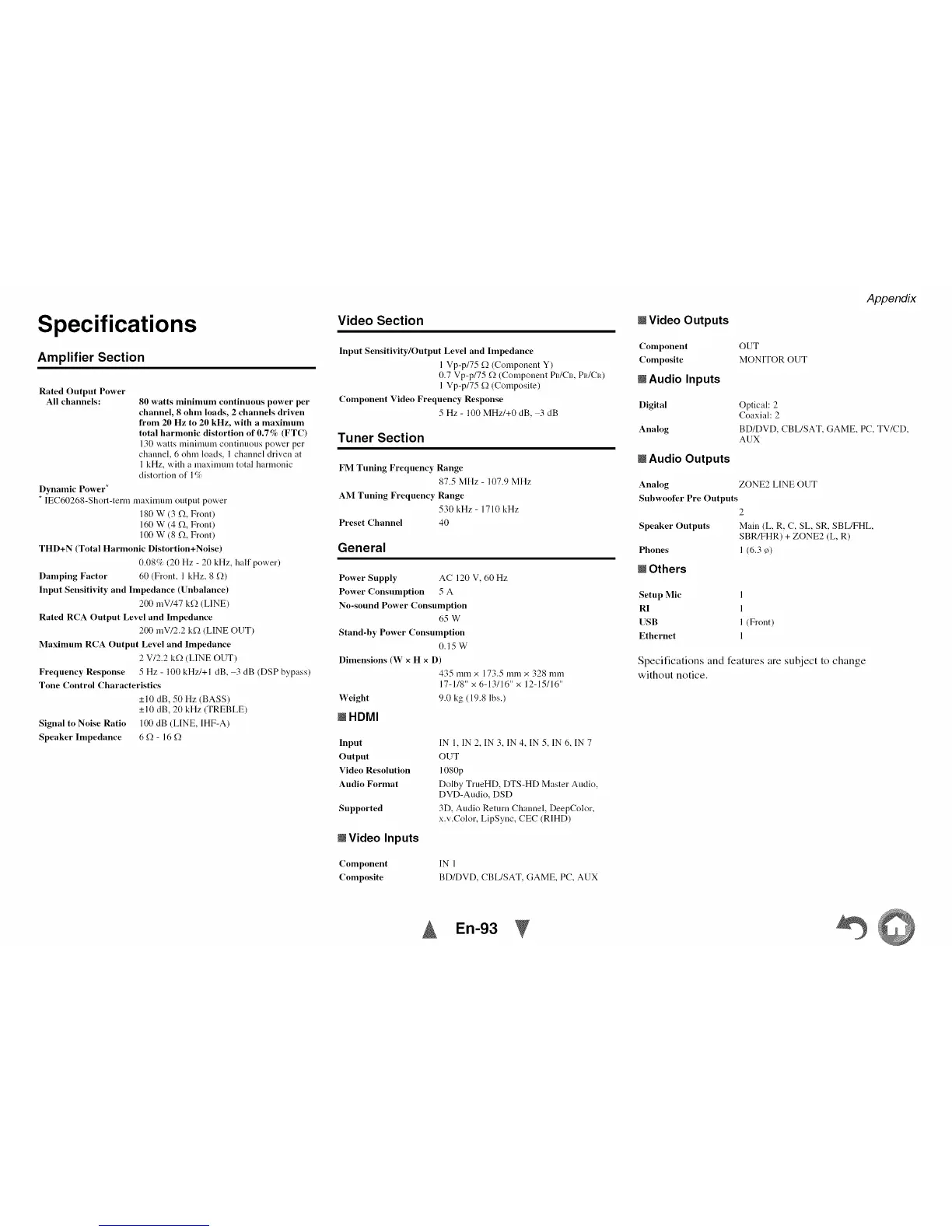

Specifications
Amplifier Section
Rated Output Power
All channels:
80 watts minimum continuous power per
channel, 8 ohm loads, 2 channels driven
from 20 Hz to 20 kHz, with a maxinmm
total harmonic distortion of 0.7 % (FTC)
130 watts minimum continuous power per
channel, 6 ohm loads, 1 channel driven at
1 kHz, with a maximum total harmonic
distortion of 1%
Dynamic Power*
*IEC(,0268-Short-tenn nmximum outpnt power
180 W (3 f)-, Front)
160 W (4 fL Front)
100 W (8 fL Front)
THD+N (Total Harmonic Distortion+Noise)
0.08% (20 Hz - 20 kHz, half power)
Damping Factor 60 (Front, 1 kHz, 8 f))
Input Sensitivity and Impedance (Unbalance)
200 mV/47 kf)- (LINE)
Rated RCA Output Level and Impedance
200 mV/2.2 kf) (LINE OUT)
Maxinmm RCA Output Level and Impedance
2 V/2.2 kf2 (LINE OUT)
Frequency Response 5 Hz - 100 kHz/+l dB, 3 dB (DSP bypass)
Tone Control Characteristics
_+10 dB, 50 Hz (BASS)
_+10 dB, 20 kHz (TREBLE)
Signal to Noise Ratio 100 dB (LINE, IHF-A)
Speaker Impedance 6 f_ - 16 f_
Video Section
Input Sensitivity/Output Level and Impedance
1 Vp-p/75 f) (Component Y)
0.7 Vp-p/75 f) (Component PB/CI3, PIJCI0
1 Vp-p/75 f) (Composite)
Component Video Frequency Response
5 Hz- 100 MHz/+0 dB, 3 dB
Tuner Section
FM Tuning Frequency Range
87.5 MHz - 107.9 MHz
AM Tuning Frequency Range
530 kHz- 1710 kHz
Preset Channel 40
General
Power Supply AC 120 V, 60 Hz
Power Consumption 5 A
No-sound Power Consumption
65 W
Stand-by Power Consumption
0.15W
Dimensions (W x H x D)
435 mmx 173.5 mmx 328 mm
17-1/8" x 6-13/16" x 12-15/16"
Weight 9.0 kg (19.8 lbs.)
NHDMI
Input IN 1, IN 2, IN 3, IN 4, IN 5, IN 6, IN 7
Output OUT
Video Resolution 1080p
Audio Format Dolby TrueHD, DTS-HD Master Audio,
DVD-Audio, DSD
Supported 3D, Audio Return Channel, DeepColor,
x.v.Color, LipSync, CEC (RIHD)
N Video Inputs
Component IN 1
Composite BD/DVD, CBL/SAT, GAME, PC, AUX
Appendix
N Video Outputs
Component OUT
Composite MONITOR OUT
mAudio Inputs
Digital Optical: 2
Coaxial: 2
Analog BD/DVD, CBL/SAT, GAME, PC, TV/CD,
AUX
N Audio Outputs
Analog ZONE2 LINE OUT
Subwoofer Pre Outputs
2
Speaker Outputs Main (L, R, C, SL, SR, SBL/FHL,
SBR/FHR) + ZONE2 (L, R)
Phones 1 (6.3 t_)
N Others
Setup Mic 1
RI 1
USB 1 (Front)
Ethernet 1
Specifications and features are subject to change
without notice.
En-93
©©
