TX-SR606
FIRMWARE UPDATE-3
UPDATE OF DSP
REMOTE
CONTROL
COAXIAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(GAME/TV)
2
(CD)
DIGITAL IN
ASSIGNABLE
IN 1(DVD)IN 2
COMPONENT VIDEO
Y
C
B/PB
C
R/
P
R
ASSIGNABLE
HDMI
IN 1
IN 2
IN 3
IN 4
ASSIGNABLE
R
L
IN IN IN
IN
IN
IN
IN
IN IN
CBL/SAT
GAME/TV
GAME/TV
CBL/SAT
VCR/DVR
VCR/DVR
TAPECD
DVD
S
V
OUT
(DVD)
(GAME/TV) (CBL/SAT) (VCR/DVR)
OUT
OUT
OUT
OUT
L
R
DIGITAL
ANALOG
REMOTE
CONTROL
OUT
OUT
OPTICAL
OPTICAL
1
(VCR/DVR)
DIGITAL
OUT
OPTICAL
Target unit
Rear panel
CD player
DSPSR606:08611A
Writing...
S/PDIF Update..
Digin: AUTO
Main1.03/08630A
Clear
Standby mode
*Number depends on the version.
*Number depends on the version.
Preparation for update
Update is done by playback of CD-R in a CD player.
Tool
1. Blank CD-R : 1pc, PC (Personal computer with CD-R writer)
2. Writing soft : “CD_SR6060_08213A.wav” (File name depends on the version.)
<Note>
Store it in a blank CD-R as a music CD in advance. For a writing soft, contact Onkyo or your local distributor.
3. CD player with Optical or Coaxial output terminal.
<Note>
Some CD players and a lot of DVD players process audio signal before output. Such players cannot be used for this update.
4. Optical cable or Coaxial cable : 1pc.

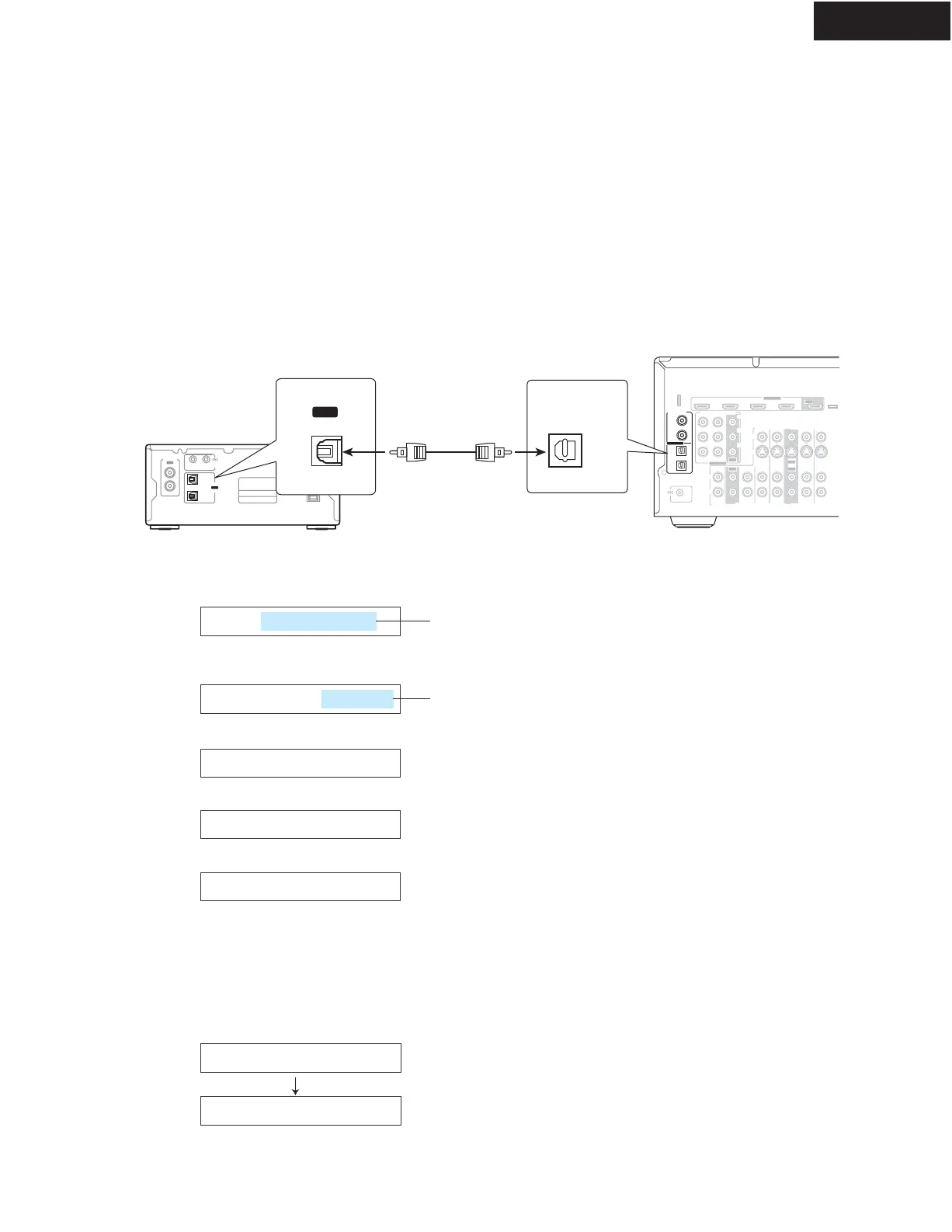

Connection and setup
1. Connect a CD Player with the target unit via Optical Input 1 or Coaxial Input 1.
2. Power on the unit and wait for more than 10 seconds.
Update Procedure
1. Press and hold down DISPLAY
button and then press ON/STANDBY
button to show Main microprocessor FW version
when the unit is powered on.
2. Press +(TONE)
button twice while the Main microprocessor FW version is displayed for about 3 seconds.
Then, DSP FW version will be displayed.
3. Press RETURN
button while the DSP version is displayed. Then, the following message will appear.
4. Press ENTER
button. Then, the following message will appear.
5. Play the DSP FW CD-R with the CD player. After playback finished, writing will start.
<Note1>
If the above message does not appear after waiting for a while, please try again.
Some DVD players are not suitable for this update. If writing results in failure, use another model of player.
<Note2>
DURING WRITING, DO NOT TURN OFF THE POWER and DO NOT DISCONNECT OPTICAL/COAXIAL CABLE.
If writing is stopped in the middle, Flash IC may need replacing.
6. After writing ends, the message on Front Display will change as follows.
7. Confirm the new version number. refer to “FIRMWARE UPDATE-1”.
