Game console
VCR or DVD recorder/Digital Video Recorder
AT) DVm QVDiiiiiiiiii_
etc
I _B_-ray_Dil_yJer
Satellite/cable set-top box, etc,

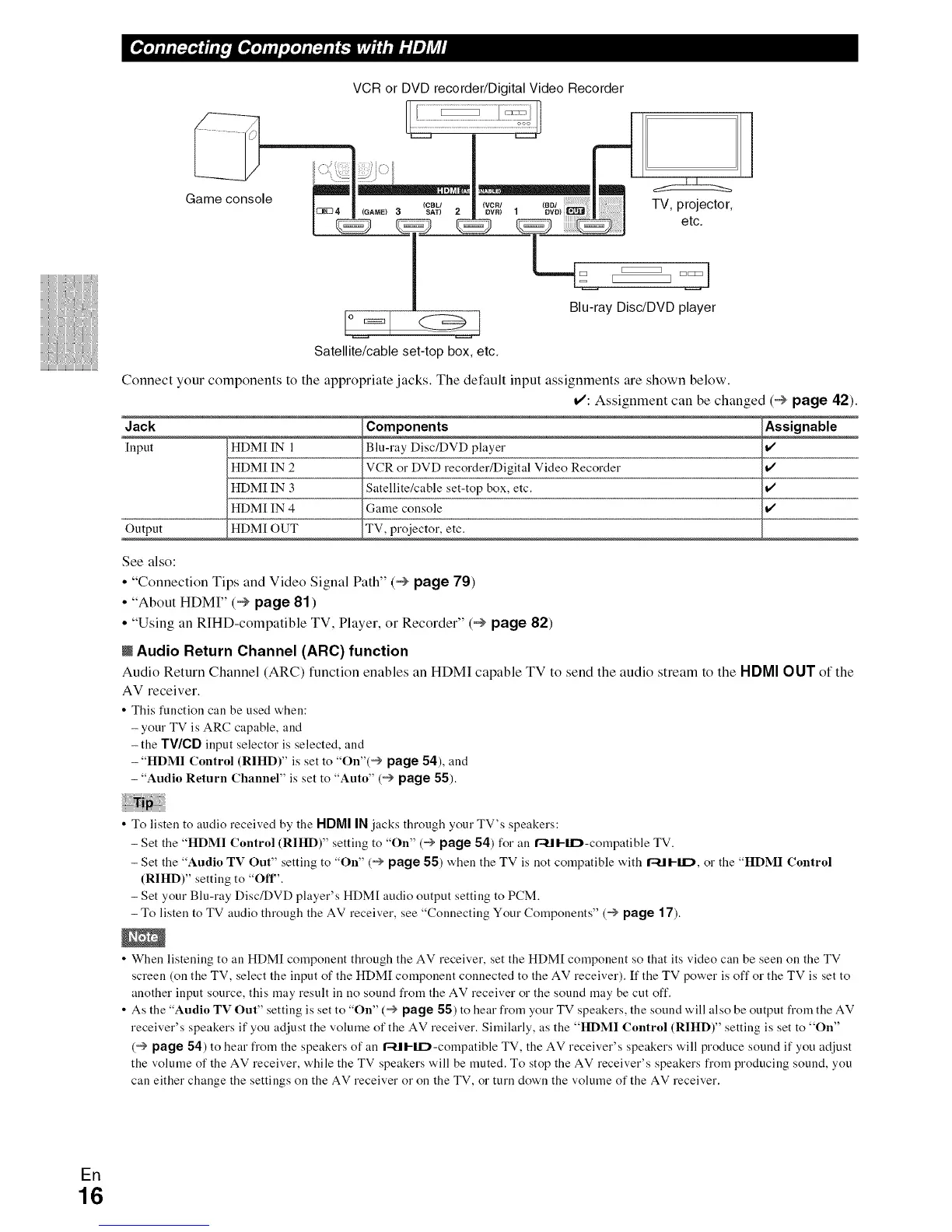

Connect your components to the appropriate jacks. The default input assignments are shown below.
_: Assignment can be changed (_ page 42).
Jack Components Assignable
[nput HDM[ IN 1 Blu-ray Disc/DVD player V'
HDM[ IN 2 VCR or DVD recorder/Digital Video Recorder
HDM[ IN 3 Satellite/cable set-top box, etc.
HDM[ IN 4 Game console
Output HDM[ OUT TV, projector, etc.
See also:
"Connection Tips and Video Signal Path" (_ page 79)
"About HDMI" (_ page 81 )
"Using an RIHD-compatible TV, Player, or Recorder" (_ page 82)
N Audio Return Channel (ARC) function
Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the
AV receiver.
This function can be used when:
- your TV is ARC capable, and
- the TV/CD input selector is selected, and
- "HDMI Control (RIHD)" is set to "On"(_ page 54), and
- "Audio Return Channel" is set to "Auto" (_ page 55).
To listen to audio received by the HDMI IN jacks through your TV's speakers:
- Set the "HDMI Control (RIItD)" setting to "On" (_ page 54) for an r"-tll-IID-compatible TV.
- Set the "Audio TV Out" setting to "On" (_ page 55) when the TV is not compatible with r411-11D, or the "HDMI Control
(RIHD)" setting to "OFF'.
- Set your Blu-ray Disc/DVD player's HDM[ audio output setting to PCM.
- To listen to TV audio through the AV receiver, see "Connecting Your Components" (_ page 17).
When listening to an HDM[ component through the AV receiver, set the HDM[ component so that its video can be seen on the TV
screen (on the TV, select the input of the HDM[ component connected to the AV receiver). If the TV power is off or the TV is set to
another input source, this may result in no sound from the AV receiver or the sound may be cut off.
As the "Audio TV Out" setting is set to "On" (_ page 55) to hear from your TV speakers, the sound will also be output from the AV
receiver's speakers if you adjust the volume of the AV receiver. Similarly, as the "ItDMI Control (RIHD)" setting is set to "On"
(_ page 54) to hear from the speakers of an r'411-11D-compatible TV, the AV receiver's speakers will produce sound if you adjust
the volume of the AV receiver, while the TV speakers will be muted. To stop the AV receiver's speakers from producing sound, you
can either change the settings on the AV receiver or on the TV, or turn down the volume of the AV receiver.
