Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (19)
b HDMI THRU indicator (49)
c SUBWOOFER LEVEL buttons (51)
d Remote control sensor (4)
e LISTENING MODE buttons (30)
f Display (8)
g DIMMER button (North American and Brazilian
models) (36)
h MEMORY button (25)
i TUNING MODE button (24)
j DISPLAY button (36)
k SETUP button (39)
l TUNING q/w, PRESET e/r (24), cursor and
ENTER buttons
m RETURN button
n MASTER VOLUME control (20)
o MUSIC OPTIMIZER button (37, 52)
p PHONES jack (37)
q TONE and Tone Level buttons (50)
r Input selector buttons (20)
s AUX INPUT AUDIO and VIDEO jacks (16)
t USB port (16)
u SETUP MIC jack (27)
v RT/PTY/TP button (Asian models) (25)

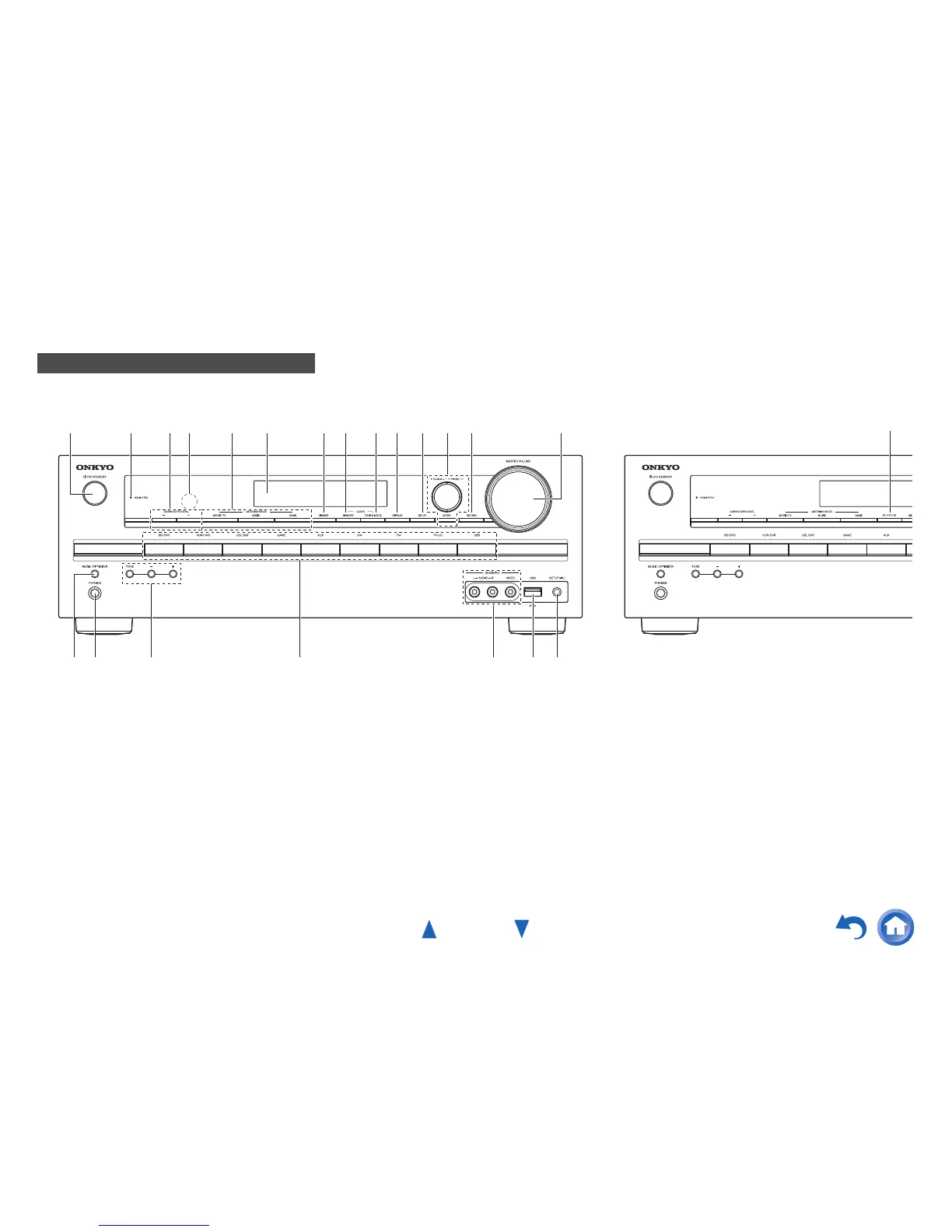

Front Panel
(North American and Brazilian models) (Asian models)
a
r s
tu
b c
d
e gf h ijklm n
p
qo
v
