Onkyo HT-S5800 - Amplifier Section

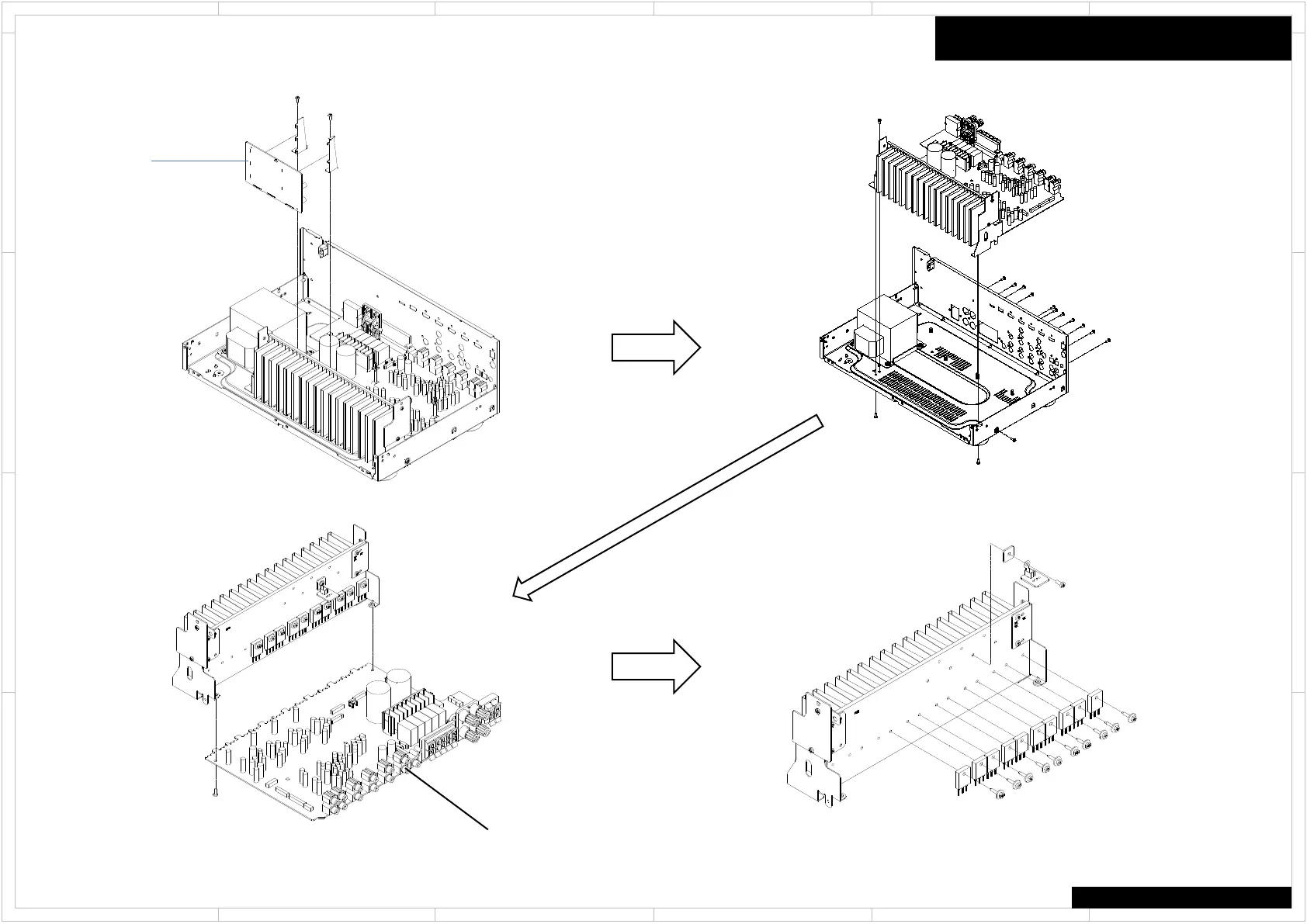

Disassembly
5 4 3
2
1
6
D
C
A
B
D
C
A
B
5 4 3
2
1
6
TX-SR343/444/HT-R494
Amplifier Section
BACLA-1734
BAAF-1712
This is TX-SR343. TX-SR444 / HT-R494 are same mostly structurally. Please refer to PANEL pages for detailed place by the terminal.
