Playing an MD
M.SCAN
Remote controller
231 45678910
11 12 13 14 15 16 17 18 19 20
L
R
-40 -30 -20 -10 -4 -2 0
-
SYNCLEVEL
DIGITAL IN
1
Flashes
POWER
REMOTE CONTROL RC-339MD
CONTINUE
PLAY MODE
RANDOM MEMORY
REPEAT A-B
>25
A-SPACE M.SCAN
CLEAR
ENTER
NAME
SCROLL DISPLAY
1
A
2345
678910
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
BCDE
FGHI J
KLMNO
PQRST
UVWXY
Z
.,
/?!
()
REC
M.SCAN
RANDOM
s
d,f
Remote controller
s
TRACK
231 45678910
11 12 13 14 15 16 17 18 19 20
L
R
-40 -30 -20 -10 -4 -2 0
-
SYNCLEVEL
RANDOM
DIGITAL IN
1
s PLAY
RANDOM
RANDOM
Remote controller
RANDOM
Remote controller
Remote controller
d
f
d
f
f
f
1
2

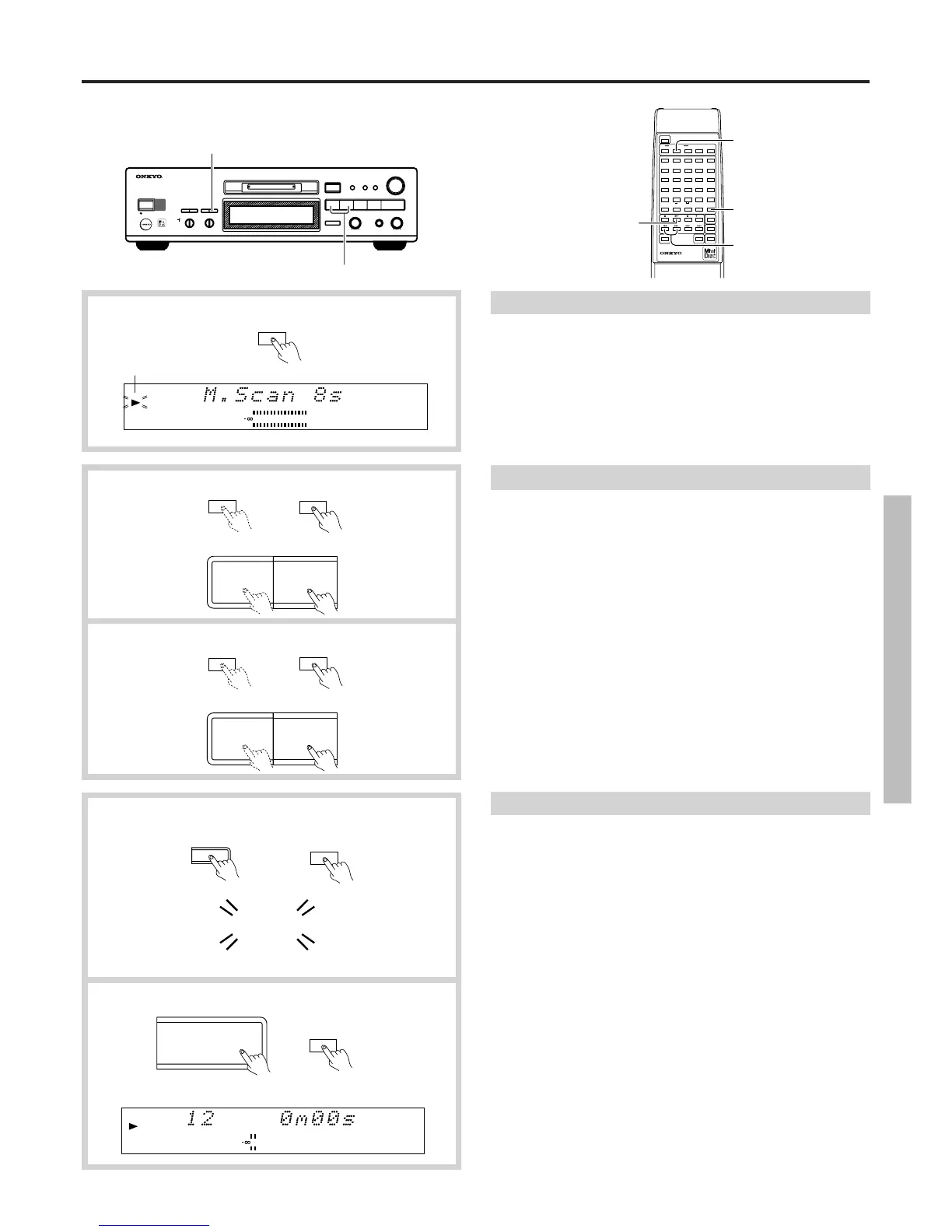

Music Scan (Remote controller only)
The following operation is possible using the remote controller only.
Pressing the M.SCAN button plays the beginning (8 seconds) of
each track on the disc in sequence whether the MD recorder is
either playing or stopped.
The s indicator flashes during music scan.
You can press the s button on the remote controller when the
beginning of a track is playing to start normal play from that track.
Searching for a part to play (Search play)
Searching for a part to play by sound (at play)
During play, hold down the d or f button and release it when
the part you want to hear is playing.
Searching for a part to play by using displayed time (at pause,
high-speed search)
When playing is temporarily stopped (paused), keep pressing the d
or f button and release it when the playing time of the part you
want to hear is displayed. Press the s PLAY button (or the s button
on the remote controller) to start playing from that part.
Note:
• "Over" in the display indicates that the end of the last track is
reached.
Playing tracks in a random order (Random play)
1. When the MD recorder is stopped, press the RANDOM button.
2. Press the s PLAY button (or the s button on the remote
controller).
To exit the random mode
When the MD recorder is stopped, press the RANDOM button. (Or,
press the CONTINUE button on the remote controller.)
(PUSH ENTER)
qAMCSw
f
r EJECT
DISPLAY EDIT / NO YES
g PAUSE e STOP s PLAY
d
PHONES LEVEL
PHONES
REC LEVEL
MAXMIN
MINIDISC RECORDER MD-2521
o REC
STANDBY
DIGITAL INPUT-2
STANDBY / ON
MEMORY CLEAR REPEAT RANDOM
INPUT TIMER
STEREO
MONO
ANALOG
DIGITAL-1
DIGITAL-2
DIGITAL-3
(COAXIAL)
OFF
REC PLAY
MAXMIN
DISC LOADING MECHANISM
3 DIGITAL INPUTS
RANDOM
d,f
d
d

Onkyo MD-2521 Specifications

Recording Specifications

recording time stereo	Max. 74 min.
recording time mono	Max. 148 min.
number of revolutions	About 400 - 900 rpm

Audio Specifications

sampling frequency	44.1 kHz
number of channels	2 (stereo)
frequency response	10 Hz - 20 kHz (±0.5 dB)
signal to noise ratio	105 dB or more when playing

Power

power supply rating	AC 230 V, 50 Hz
power consumption	14 watts
output level	2.0 volts r.m.s.

Weight and Dimensions

dimensions	435 × 121 × 310 mm
dimensions (inches)	17-1/8" × 4-3/4" × 12-3/16"
weight	4.5 kg (9.9 lbs.)
