Step1: Speaker Layout
＊
1
＊
2
＊
3
＊ 1: 22e 〜 30e, ＊ 2: 90e 〜 120e, ＊ 3: 135e 〜 150e
12
Front Speakers
3
Center Speaker
45
Surround Speakers
6
Powered Subwoofer
78
Surround Back Speakers

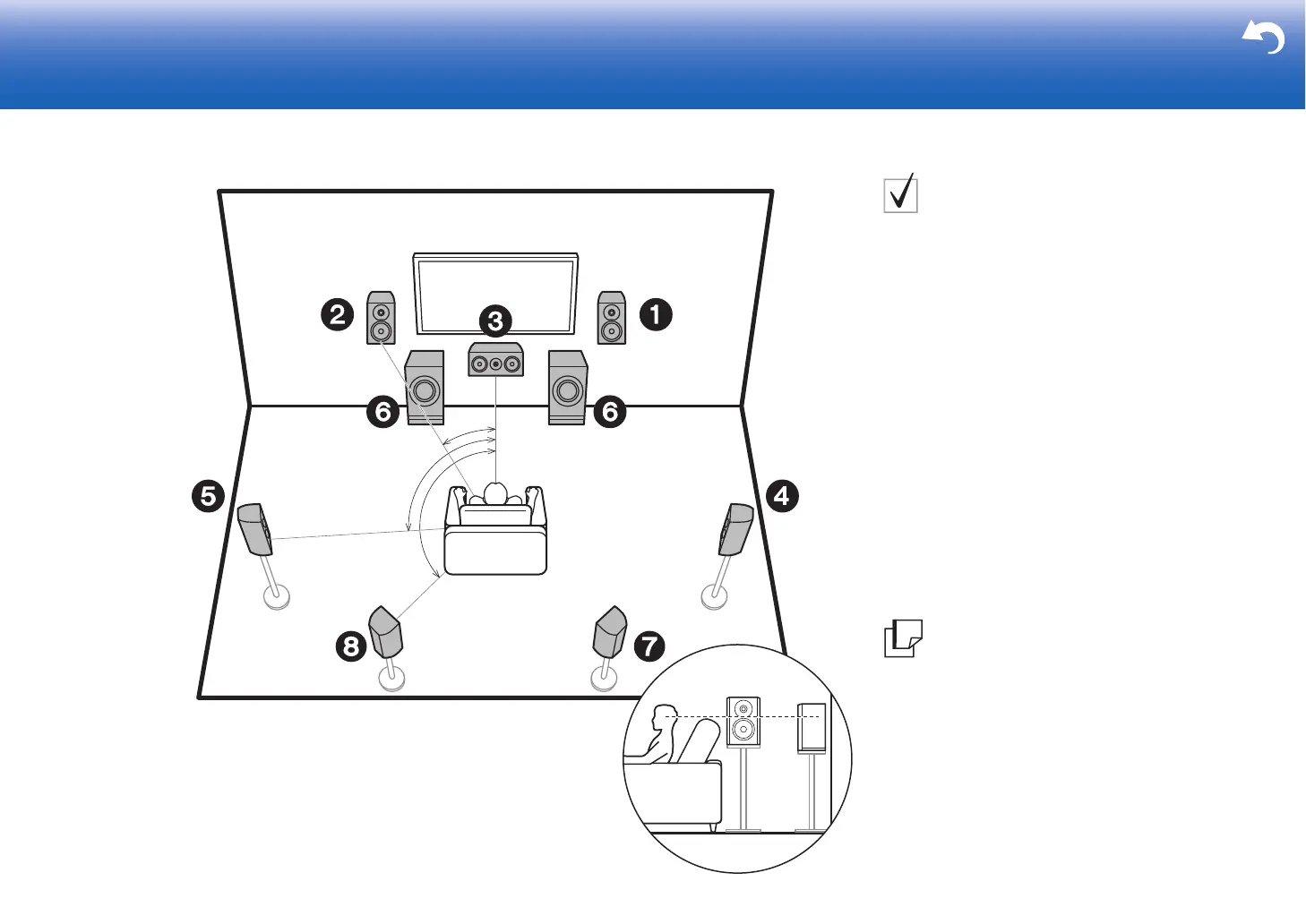

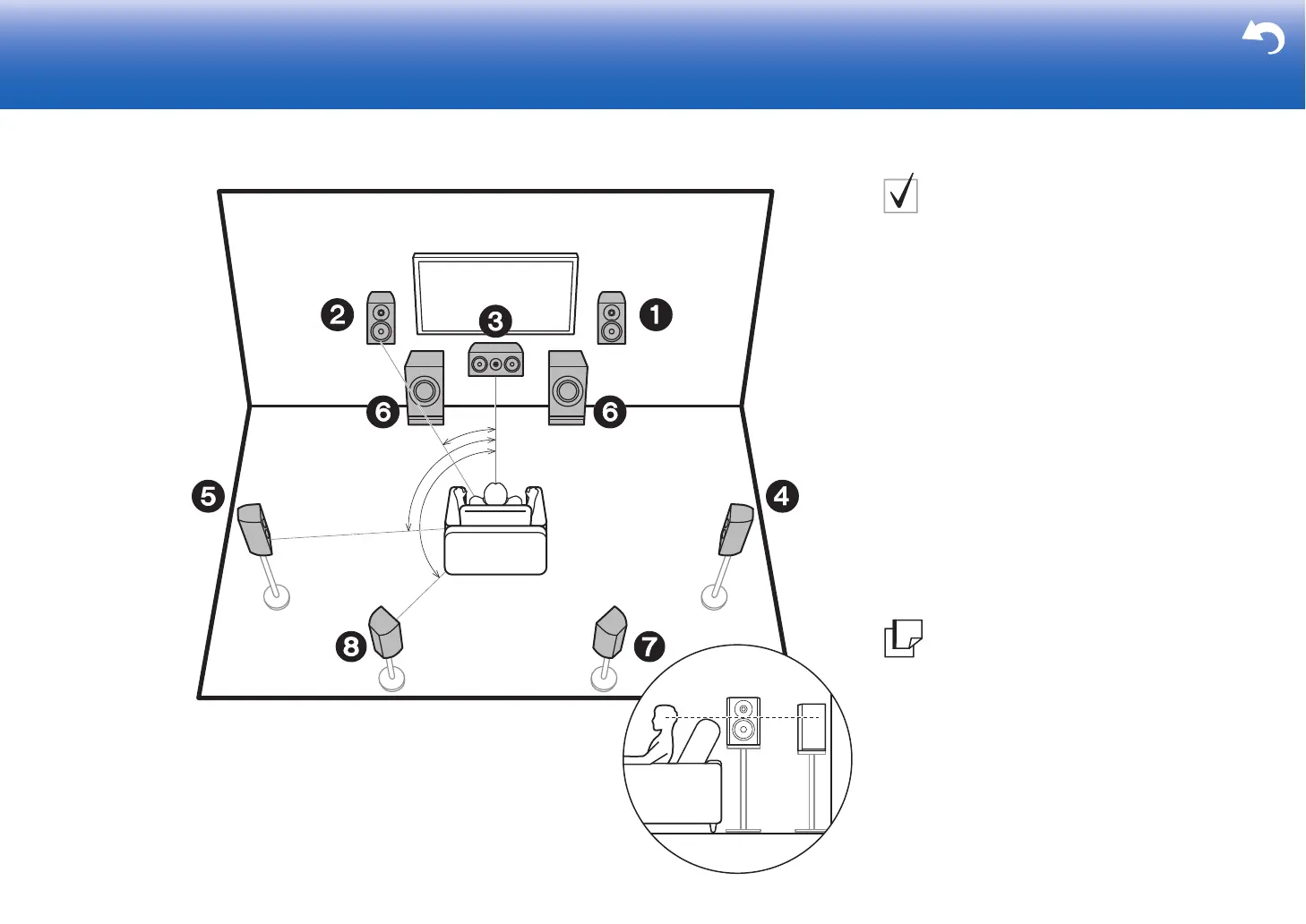

7.1-Channel System
Front speakers output front stereo sound and a center
speaker outputs center sound such as dialogs and vocals.
Surround speakers create back sound field. Powered
subwoofer reproduces bass sounds and creates rich
sound field.
Surround back speakers improve the sense of
envelopment created by the back sound field and provide
a more realistic sound field. Furthermore, by installing
surround back speakers, you can select the Dolby Atmos
listening mode, which realizes the most up-to-date 3D
sound, when the input format is Dolby Atmos.
The front speakers should be positioned at ear height,
while the surround speakers should be positioned just
above ear height. Center speaker should be set up facing
the listening position.
Placing the powered subwoofer between the center
speaker and a front speaker gives you a natural sound
even when playing music.
The optimal positioning is for surround back speakers to
be at ear height.
0 If you are including surround back speakers in the
setup, surround speakers are required.
