Onkyo PR-SC886 Service Manual

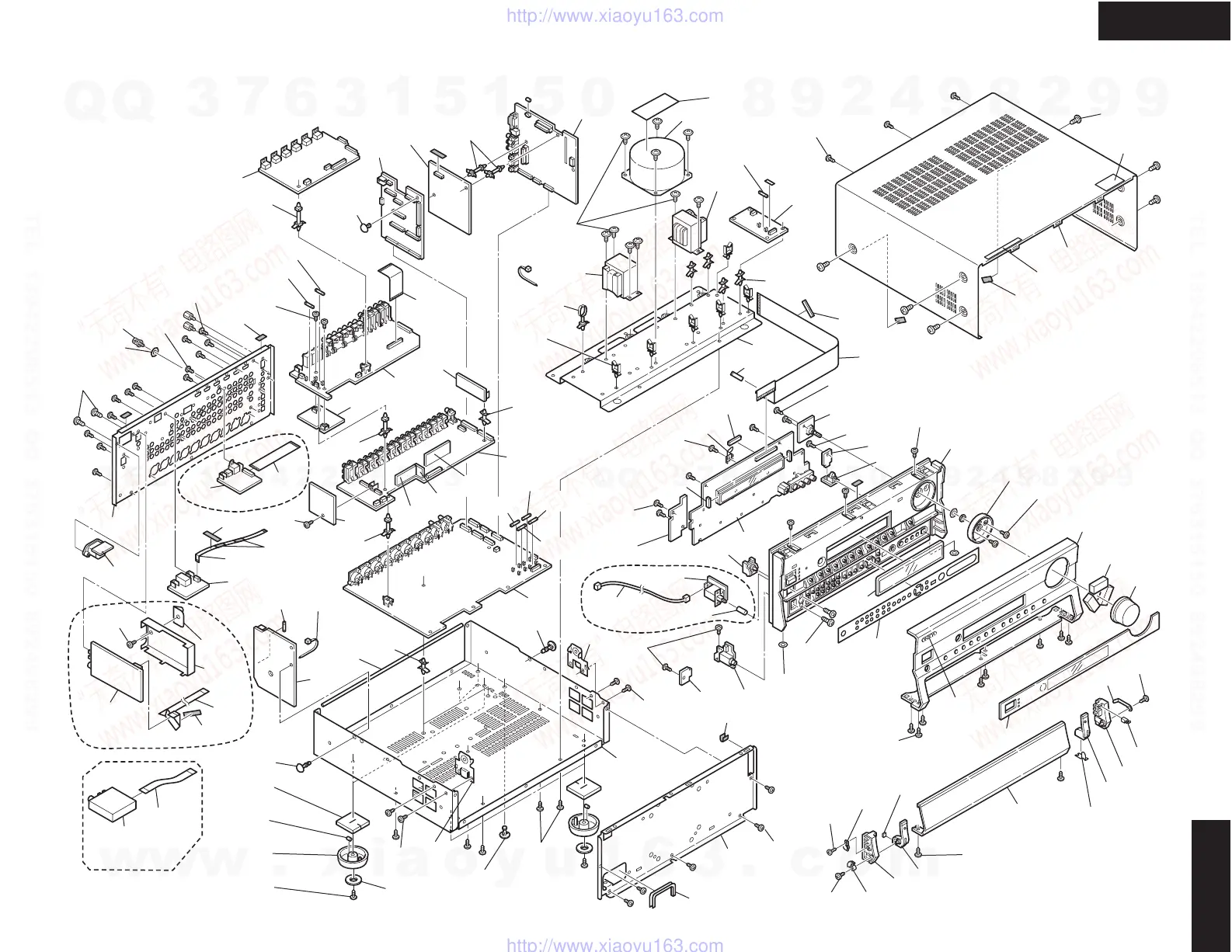

EXPLODED VIEW
PR-SC886
PR-SC886
MP Type
P101
U017
MP Type
A315
P9008
U28
A321
x 2 pcs.
A070
x 4 pcs.
A067
x 4 pcs.
A085
x 2 pcs.
A170
x 2 pcs.
A085
x 2 pcs.
A114
x 6 pcs.
A112
x 3 pcs.
A085
x 2 pcs.
A085
x 5 pcs.
U12
P102
A108
x 6 pcs.
A056
x 10 pcs.
A068
x 4 pcs.
A112
x 4 pcs.
A112
x 5 pcs.
A120
x 4 pcs.
A089
A114
x 2 pcs.
A112
x 71 pcs.
A094
x 2 pcs.
A078
x 3 pcs.
A076
x 2 pcs.
A109
x 4 pcs.
A066
A084
A084
A400
A089
A072
A411
F9000
A410
A086
A172
A107
A087
A104
A090
A100
U05
A106
A110
P101
P2801
A089
A089
A087
F2501
F5000
F5001
F5002
F5003
F2502
U07
U27
U14
P205
U01
U04
U16
U13
U15
A085
T905
T903
T904
A111
A132
A128
A067
U25
U06
U20
U26
U08
U10
U09
A058
U02
U03
F9301
A116
A118 A113
A092
A098
A096
A085
x 3 pcs.
A085
x 2 pcs.
A085
x 15 pcs.
A085
x 2 pcs.
A142
x 2 pcs.
A112
x 8 pcs.
A112
x 2 pcs.
A112
x 2 pcs.
A070
x 3 pcs.
A137
A137
A270
A205
A219
A239
A223
A085
A085
A221
A209
A211
A213
A215
A303
A311
A313
A207
A217
A201
A261
A085
A253
A251
A255
A301
A259
A281
P7501
U17
U21
U24
U22
U18
A085
x 2 pcs.
U19
U23
DD Type
DD Type
A069
x 4 pcs.
