Onkyo TA-6510 User Manual

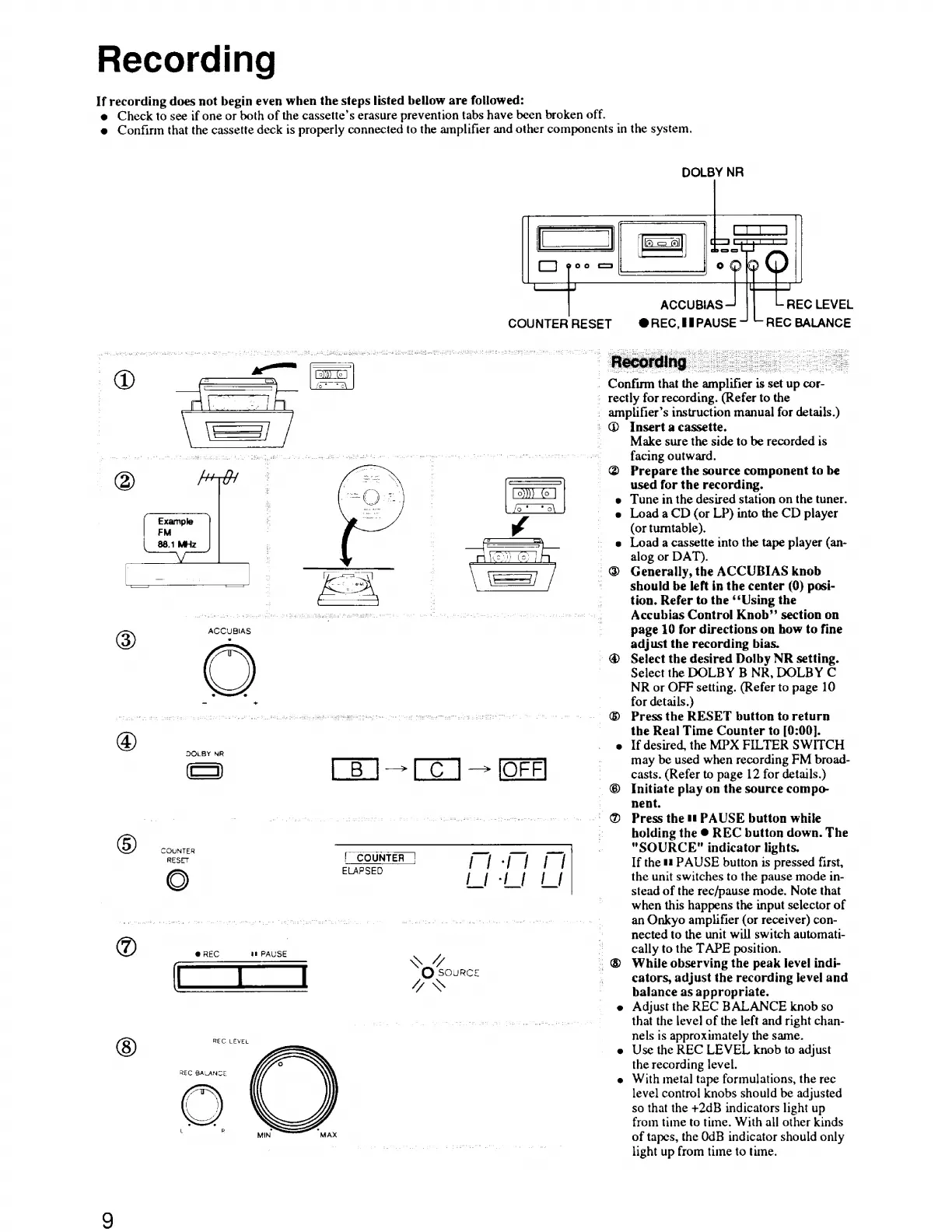

Recording
If recording does not begin even when the steps listed bellow are followed:
@ Check to see if one or both of the cassette’s erasure prevention tabs have been broken off.
e Confirm that the cassette deck is properly connected to the amplifier and other components in the system.
DOLBY NR
ACCUBIAS REC LEVEL
COUNTER RESET @REC, EEIPAUSE REC BALANCE
. Confirm that the amplifier is set up cor-
» rectly for recording. (Refer to the
- amplifier’s instruction manual for details.)
| @ Insert a cassette.
Make sure the side to be recorded is
| facing outward.
-@ Prepare the source component to be
used for the recording.
e Tune in the desired station on the tuner.
e Load aCD (or LP) into the CD player
(or turntable).
e Load a cassette into the tape player (an-
| alog or DAT).
~ @ Generally, the ACCUBIAS knob
: should be left in the center (0) posi-
tion. Refer to the ‘‘Using the
Accubias Control Knob” section on
page 10 for directions on how to fine
| adjust the recording bias.
~@ Select the desired Dolby NR setting.
| Select the DOLBY B NR, DOLBY C
NR or OFF setting. (Refer to page 10
- + . for details.)
| the Real Time Counter to [0:00].
@ 3OLBY NR . @ If desired, the MPX FILTER SWITCH
: may be used when recording FM broad-
Cc) > > casts. (Refer to page 12 for details.)
© Initiate play on the source compo-
| o))) (0 |
: nent.
oo, . ce gg pe gates Pes a genet tetttiae beet apache at @® Press the PAUSE button while
6) : holding the © REC button down. The
_— l_ : "SOURCE" indicator lights.
RESET ee i fll / If the ss PAUSE button is pressed first,
© i it | the unit switches to the pause mode in-
—_ stead of the rec/pause mode. Note that
when this happens the input selector of
: nected to the unit will switch automati-
%) e REC 1 PAUSE : cally to the TAPE position.
Ns _ ® While observing the peak level indi-
[ | | pono . cators, adjust the recording level and
re —_ balance as appropriate.
Adjust the REC BALANCE knob so
| loot nech amt ght Tee aa aa nate he that the level of the left and right chan-
REC LEVEL nels is approximately the same.
Use the REC LEVEL knob to adjust
the recording level.
COUNTER
|
REC BALANCE
e With metal tape formulations, the rec
level control knobs should be adjusted
so that the +2dB indicators light up
— from time to time. With all other kinds
MIN MAX ae of tapes, the OdB indicator should only
| ee light up from time to time.

Onkyo TA-6510 Specifications

Power

power supply rating (UK and Australian models)	AC 240 V 50 Hz
power supply rating (European models except UK)	AC 230 V, 50Hz
power supply rating (Worldwide models)	AC 120 and 220 V, Switchable 50/60 Hz
power consumption	13 watts

Audio Specifications

frequency response (normal)	20–18, 000 Hz
frequency response (high)	20–19, 000 Hz
frequency response (metal)	20–20, 000 Hz
signal-to-noise ratio	60 dB (metal tape, Dolby NR off)

Input and Output

input sensitivity	80 mV
input impedance	50 kohms
standard output level	500 mV
optimum load impedance (output)	over 50 kohms
optimum load impedance (headphone jack)	8 to 200 ohms

Weight and Dimensions

weight	5.0 kg
dimensions	455(W) x 120(H) x 310(D) mm
