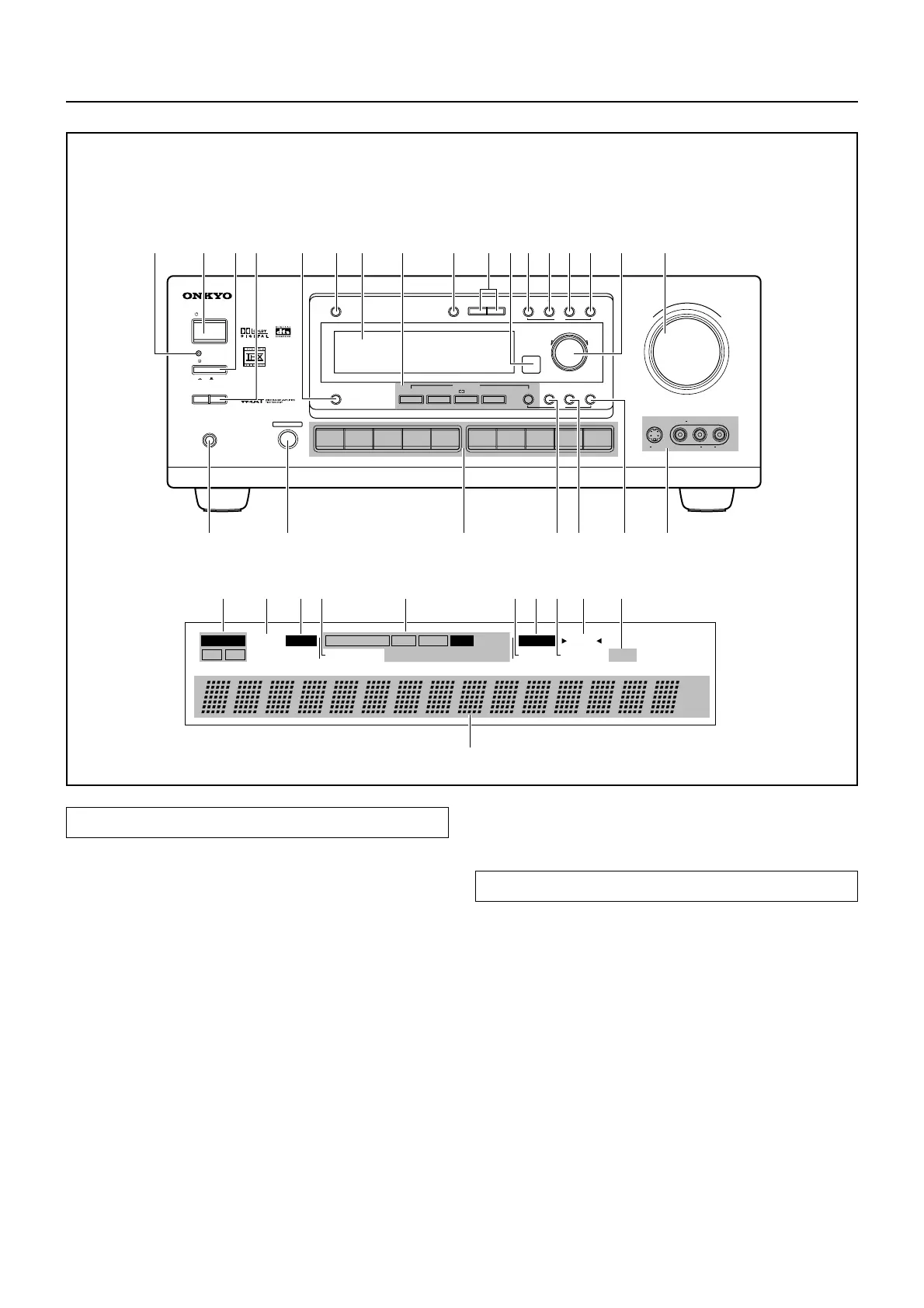

Front panel
For more information about buttons or knobs, refer to the pages
listed in the brackets ( [ ] ) below.
1. STANDBY indicator [5, 13]
2. STANDBY/ON button[13]
3. POWER switch [13]
4. SPEAKERS A/B button [26, 30]
5. DISPLAY button [23, 30, 47]
6. DIMMER button (Other than European model) [26]
PTY/TP button (European model) [47]
7. Display (Refer to the “Display” illustration.)
8. LISTENING MODE buttons [35, 36, 38]
The bottuns vary depending on the model you purchased.
9. FM MUTE/MODE button [24]
10. TUNING UP/DOWN button [23]
11. Remote control sensor [5]
12. CHARACTER/MEMORY buttons [25, 41]
13. SP/SYS SETUP button [16, 18, 20~22, 40, 43 ]
14. AUDIO ADJUSTMENT button [38]
15. BASS/TREBLE button [31]
16. SMART SCAN CONTROLLER [16, 32]
17. MASTER VOLUME control knob [26, 35]
18. VIDEO-4/VIDEO CAM INPUT [8]
19. CH LEVEL button [42]
20. DIGITAL/ANALOG button [23, 28]
21. REC OUT button [44, 45]
Control positions and names
22. INPUT SELECTOR buttons [23, 26, 32, 35]
23. MULTI CHANNEL INPUT button [33]
24. PHONES [26]
Display
If a protective film on the surface of the screen making it difficult to
read the display, remove the film.
a. Speakers A/B indicators
b. Rec out indicator
c. Sleep indicator
d. PCM digital indicator
e. Listening mode or Digital input format indicators
(The MPEG indicator appears on the European model (TX-DS777/
TX-DS676) and the worldwide model (TX-DS777) only.)
f. Memory indicator
g. RDS station received indicator (European model only)
h. FM Stereo indicator
i. Tuned indicators
j. Auto indicator
k. Multi function display
(Frequency and Preset station/Input selector/Sleep time/
Volume level/Listening mode)
