Onkyo TX-DS696

1
Vss 5 L-A-GNDA
28 VDD 24 R-A-GNDA
3 L-OUTA 8 L-A-GNDB
26 R-OUTA 21 R-A-GNDB
6 L-OUTB 11 L-A-GNDC
23 R-OUTB 18 R-A-GNDC
9 L-OUTC 12 CS1
20 R-OUTC 17 CS2
4 L-INA 14 CK
25 R-INA
15 DATA
7 L-INB
16 STB
22 R-INB 13 GND
10 L-INC 27 TEST
19 R-INC 2 NC
NC Vss VDD TEST
2
1
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
L-OUTA
L-INA
L-A-GNDA
L-OUTB
L-INB
L-A-GNDB
L-OUTC
L-INC
L-A-GNDC
CS1
GND
CK
DATA
STB
CS2
R-OUTA
R-INA
R-A-GNDA
R-OUTB
R-INB
R-A-GNDB
R-OUTC
R-INC
R-A-GNDC
1dB
VR
latch
8dB
VR
latch
1dB
VR
latch
8dB
VR
latch
1dB
VR
latch
8dB
VR
latch
3 to 7
decoder
4 to 13
decoder
Same as L-ch
Circuit
Strobe generator
circuit
Shift register(32 bit)
Lev
el shift circuit
VR1
VR2
OUTX
INX
A-GNDX
Pin No. Symbol Pin name Pin No. Symbol Pin name
Negative power supply pin
Positive power supply pin
Volume output pins
Volume input pins
Analog ground pins
Chip select input pins
Clock input pin
Data input pin
Strobe input pin
Digital ground pin
Test pin
No connection

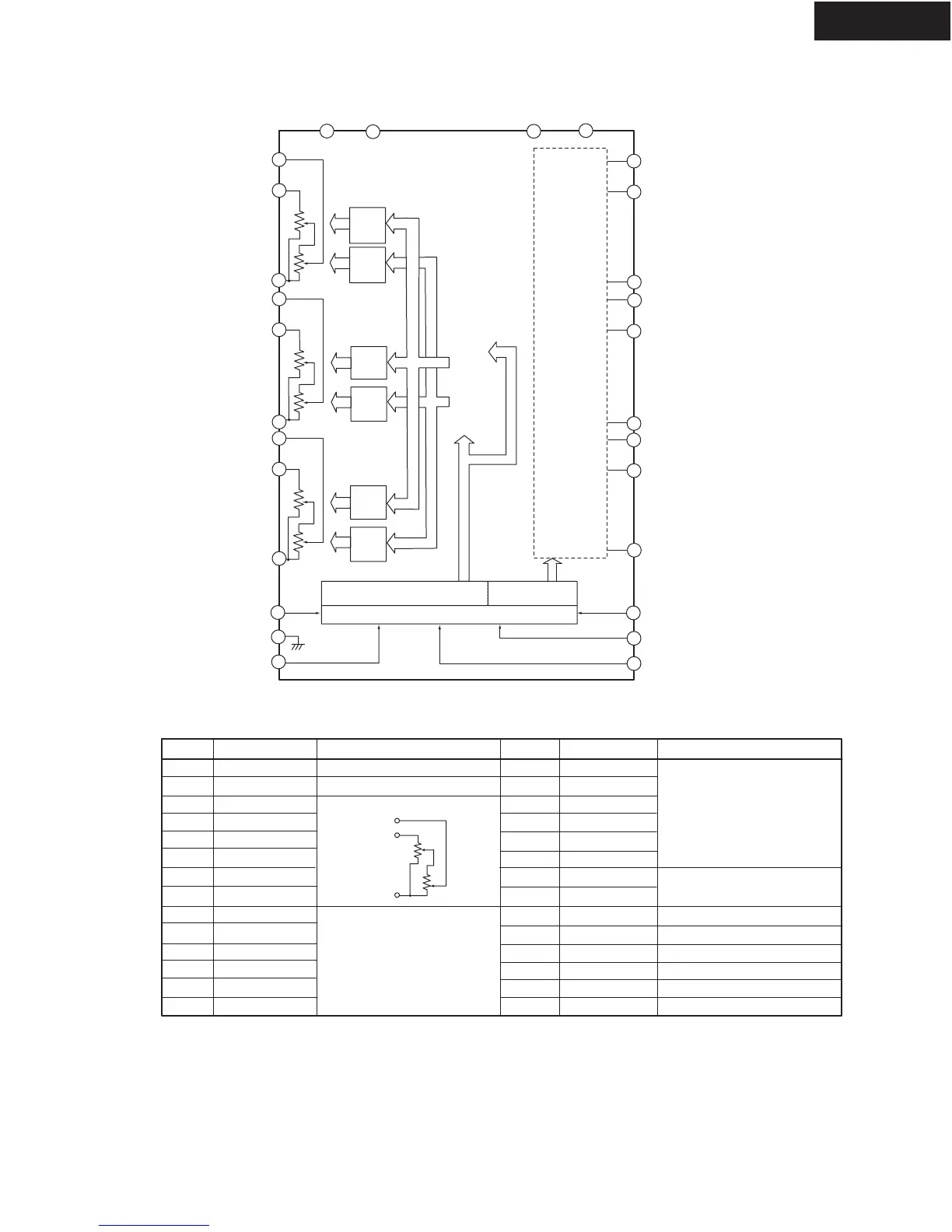

TC9482N(6 channel electronic volume)
Block diagram
Terminal description
TX-DS595/696
