STANDBY/ON
STANDBY
OFF
ON
POWER
MASTER VOLUME
BASS
TREBLE
AV
RECEIVER
TX
-
DS
595
PHONES
FM AM PHONO C
DTAPE
CH LEVEL
VIDEO
2
VIDEO
3
VIDEO
1
DVD
VCR
TUNING PRESET
SMART
SCAN
NAVIGATOR
PRESET MEMORY
FM
MODEDISPLAY RT
/
PTY/
TP
PUSH TO ENTER
DSP
/
MODE ADJ
SETUP
RETURN
ABSPEAKERS
AUDIO
SELECTOR
ch
f
t
DIRECT
DS
P
RDS
SLEEP
MEMORY
SPEAKERS
FM MUTE
PC
M DIGITAL
TUNED
FM STEREO
dB
STEREO
AB
MPEG
DTS

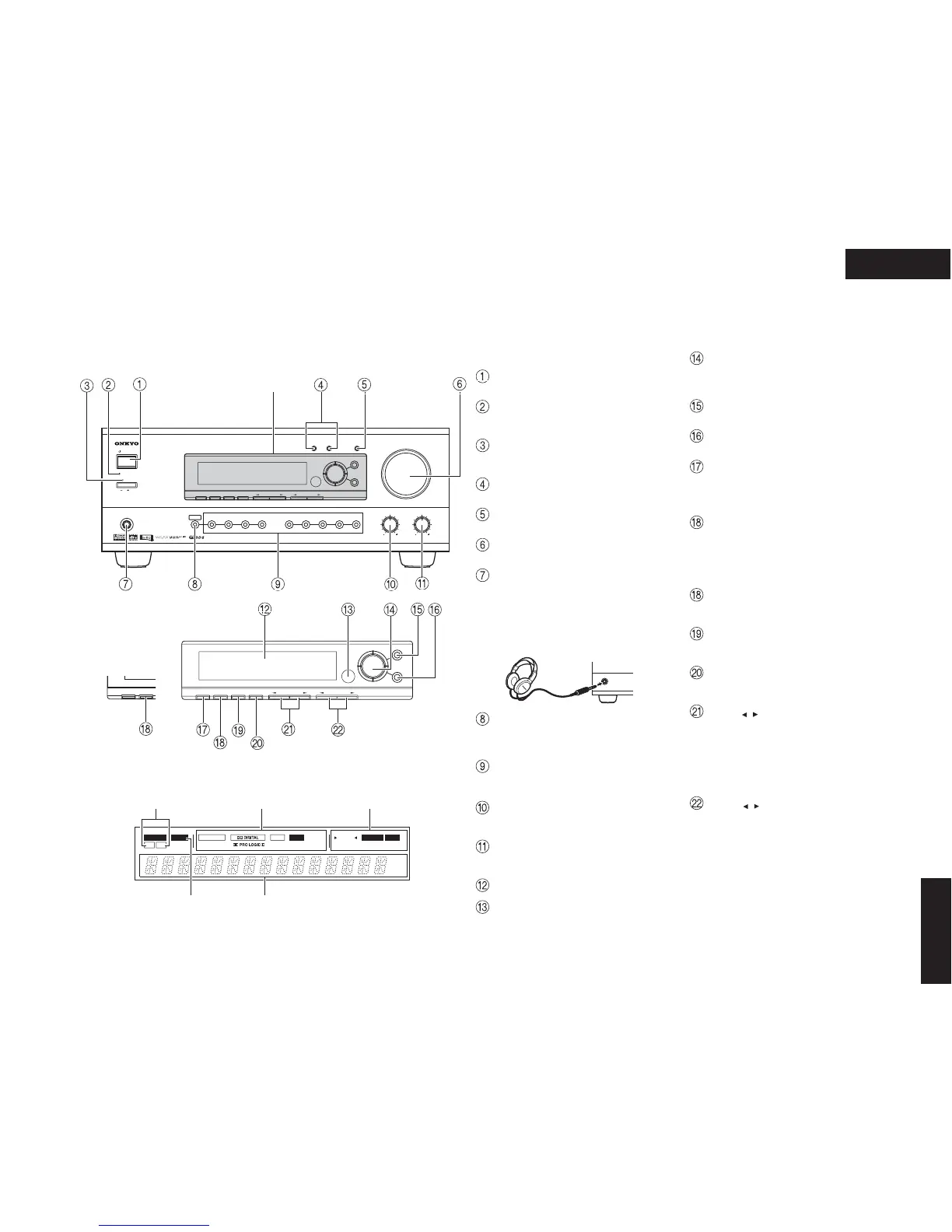

See illustration below
Front panel
Front panel display
TUNING PRESET
SMART
SCAN
NAVIGATOR
PRESET MEMORY
FM
MODEDISPLAY RT
/
PTY/
TP
PUSH TO ENTER
DSP
/
MODE ADJ
SETUP
RETURN
DISPLAY DIMMER
For all models other
than European model
Speakers A/B indicators
Sleep indicator Multi function display
Listening mode or digital input
format indicators Tuning indicators
7
POWER switch
Turns on and off the main power supply for the TX-DS595.
STANDBY indicator
Lights when the TX-DS595 is in the standby state and flashes when
a signal is received from the remote controller.
STANDBY/ON button
Press to turn on the TX-DS595 when in the standby state. Press again
to return the TX-DS595 to the standby state.
SPEAKERS A/B buttons
Press these buttons to turn on and off speakers systems A and B.
CH LEVEL button
Press to select the channel whose level is to be adjusted.
MASTER VOLUME dial
The MASTER VOLUME dial is used to control the volume.
PHONES jack
To listen with headphones, plug a pair headphones with a standard
stereo plug into the PHONES jack on the TX-DS595 front panel.
When you connect headphones, the unit will enter STEREO mode
automatically and no sound will be heard from the speakers. If you
have selected MULTI CH INPUT, you will hear sound only from the
FRONT L and R channels. Note that the volume level for the
headphones is adjustable.
AUDIO SELECTOR button
This button is used to select the type of audio input signal. Each time
pressed, the setting cycles from “AUTO” “MULTICH”
“ANALOG” and back.
Input source buttons (DVD, VIDEO 1–3, TAPE, FM,
AM, PHONO, and CD)
These buttons are used to select the input source.
BASS dial
Boosts or cuts the bass response. Bass adjustment is effective only
for the front speakers and headphones.
TREBLE dial
Boosts or cuts the treble response. Treble adjustment is effective
only for the front speakers and headphones.
Front display
Remote control sensor
PHONES
SMART SCAN NAVIGATOR jog dial and indicators
Used to make settings in the setup display, change listening mode
settings, and more.
SETUP button
Press to enter and exit the setup mode.
RETURN button
Press to move up one level in the setup mode.
DISPLAY button
The DISPLAY button is used to display information about the
current input source signal. Each time you press the display button,
the screen changes to show you different information concerning the
input signal.
RT/PTY/TP (European models only) button
This button is only available on European models. Use this button to
help tune into the Radio Data System (RDS) for FM broadcasting.
RDS was developed within the European Broadcasting Union
(EBU) and is available in most European countries. Each time the
button is pressed, the display changes from RT (radio text) to PTY
(program type) to TP (traffic program) and then back to RT again.
DIMMER (other than European models) button
Press to set the brightness of the front display. There are 3 settings
available: normal, dark, and very dark.
FM MODE button
When there is too much noise in the stereo reception of an FM
broadcast, press to turn off the FM MUTE function.
PRESET MEMORY button
This button is used to assign the radio station that is currently tuned
in to a preset channel or delete a previously preset station.
TUNING / buttons
Use these buttons to change the tuner frequency. The tuner
frequency is displayed in the front display and it can be changed in
50 kHz increments for FM and 10 kHz (or 9 kHz) increments for
AM.
When FM is selected, you can hold down one of the tuning buttons
and then release it to activate the auto-search feature. It will search
for a station in the direction of the button you pressed and stop
when it tunes into one.
PRESET / buttons
When AM or FM is selected as the input source, press one of these
buttons to jump to a radio station that you preset using the PRESET
MEMORY button. Pressing the right button moves from the most
recently preset station to older ones, and pressing the left button
moves in the reverse order.
TX-DS595
PANEL VIEWS
