Onkyo TX-DS787

15
Rear panel facilities
12V TRIGGER terminal
This terminal is provided so that you can use the operation of the
TX-DS787 control the operation of another externally connected
device. Connect the component to this 1/8-inch mini-jack terminal
and when the set input source is selected, the device will turn on.
Set the 12V TRIGGER terminal using the 12V Trigger setting of
the 12V Trigger sub-menu (see page 40).
AM FREQUENCY STEP switch
(see page 7)
VOLTAGE SELECTOR (see page 7)

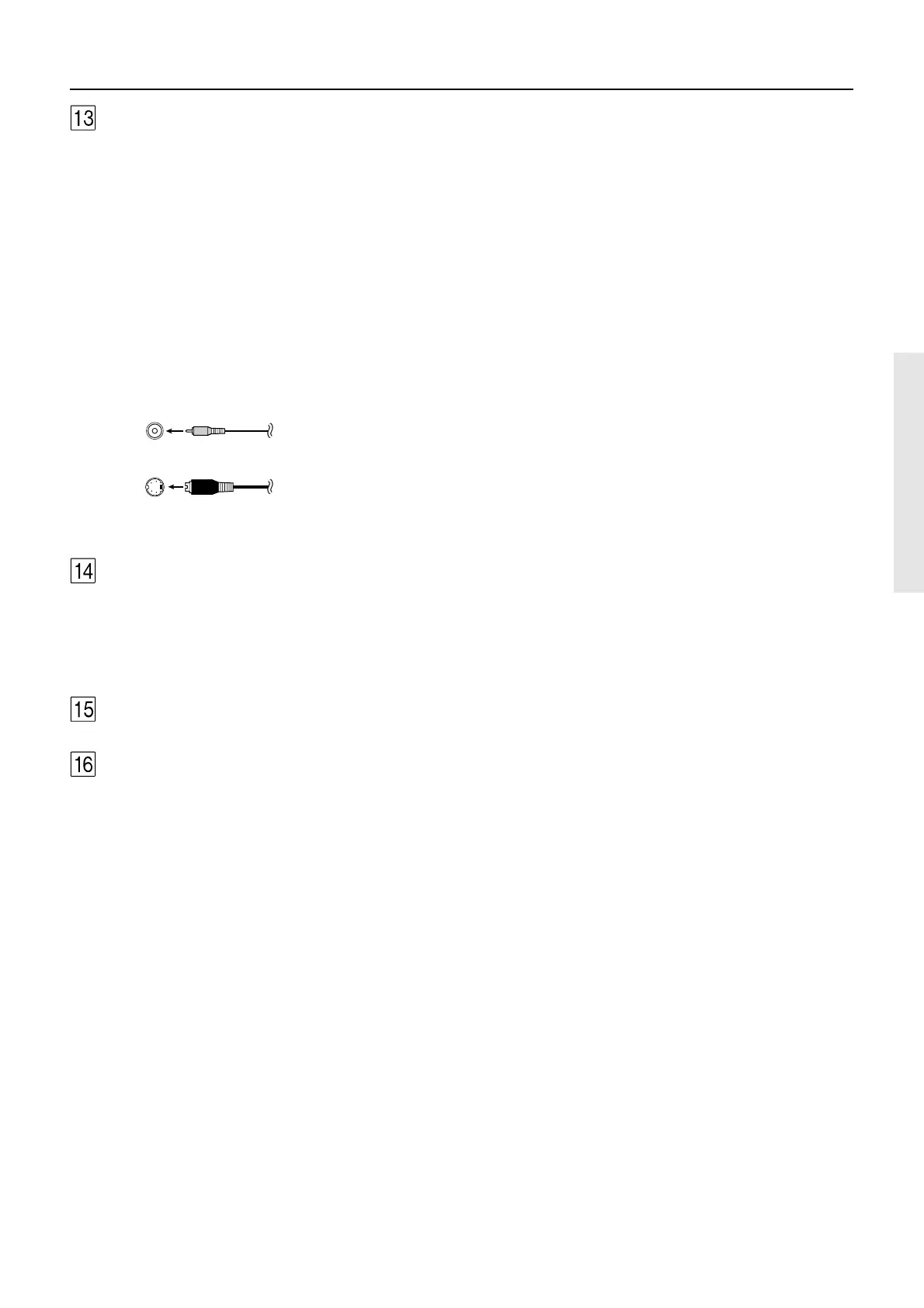

Composite
video jack
S video jack
VIDEO IN/OUT
These are the video inputs and outputs. On the rear panel, there are
4 video inputs and 2 video outputs and each one includes both
composite video and S video configurations. Connect VCRs, LD
players, DVD players, and other video components to the video
inputs.
The 2 video output channels can be used to be connected to video
tape recorders for making recordings.
• When connecting a VCR or other video component, make sure
you connect the audio and video leads together (i.e., both to
VIDEO 3).
• The VIDEO 4 inputs are located on the front panel.
