Onkyo TX-SR501E - Connecting a VCR for Playback; Video Connections; Audio Connections; Connecting a D-VHS Recorder

14

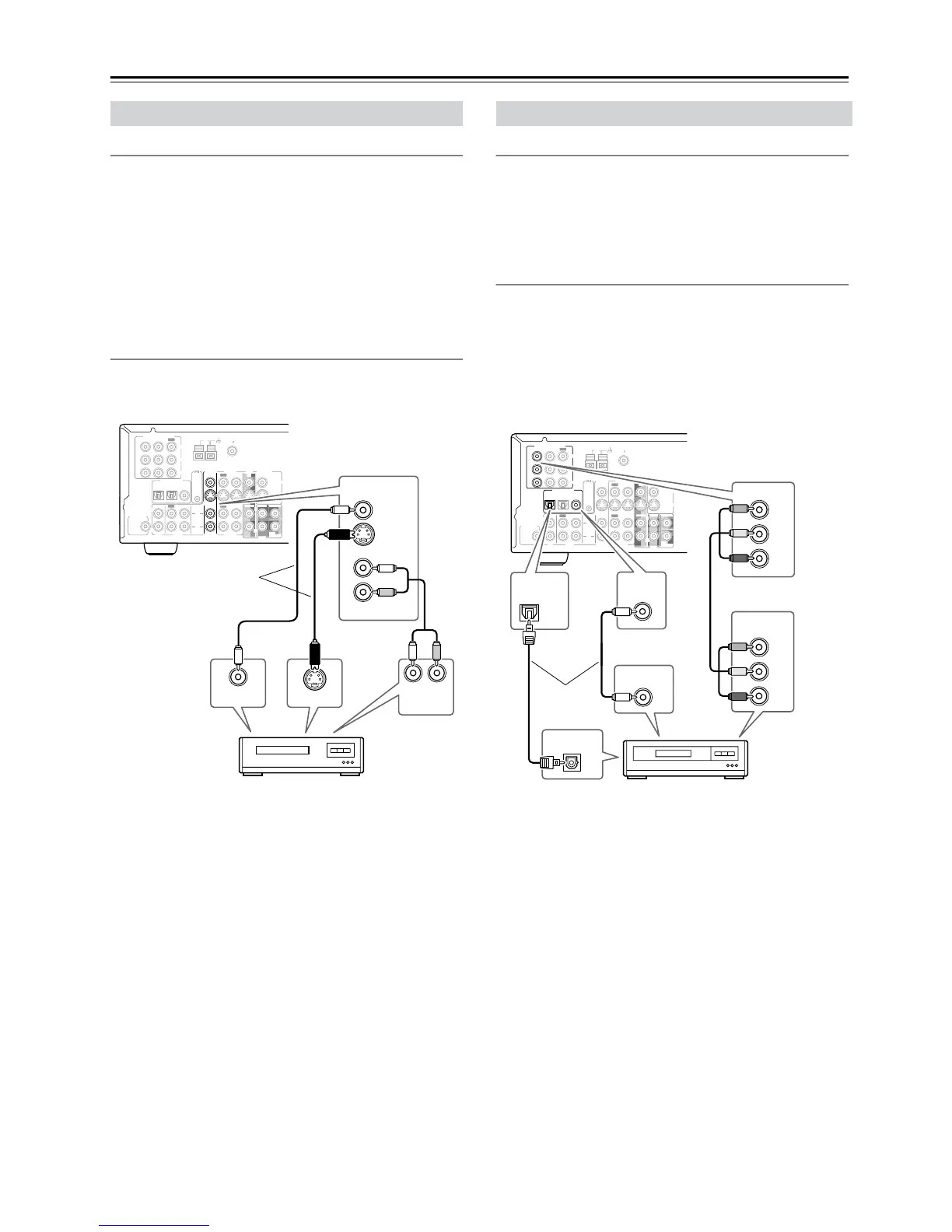

Connecting Your AV Components—Continued
Video Connections
• Use an S-Video cable to connect the TX-SR501/
TX-SR501E’s S VIDEO VIDEO 2 IN to the S-Video out-
put on your VCR, as shown. Your TV must also be con-
nected via S-Video.
OR
• Use a composite video cable to connect the TX-SR501/
TX-SR501E’s VIDEO VIDEO 2 IN to a composite video
output on your VCR, as shown. Your TV must also be con-
nected via composite video.
Audio Connections
Use an RCA/phono audio cable to connect the TX-SR501/
TX-SR501E’s L/R VIDEO 2 IN connectors to the analog
audio outputs on your VCR, as shown.
Video connections
Use a component video cable to connect the TX-SR501/
TX-SR501E’s COMPONENT VIDEO 1/2/3 IN connectors
to the component video outputs on your D-VHS recorder, as
shown.
•Your TV must also be connected via component video.
Audio connections
• Use a coaxial digital audio cable to connect the TX-SR501/
TX-SR501E’s COAXIAL DIGITAL INPUT to the coaxial
output on your D-VHS recorder, as shown.
OR
• Use an optical digital audio cable to connect the
TX-SR501/TX-SR501E’s OPTICAL 2 DIGITAL INPUT
to the optical output on your D-VHS recorder, as shown.
You may need to change the input source to digital input
assignments (see page 24).
Connecting a VCR for Playback
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL COAXIAL
12
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1 /2/3
IN
DVD IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
LR
IN
IN
VIDEO 2
VIDEO 2
VIDEO
S VIDEO
S VIDEO OUT
VIDEO OUT
AUDIO
OUTPUT
VCR
Connect one
or the other
Connecting a D-VHS Recorder
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL COAXIAL
12
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1 /2/3
IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
OPTICAL
2
VIDEO 1 /2/3
IN
Y
P
B
PR
COAXIAL
Y
P
B
PR
DIGITAL OUT
OPTICAL
DIGITAL OUT
COAXIAL
COMPONENT
VIDEO OUT
D-VHS recorder
Connect one
or the other
