Onkyo TX-SR501E - Connecting a VCR for Recording; Connecting a Camcorder, Games Console, etc.; Video Connections; Audio Connections

15

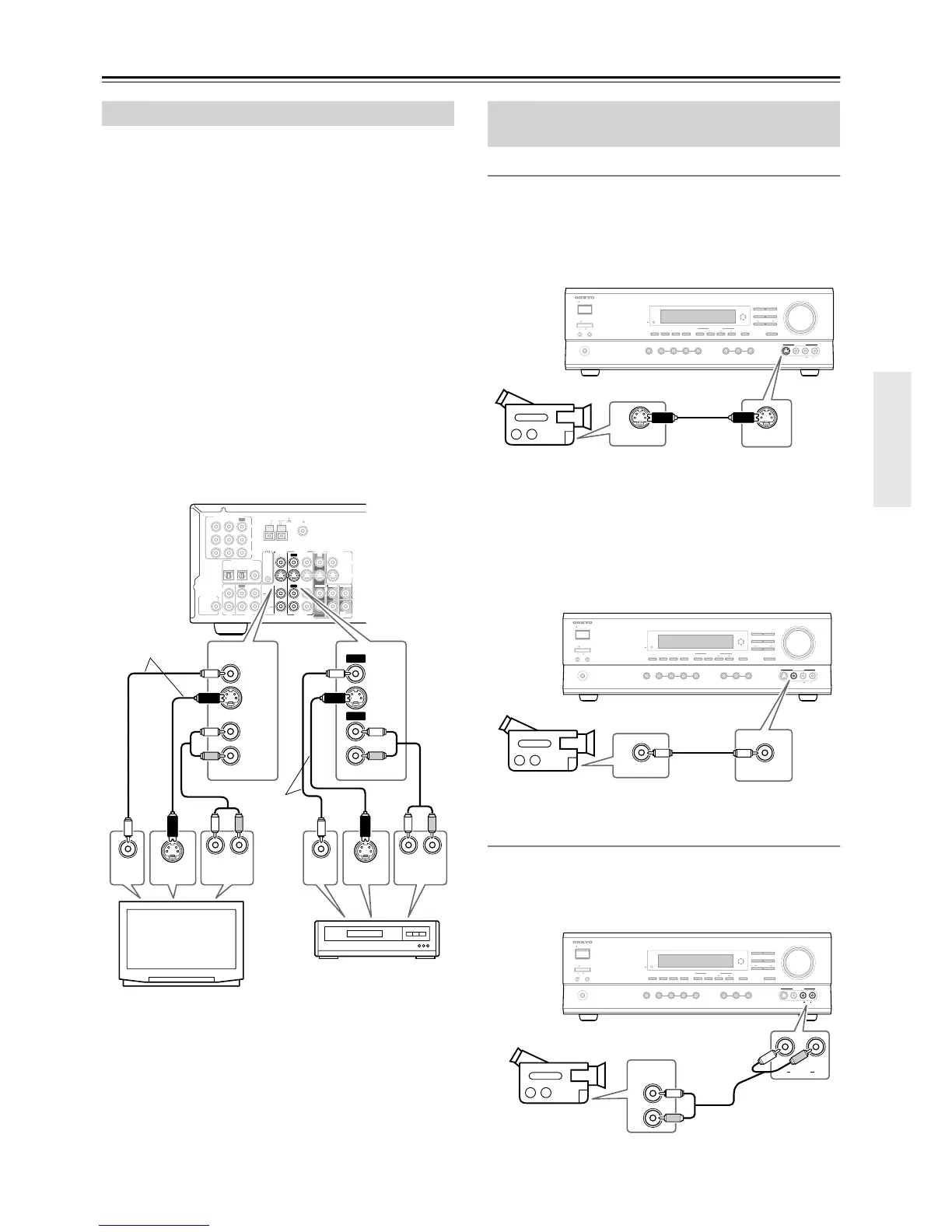

Connecting Your AV Components—Continued
If your TV has AV outputs and you want to record from your
TV to your VCR via the TX-SR501/TX-SR501E, make the
following connections.
• Use an S-Video cable to connect the TX-SR501/
TX-SR501E’s S VIDEO VIDEO 2 IN to an S-Video output
on your TV, and use another S-Video cable to connect the
TX-SR501/TX-SR501E’s S VIDEO VIDEO 1 OUT to an
S-Video input on your VCR, as shown.
OR
• Use a composite video cable to connect the TX-SR501/
TX-SR501E’s VIDEO VIDEO 2 IN to a composite video
output on your TV, and use another composite video cable
to connect the TX-SR501/TX-SR501E’s VIDEO VIDEO 1
OUT to a composite video input on your VCR, as shown.
Use an RCA/phono audio cable to connect the TX-SR501/
TX-SR501E’s L/R VIDEO 2 IN connectors to the analog
audio outputs on your TV, and use another RCA/phono audio
cable to connect the TX-SR501/TX-SR501E’s L/R VIDEO 1
OUT connectors to the analog audio inputs on your VCR, as
shown.
Note:
The TX-SR501/TX-SR501E must be turned on (not
Standby) in order to record.
If you want to record from your TV to your VCR without
going through the TX-SR501/TX-SR501E, connect your
TV’s AV outputs directly to your VCR’s AV inputs. See the
manuals supplied with your TV and VCR for details.
Video Connections
■ Using S-Video
Use an S-Video cable to connect the TX-SR501/
TX-SR501E’s S VIDEO VIDEO 3 INPUT to the S-Video
output on your camcorder, games console, etc., as shown.
•Your TV must also be connected via S-Video.
■ Using Composite Video
Use a composite video cable to connect the TX-SR501/
TX-SR501E’s VIDEO VIDEO 3 INPUT to the composite
video output on your camcorder, games console, etc., as
shown.
•Your TV must also be connected via composite video.
Audio Connections
Use an RCA/phono audio cable to connect the TX-SR501/
TX-SR501E’s L/R VIDEO 3 INPUT connectors to the ana-
log audio outputs on your camcorder, games console, etc., as
shown.
Connecting a VCR for Recording
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL COAXIAL
12
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1 /2/3
IN
DVD IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
LR
VIDEO 1
VIDEO
S VIDEO
VIDEO
S VIDEO
IN
IN
VIDEO 2
VIDEO 1VIDEO 2
LR
OUT
OUT
S VIDEO
OUT
VIDEO
OUT
AUDIO
OUTPUT
S VIDEO
IN
VIDEO
IN
AUDIO
INPUT
TV
VCR
Connect one
or the other
Connect one
or the other
Connecting a Camcorder, Games
Console, etc.
STANDBY/ON
PHONES
MASTER VOLUME
VIDEO
2
TAPE TUNER
C
D
VIDEO
3
DVD
DIMMER
SURROUND
VIDEO 1
VCR
AUDIO
SELECTOR
DSP
STEREO
STANDBY
DISPLAY
AUDIO ADJUST
SPEAKER ADJUST
SUBWOOFER
LEVEL CONTROL
SUBWOOFER
MODE
DIGITAL INPUT
CH SEL
DIRECT
S VIDEO AUDIO
VIDEO L R
LEVEL
ADJUST
VIDEO 3
INPUT
AB SPEAKERS
OFFON
POWER
S VIDEO
S VIDEO OUT
Camcorder,
games console, etc.
STANDBY/ON
PHONES
MASTER VOLUME
VIDEO
2
TAPE TUNER
C
D
VIDEO
3
DVD
DIMMER
SURROUND
VIDEO 1
VCR
AUDIO
SELECTOR
DSP
STEREO
STANDBY
DISPLAY
AUDIO ADJUST
SPEAKER ADJUST
SUBWOOFER
LEVEL CONTROL
SUBWOOFER
MODE
DIGITAL INPUT
CH SEL
DIRECT
S VIDEO AUDIO
VIDEO LR
LEVEL
ADJUST
VIDEO 3
INPUT
AB SPEAKERS
OFFON
POWER
VIDEO
VIDEO OUT
Camcorder,
games console, etc.
STANDBY/ON
OFFON
POWER
PHONES
MASTER VOLUME
VIDEO
2
TAPE TUNER
C
D
VIDEO
3
DVD
DIMMER
SURROUND
VIDEO 1
VCR
AUDIO
SELECTOR
DSP
STEREO
STANDBY
DISPLAY
AUDIO ADJUST
SPEAKER ADJUST
SUBWOOFER
LEVEL CONTROL
SUBWOOFER
MODE
DIGITAL INPUT
CH SEL
DIRECT
S VIDEO AUDIO
VIDEO LR
LEVEL
ADJUST
VIDEO 3
INPUT
L
R
AUDIO
LR
AUDIO
OUTPUT
AB SPEAKERS
Camcorder,
games console, etc.
