CAN DB9 option
The CAN port on Helix supports CAN2.0 A/B at baud rates from 100-1000 kbaud. The system CAN
port is not internally terminated, and a properly terminated ( 120 Ohms, typical ) cable should be used.
CAN messages may be sent and received through the sideband Programmable Services Engine, via
the Host Embedded Controller Interface (HECI). Windows drivers are available for this interface, and a
command line tool is available for download from our support website.
Pin
Signal
1
NC
2
CAN_L
3
GND
4
NC
5
NC
6
GND
7
CAN_H
8
NC
9
NC

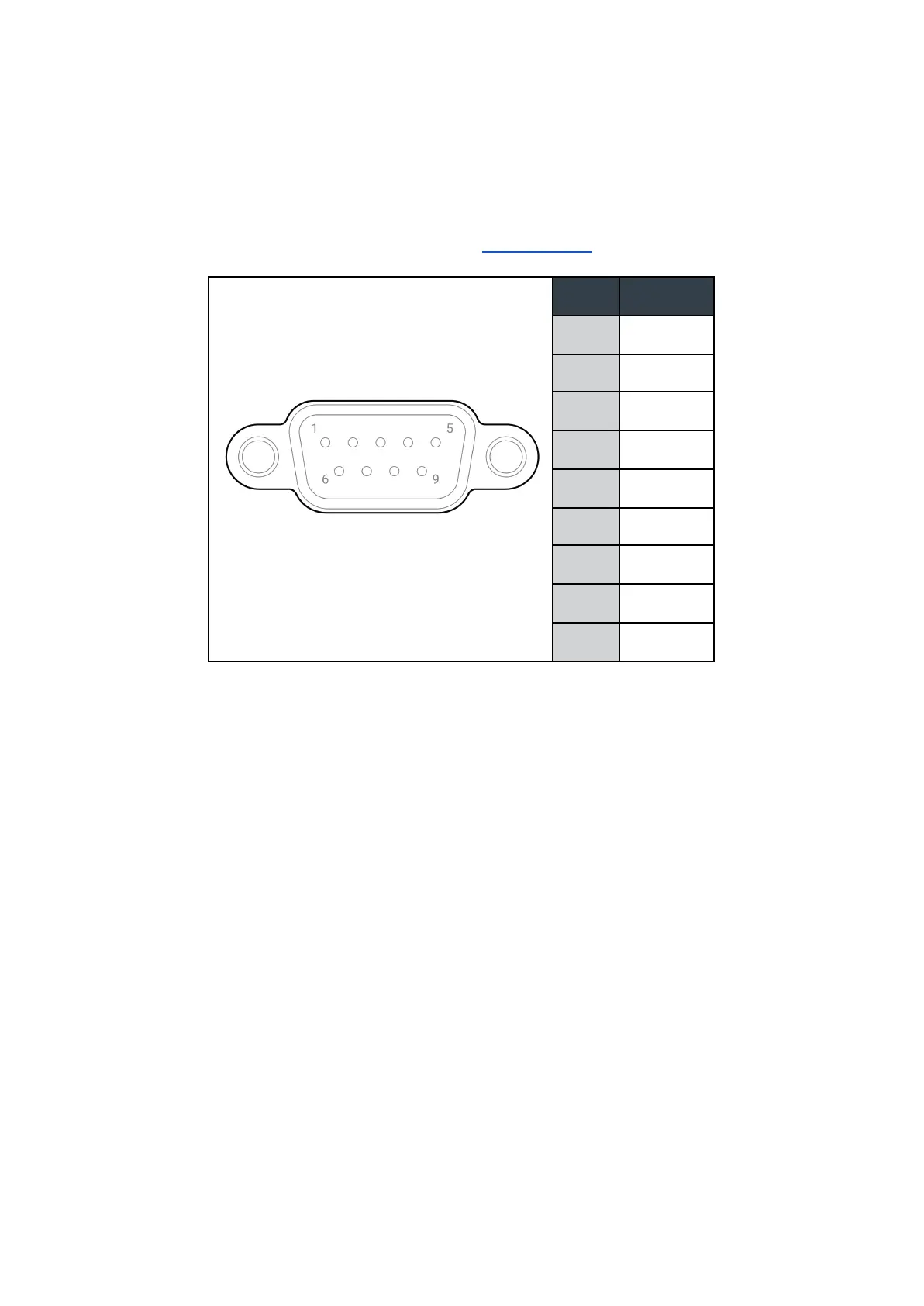

COM DB9 pinout
USB 3.2
There is one USB 3.2 Gen 2 port on the front panel of the Helix platform. This port is capable of linking
at 10Gb/s transfer rates.
USB 2.0
There is one USB 2.0 port on the front panel of the Helix platform. This port is capable of linking at
480 Mb/s transfer rates.
