3.1 - VESA Mounting

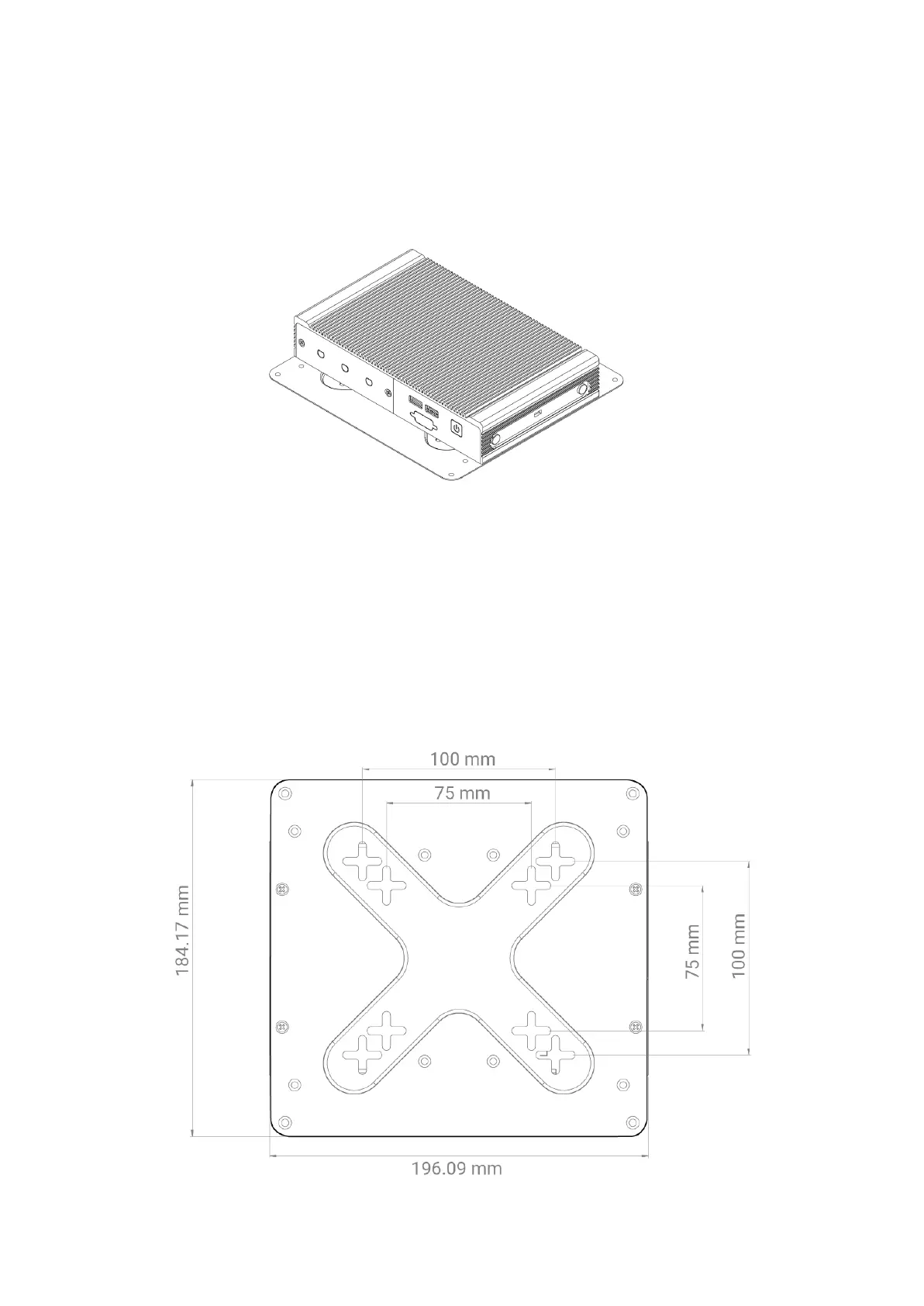

Step 1: Attach wall mounting brackets to the chassis using:
Screw type: M3X0.5 FH 120 Degree Screw
Length: 4 mm
Step 2: Locate the 4 holes that line up accordingly to the bracket as shown
Step 3: Fasten system to surface. The mounting bracket systems are required to secure 3x the
hanging weight of the computer system. The mating substrate must be capable of maintaining the
same rating.
