Onlogic HX310 - USB 2.0 Header; CEC Expansion Header

USB 2.0 Header
The on-board USB 2.0 header provides a single USB 2.0 signal. It utilizes a standard 4-pin 2.54mm
pitch male pin connector with the pin configuration in the chart below. The 5V power pin (Pin 1) can
provide up to 1A of current.
Pin
Function
1
5V
2
D0-
3
D0+
4
GND
5
Key

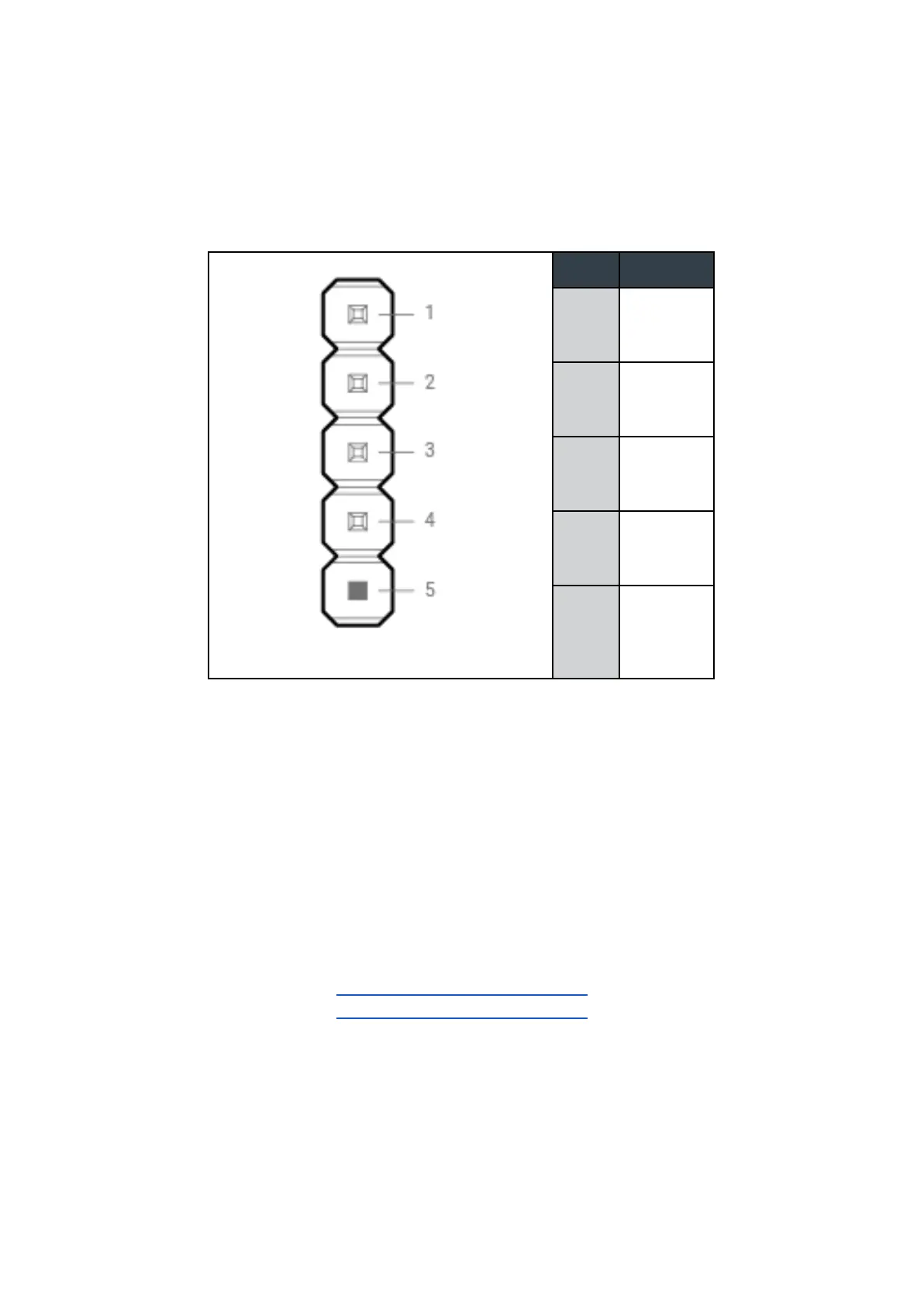

USB 2.0 header pinout
CEC Expansion Header
HDMI-CEC (Consumer Electronics Control) is a communication protocol supporting the control of
displays over an HDMI interface.
The Helix platform supports two-port CEC via the optional add-on module ADP107. For a full
description of supported features, refer to the ADP107 product manual located on the Helix platform
product pages.
https://www.onlogic.com/hx310/
https://www.onlogic.com/hx330/
23
