Onyx RCR V2.0 - Physical Dimensions

A
B
C
F
E
G
H
GENERAL INFORMATION
29

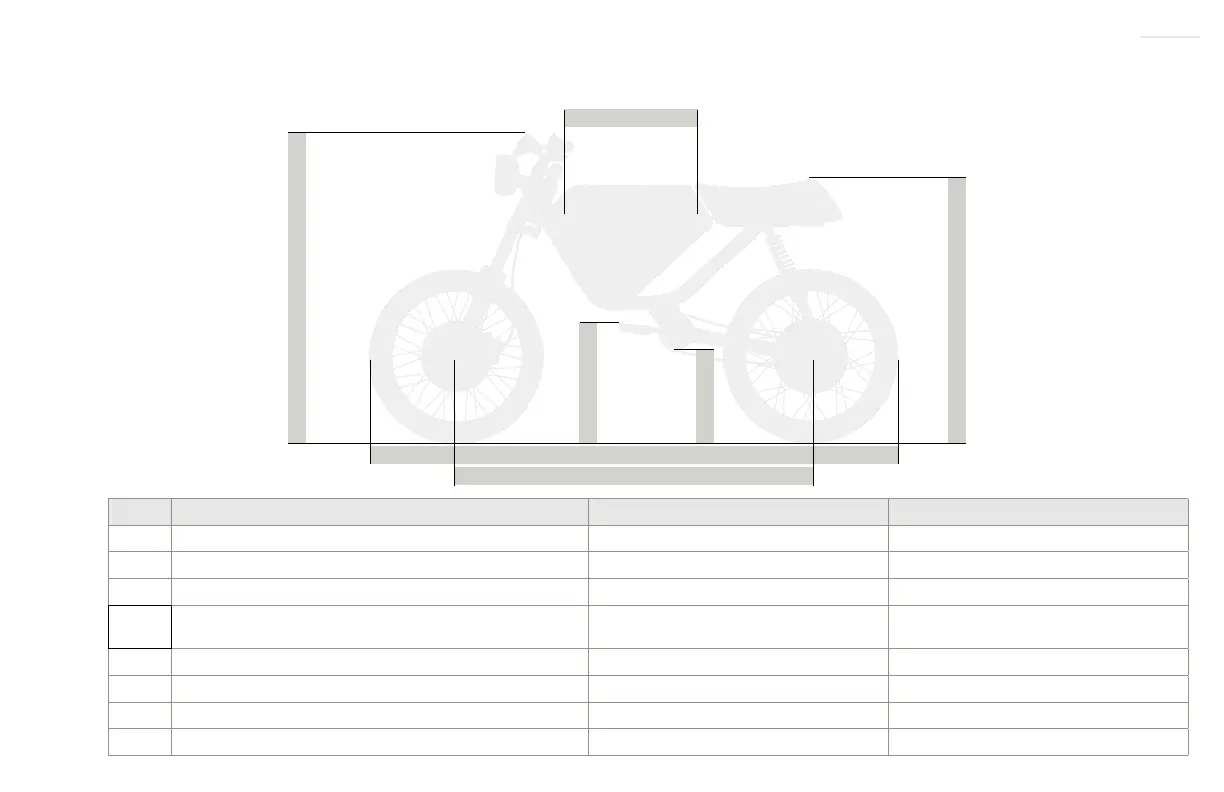

PHYSICAL DIMENSIONS
SPECIFICATION MEASUREMENT STANDARD RCR SUSPENSION MEASUREMENT “SHORT Y” RCR SUSPENSION
A Overall Length 68” 68”
B Wheelbase – Center to Center 44.5” 44.5”
C Overall Height – from Ground to Top of Display 39.25” 37. 2 5”
Not
shown
Handlebar Width – Brake Lever Tip to Tip
(Grip End to Grip End)
27”
(25”)
27”
(25”)
E Ground Clearance – Ground to Bottom of Chain Ring 10.5” 8.5”
F Pedal Shaft Clearance – Ground to Center of Shaft 13.5” 11.5”
G Seat Height – Ground to Top of Seat 32” 30”
H Handlebar Reach Distance – from End of Seat to Grips 15” 15”
