WIRING THE CORE SERIES 12/24V 8-DOOR SMART HUB
The Core Series 12/24V 8-Door Smart Hub (8ENT-SYS-1224V) uses an FPV6 to power
the Core and 8-Port Board, a B100 secondary power supply, and a C8 Control Module
to power 12-24V locking hardware.

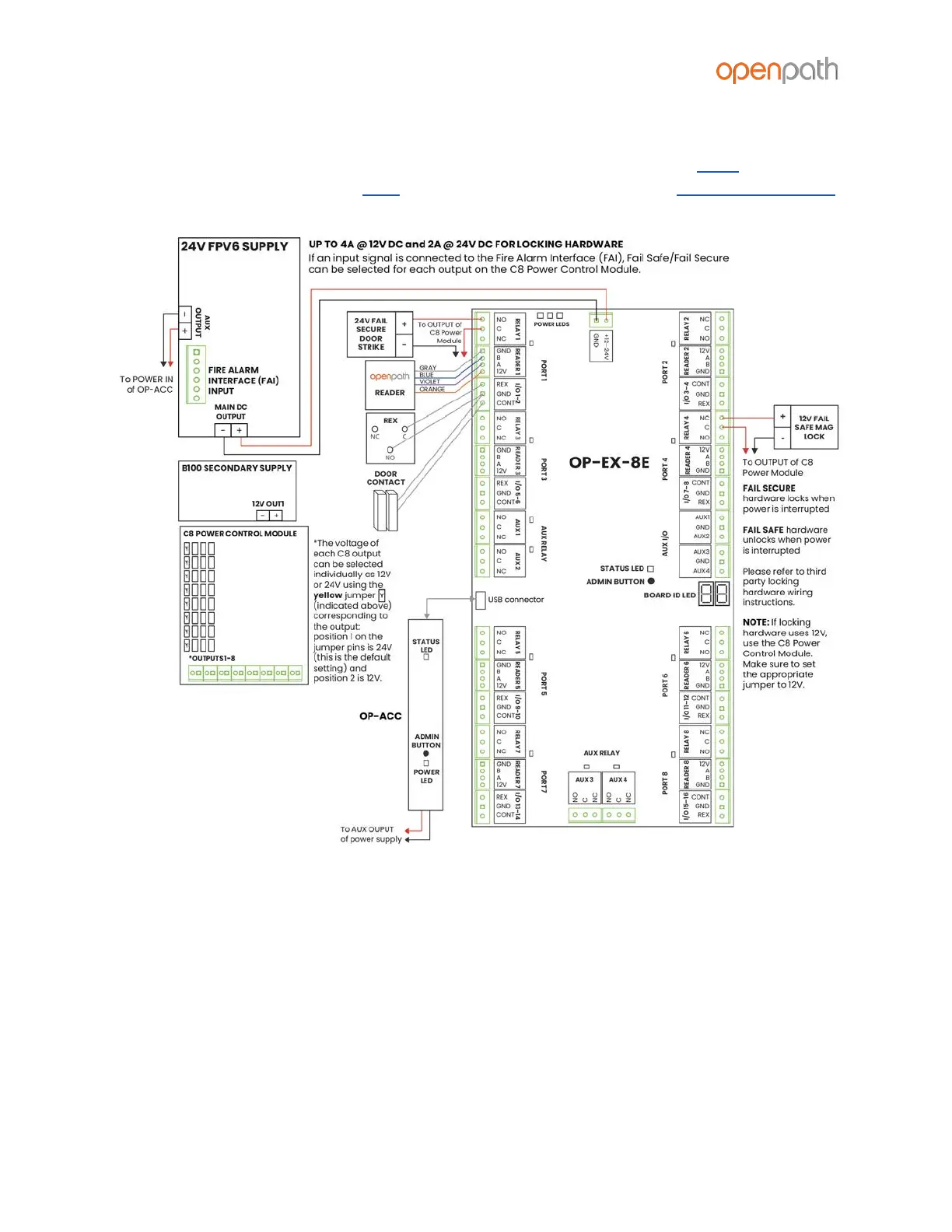

Figure 11: 8ENT-SYS-1224V Wiring Diagram
