Openpath ACCESS CONTROL SYSTEM - WIRING THE REX WITH THE DOOR STRIKE

WIRING THE REX WITH THE DOOR STRIKE
Except where required by fire or safety codes, for convenience you can wire the REX
in parallel with the door strike on the same relay output.

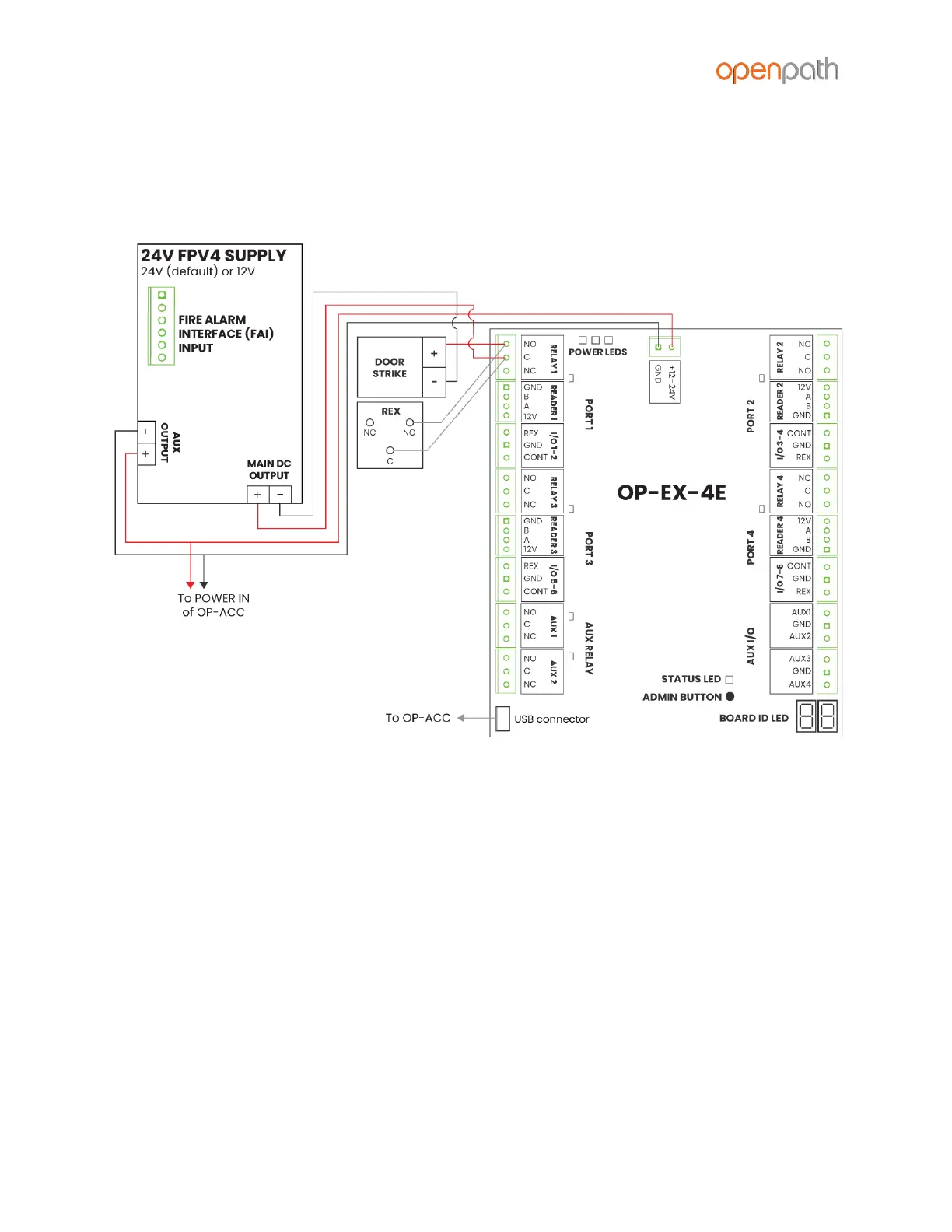

Figure 12: Wiring the REX with the Door Strike
