WIRING THE REX WITH THE ELECTROMAGNETIC LOCK
For safety-related applications, you must wire the REX directly to the electromagnetic
lock.

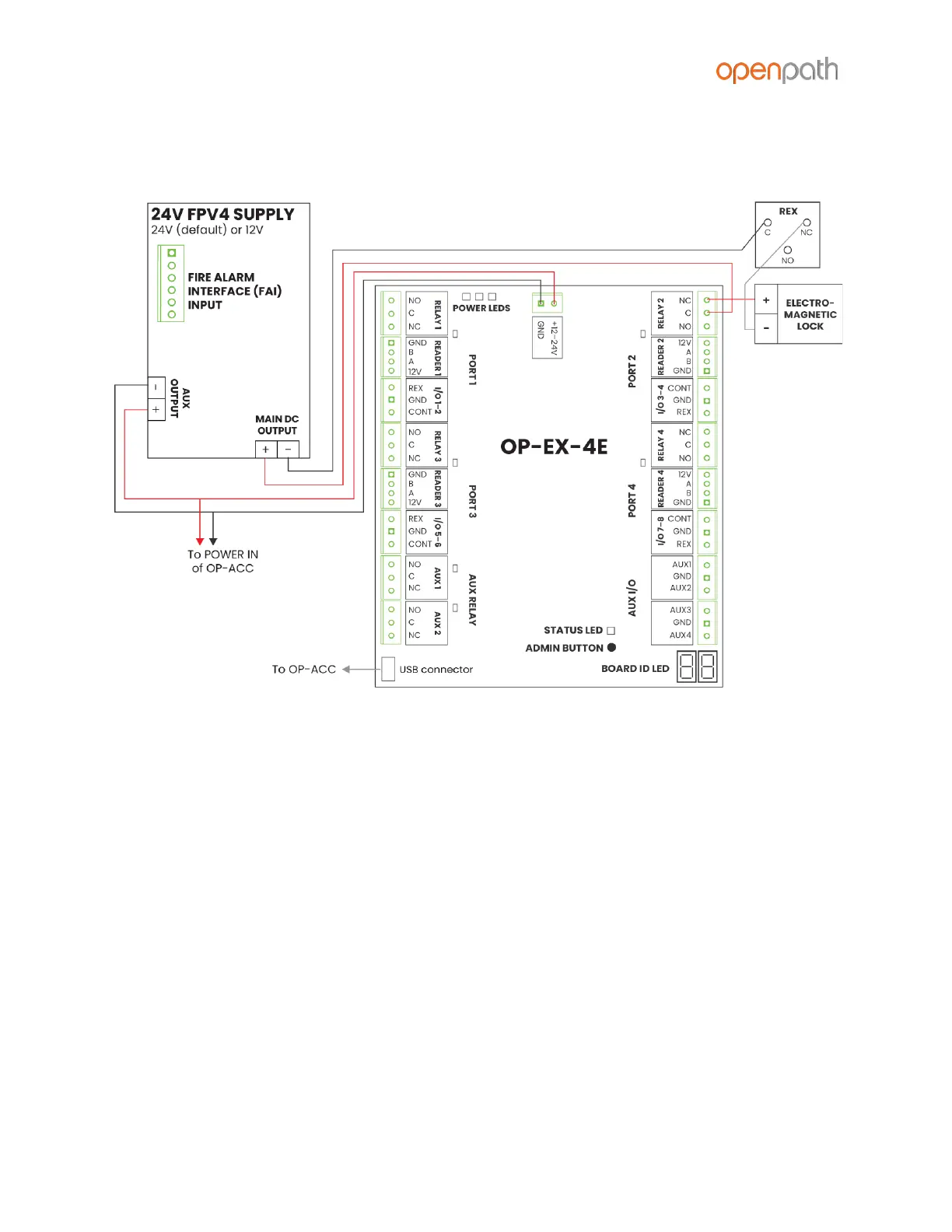

Figure 13: Wiring the REX with the Mag Lock
Version 1.9
© Openpath 2021
Page 18
