Openpath ACCESS CONTROL SYSTEM - WIRING THE 4 DOOR CONTROLLER TO LEGACY PANELS

WIRING THE 4 DOOR CONTROLLER TO LEGACY PANELS

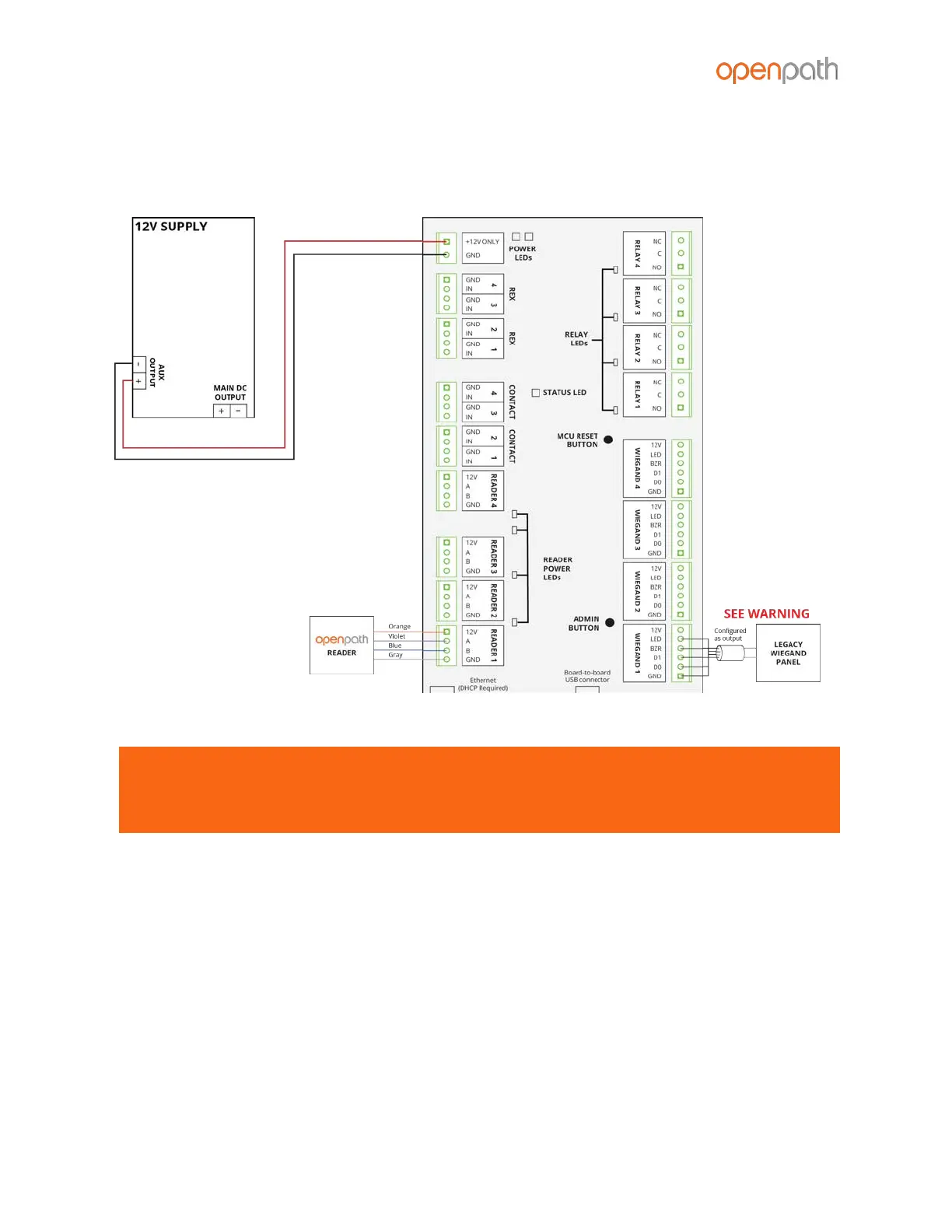

Figure 28: Wiring to Legacy Panels
WARNING: Do not connect 12V out on the Wiegand port to the legacy panel;
doing this will cause voltage backfeeding, potentially damaging one of the
supplies.
