GETTING STARTED
8

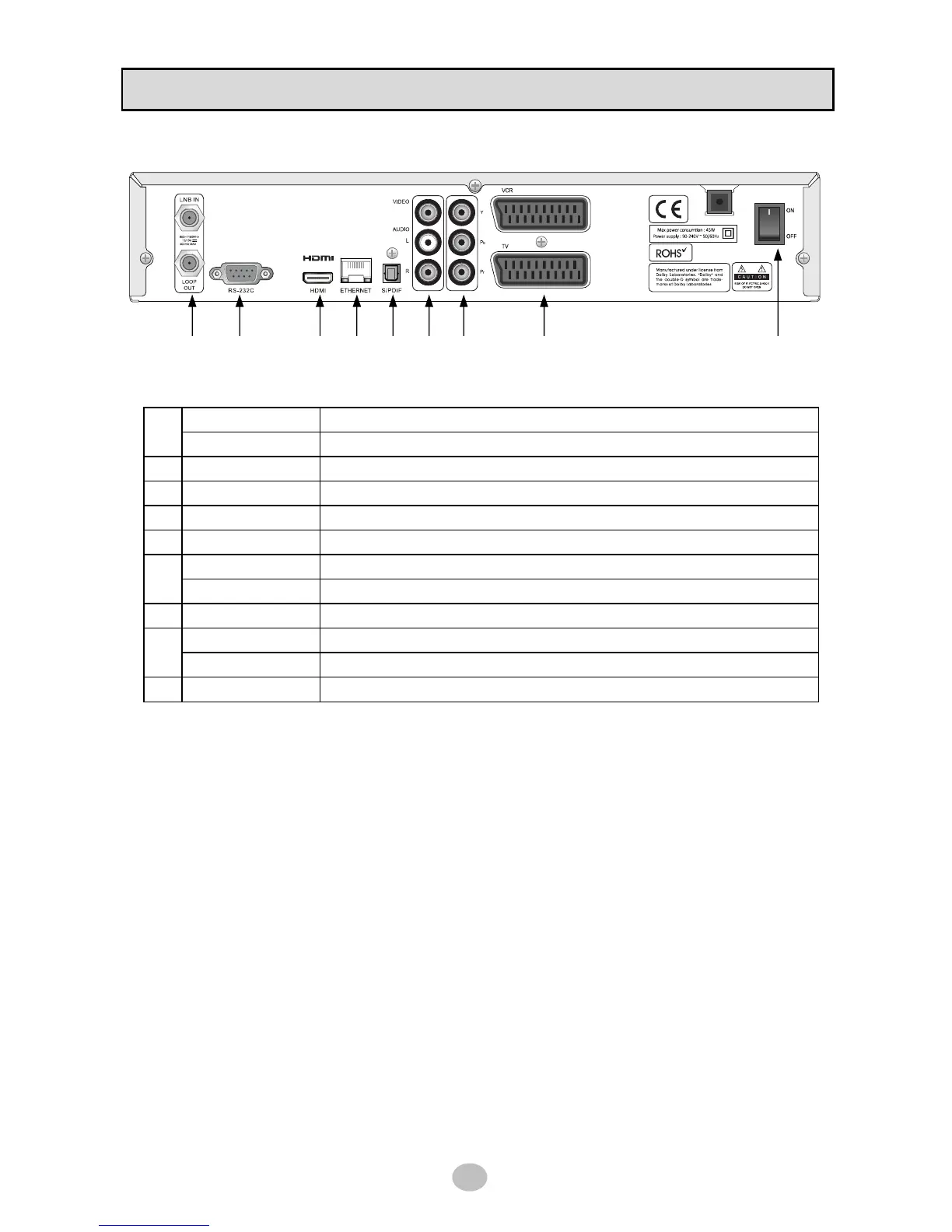

1.3 Rear panel
LNB IN Connect satellite antenna cable
1
LOOP OUT Connect to another STB (LNB IN)
2 RS-232C Connect to PC for S/W update
3 HDMI Connect to TV
4 RJ-45 Connect ethernet cable
5 S/PDIF Optical digital audio output
VIDEO Composite video output
6
AUDIO (L/R) Stereo audio output
7 YPbPr Component output. Connect to TV
TV SCART Connect to TV
8
VCR SCART Connect to VCR
9 POWER SWITCH AC Power ON/OFF switch
1 2
3 4
5 6 7 8 9
