SPRING LATCH REVERSIBILITY (ITEM 25900 / 25910 ONLY)
Reversibility supported only by items 25900 and 25910 with
25-30-35 mm backsets. The 60 mm backset version and the Prima OP series
shall necessairily be ordered either in the left or right hand version.

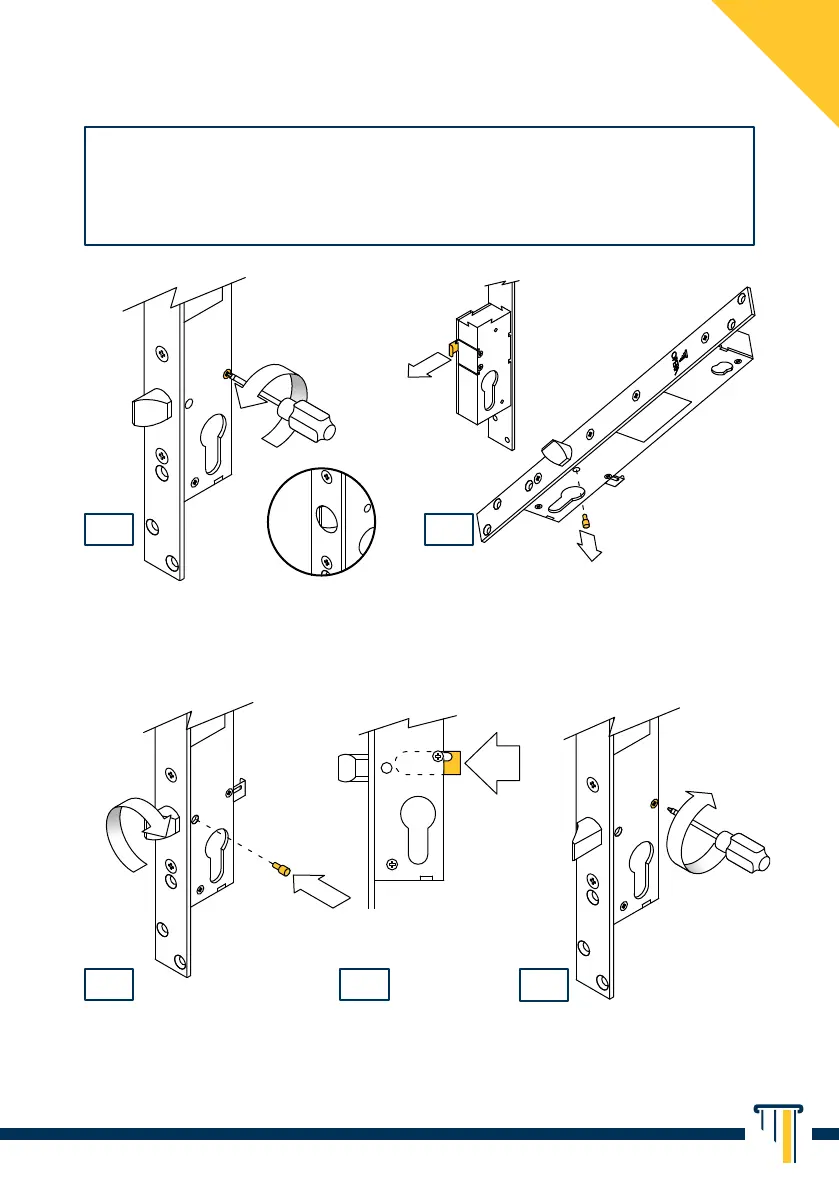

(1) Loosen the retaining screw
(Torx M3x5) with a screwdriver.
(3) Turn the spring latch 180° and reinsert the guide pin into the hole.
(4) Close the tab, then (5) tighten the retaining screw.
(2) Pull out the tab and turn the solenoid
bolt upside down to extract the pin.
Item 25900: press lightly on the spring
latch to ease the pin out.
25900
25910
1 2
3 4
5
