INSTALLATION
CAUTION : do not �le or drill holes in the �xture with the solenoid bolt
installed. Do not use the solenoid bolt as a drilling template. Risk of
damage or jamming of the internal mechanics due to dust and/or shavings.
Do not weld or solder the striking plate to the door frame.
Do not use non-direct connection systems (eg. spring contacts) to pass the
connecting wires through: use a cable cover (e.g. item 08600).
20
4.5
4.5
4.5
150
12
12
55
35
45

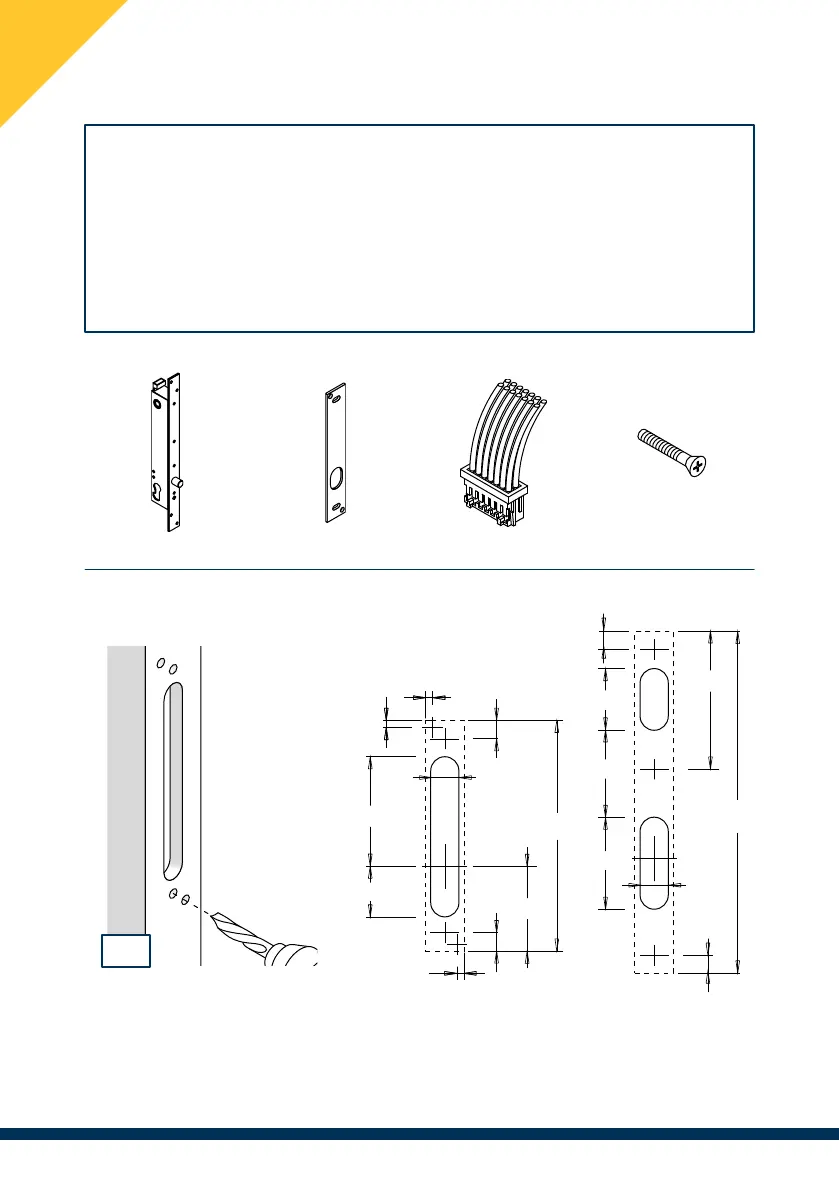

Drilling dimensions for striking plates
Supplied in package (standard)
1
(1) Drill holes for inserting the striking plate according to the diagram shown here.
The striking plate is essential for the operation of the solenoid lock.
Solenoid lock Striking plate Connector Cylinder screw
26
440
230
10
10
60
125
50
PRIMA /
PRIMA OP /
CLASSICA
PRIMA MAXI
