Four additional E-Stop buttons are located on both sides of the delivery bin
modules. Side 100 (left) is closest to the conveyor; side 200 (right) is the far
side (see Figure 2-4). At the front left side, the E-Stop is before the first delivery
column. On the front right side, the E-Stop is located on the Reject bin
enclosure. At the back of the machine, there is an E-Stop on each side after
the last delivery column.

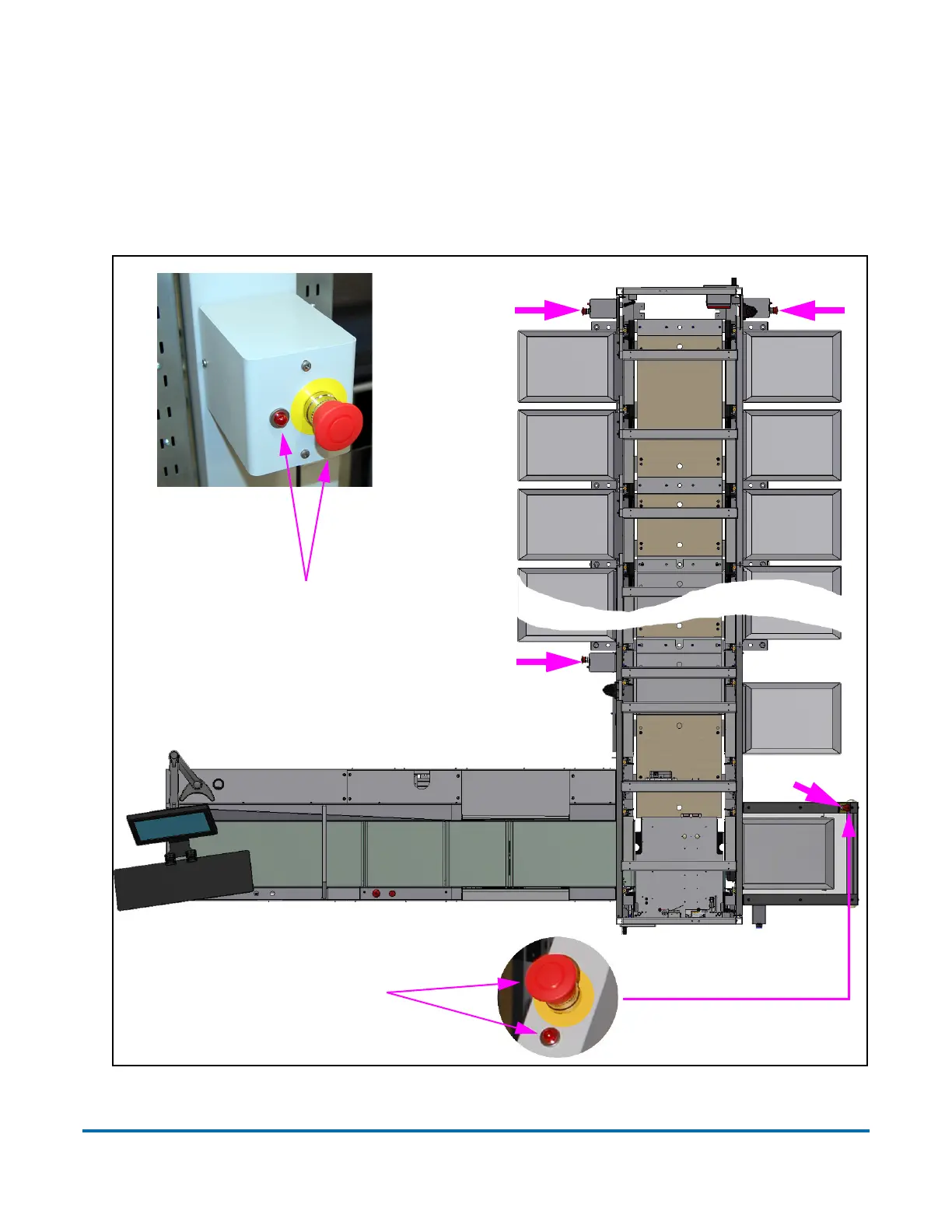

Figure 2-4: Stacker E-Stop locations
Rear Door
E-Stop button with red
activation indicator light
Side 200 front (reject bin enclosure):
(box mounted) E-Stop button
with red activation indicator light
Side 100 rear
Side 100 front & rear, Side 200 rear:
Side 200
Side 100 front
Side 200
rear
front
