96 Overview
Sure Sort™ Operator Manual
OPEX Corporation
3.3.6. Stop Light feature
The optional stop light feature provides up to four LED rings per column at the
top of the machine that will light up to notify operators if a bin needs attention.
Each light ring is made up of 12 LEDs. Each light ring relates to a bin; the top
ring will be for the top bin, second ring for the second bin, third ring for third bin,
and if applicable, fourth ring for the fourth bin. In the example shown in
Figure 3-11, only three bins per column were used, so the fourth light ring is
disabled.

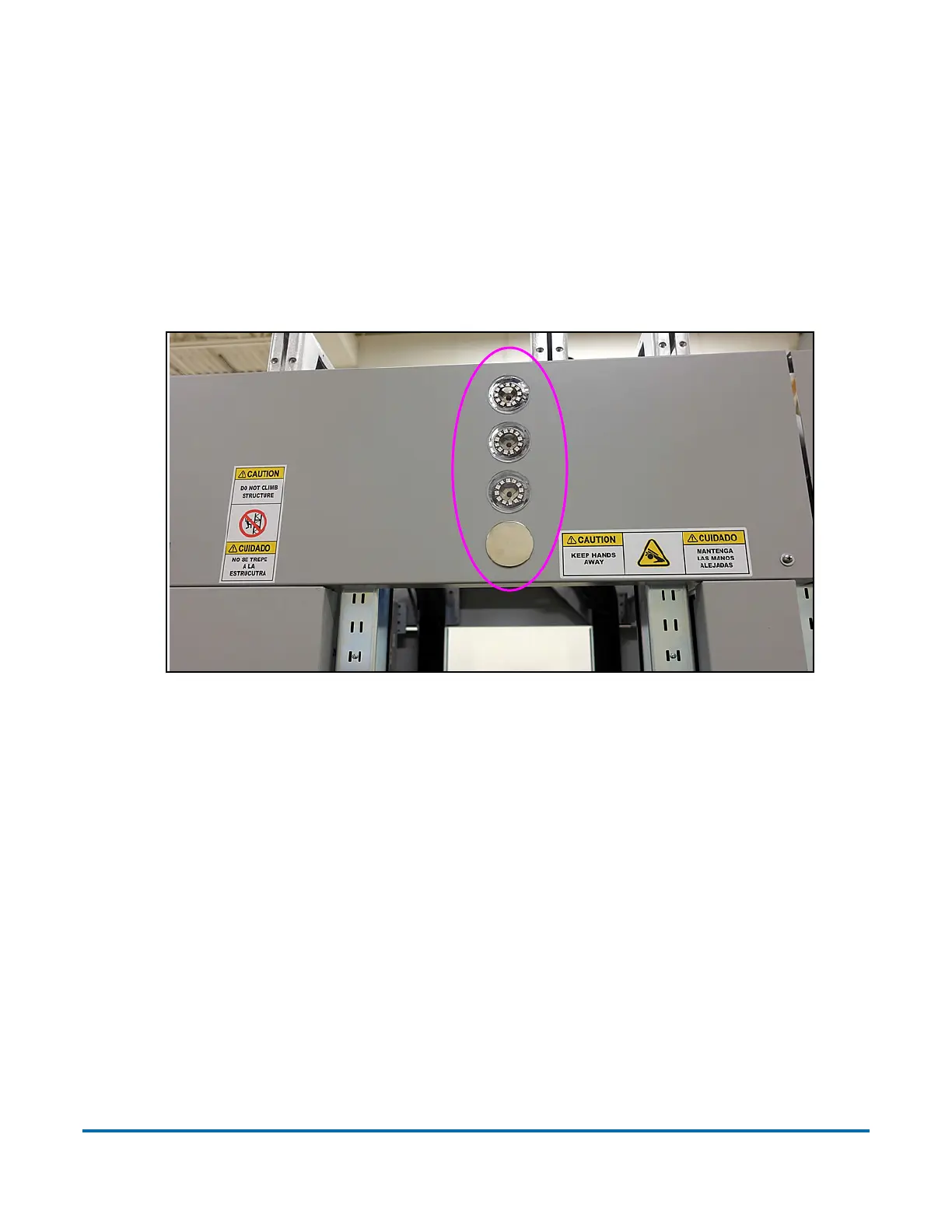

Figure 3-11: Stop Light Feature
