102 Overview
Sure Sort™ Operator Manual
OPEX Corporation
3.7. Electrical Requirements - Europe (EU)
European Sure Sort units require an AC line voltage of 230 VAC, 1-phase, 50
Hz (Line + Neutral + Protective Earth).
• Line to Neutral voltage = 230VAC +10%/-10%
The machine is supplied with a 15 ft. (4.57 m) length of 10/3 HAR Cord with an
IEC 309 Pin type plug (Walther Electric #230306), connected to the AC
distribution enclosure of the Induct conveyor module.
The customer must provide a 32 Amp maximum circuit breaker-protected
circuit.
For plug and receptacle installations, use an IEC 309 Sleeve type receptacle
(Walther Electric #330306 or equivalent) See European (EU) plug and
receptacle diagram in Figure 3-14.
For hard-wired installations, remove the supplied plug and wire directly to a
disconnect switch that meets local electrical codes.

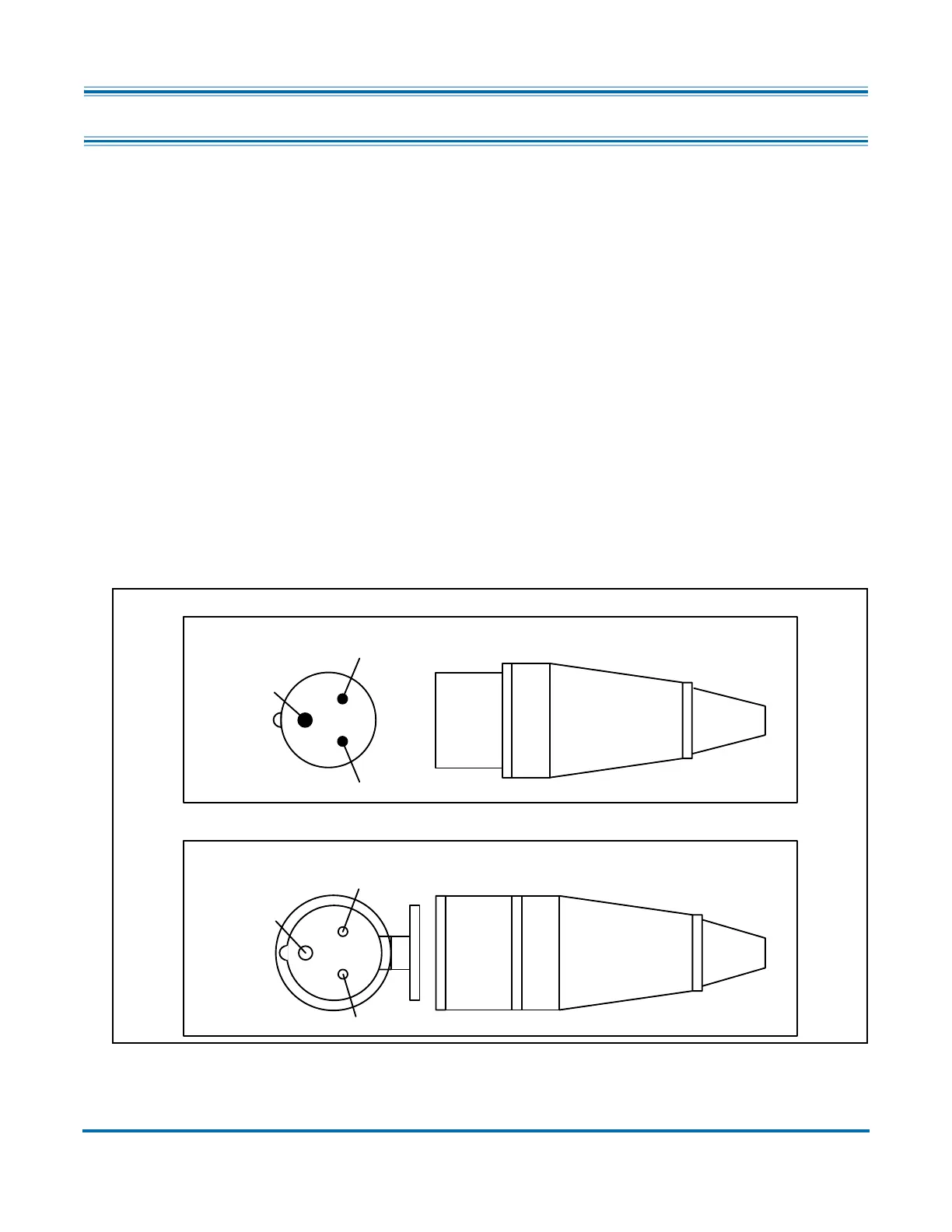

Figure 3-14: European (EU) plug and receptacle requirements
IEC 309 SLEEVE TYPE, 32A (WALTHER ELECTRIC #330306 OR EQUIVALENT)
IEC 309 PIN TYPE, 32A (WALTHER ELECTRIC #230306)
GRN/YEL
GRN/YEL
BRN
BLU
BRN
BLU
FEMALE RECEPTACLE (SITE SIDE-CUSTOMER SUPPLIED)
MALE PLUG (MACHINE SIDE)
