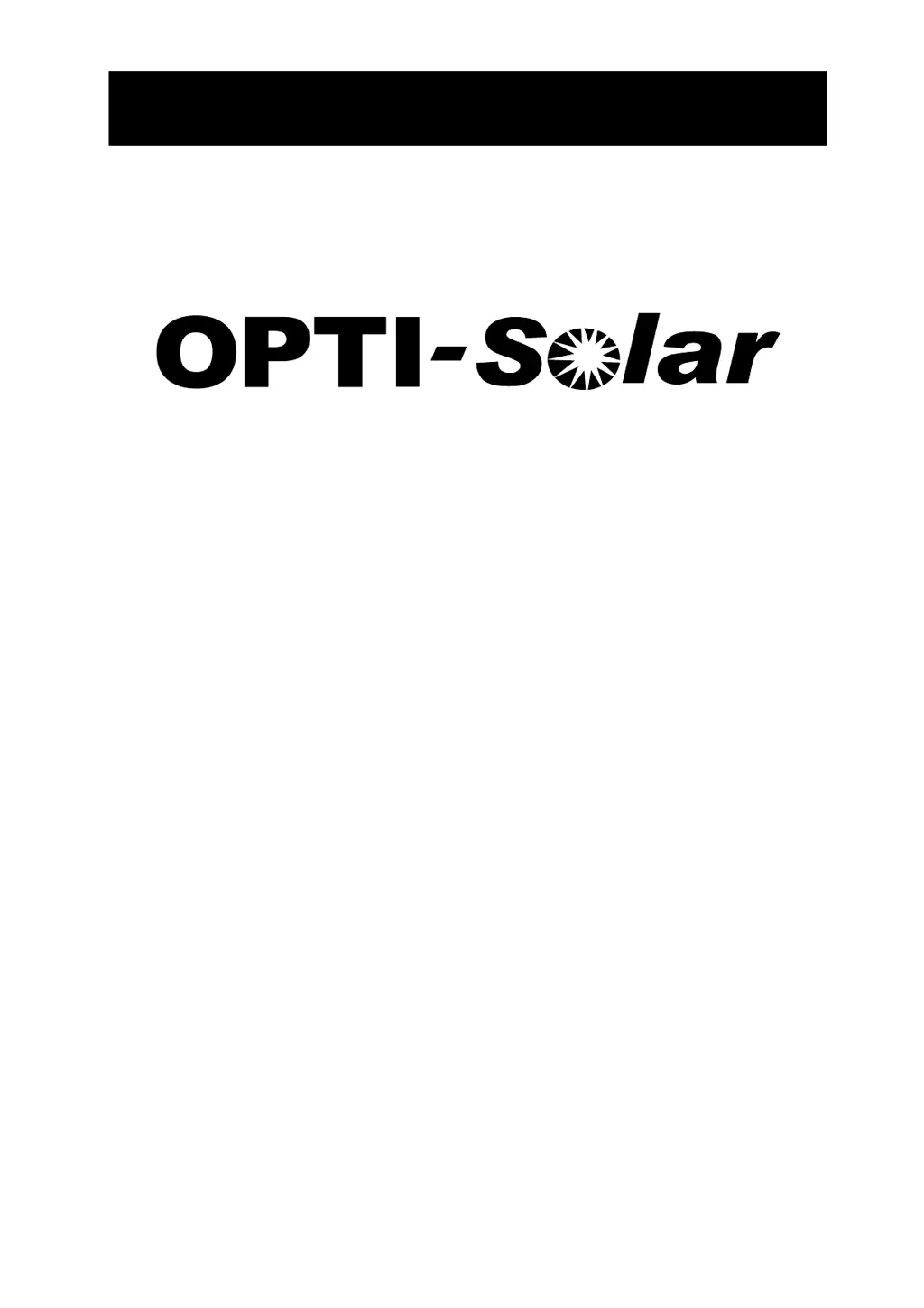

opti-solar SP Handy Grid Series - User Manual

61 pages

Save Page as PDF

Questions and Answers

T
Tammy HuffAug 5, 2025
What to do if opti-solar Inverter buzzer beeps and red LED is on?
- X
  xharringtonAug 5, 2025
  If the buzzer beeps continuously and the red LED is on in your opti-solar Inverter, several issues could be the cause. It might be due to an overload error (the inverter is overload 110%), in which case you should reduce the connected load by switching off some equipment. Another reason could be an output short circuit, so you should check if the wiring is connected well and remove any abnormal load. Also, this might be due to the temperature of an internal converter component being over 120°C, so ensure the unit's airflow isn't blocked and the ambient temperature isn't too high. If the battery is connected well, please return to repair center.
B
Brian WoodAug 11, 2025
Why does my opti-solar Inverter work in battery mode when mains exist?
- B
  Brian MartinezAug 11, 2025
  If your opti-solar Inverter continues to operate in battery mode even when mains power is available, the input protector may have tripped. Check if the AC breaker is tripped and ensure the AC wiring is properly connected. The issue might also stem from insufficient AC power quality, particularly with shore or generator power. Verify that the AC wires are not too thin or excessively long. You could also change output source priority to Utility first.
J
Jason ParkerAug 16, 2025
What to do if opti-solar Inverter has no response after power on?
- S
  Stephanie HuangAug 16, 2025
  If your opti-solar Inverter doesn't respond after powering on, it could be due to very low battery voltage (less than 1.4V/Cell). Check that the batteries and wiring are properly connected. Another potential cause is reversed battery polarity, in which case you should re-charge the battery. If these steps don't resolve the issue, consider replacing the battery.
A
Alice HowardAug 22, 2025
Why does my opti-solar Inverter shut down automatically during startup?
- C
  Corey HesterAug 23, 2025
  If your opti-solar Inverter shuts down automatically during startup, it's possible that the battery voltage is too low (less than 1.91V/Cell). Try re-charging the battery. If the problem persists, the battery may need to be replaced.
Z
zachary37Aug 29, 2025
How to fix opti-solar Inverter internal relay switching on and off repeatedly?
- J
  jessicaanthonyAug 29, 2025
  If the internal relay in your opti-solar Inverter switches on and off repeatedly when you turn it on, the battery might be disconnected. Check to ensure that the battery wires are securely connected.

Summary

Manual Overview and Safety

About This Manual

Details the manual's purpose, scope, and general information for users.

Safety Instructions and Warnings

Lists critical safety guidelines, warnings, and precautions for installation and operation.

Product Introduction and Installation

Introduction to the Hybrid PV Inverter

Explains the inverter's function and provides a basic hybrid PV system overview.

Product Overview and Installation Steps

Details inverter components, unpacking, preparation, and mounting procedures.

Electrical Connections

Battery, AC, and PV Connections

Guides for connecting battery, AC power input/output, and PV modules.

Communication and Dry Contact Connections

Covers serial, Wi-Fi setup, and dry contact signal usage.

Operation and System Settings

Operation, Display, and Modes

Covers power control, panel overview, LCD icons, and operating modes.

LCD Settings and Configuration

Details inverter configuration options via LCD programs for various functions.

Error Handling and Specifications

Warning and Fault Codes

Lists warning/fault codes and provides troubleshooting guidance.

Technical Specifications

Provides detailed technical data and performance parameters for the inverter.

Appendices

Appendix I: Parallel Function

Information and steps for connecting multiple inverters in parallel.

Appendix II: BMS Communication Installation

Guide for connecting and configuring lithium batteries via BMS.

Appendix III: Approximate Back-up Time Table

Estimates battery backup duration based on load and capacity.

Appendix IV: Wi-Fi Operation Guide

Instructions for remote monitoring using the Wi-Fi module and app.

opti-solar SP Handy Grid Series Specifications

General

Brand	opti-solar
Model	SP Handy Grid Series
Category	Inverter
Language	English
