Opticon OPC-3301i - Pitch, Skew and Tilt; Curvature

OPC-3301i
Specifications Manual
10
8.6. Pitch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±65°
Dead zone : β = ±8°
Tilt : γ = ±25°
<Conditions>
Bar code
: JAN (resolution 0.33 mm) specified in Chapter 8.1
Distance : 72 mm from the front edge of the scanner
Curvature : R = ∞
Angle : Pitch β = +15°, γ = 0°
Skew, Dead zone α = 0°, γ = 0°
Tilt α = 0°, β = +15°
α
β
γ
+
+
+
-
-
-

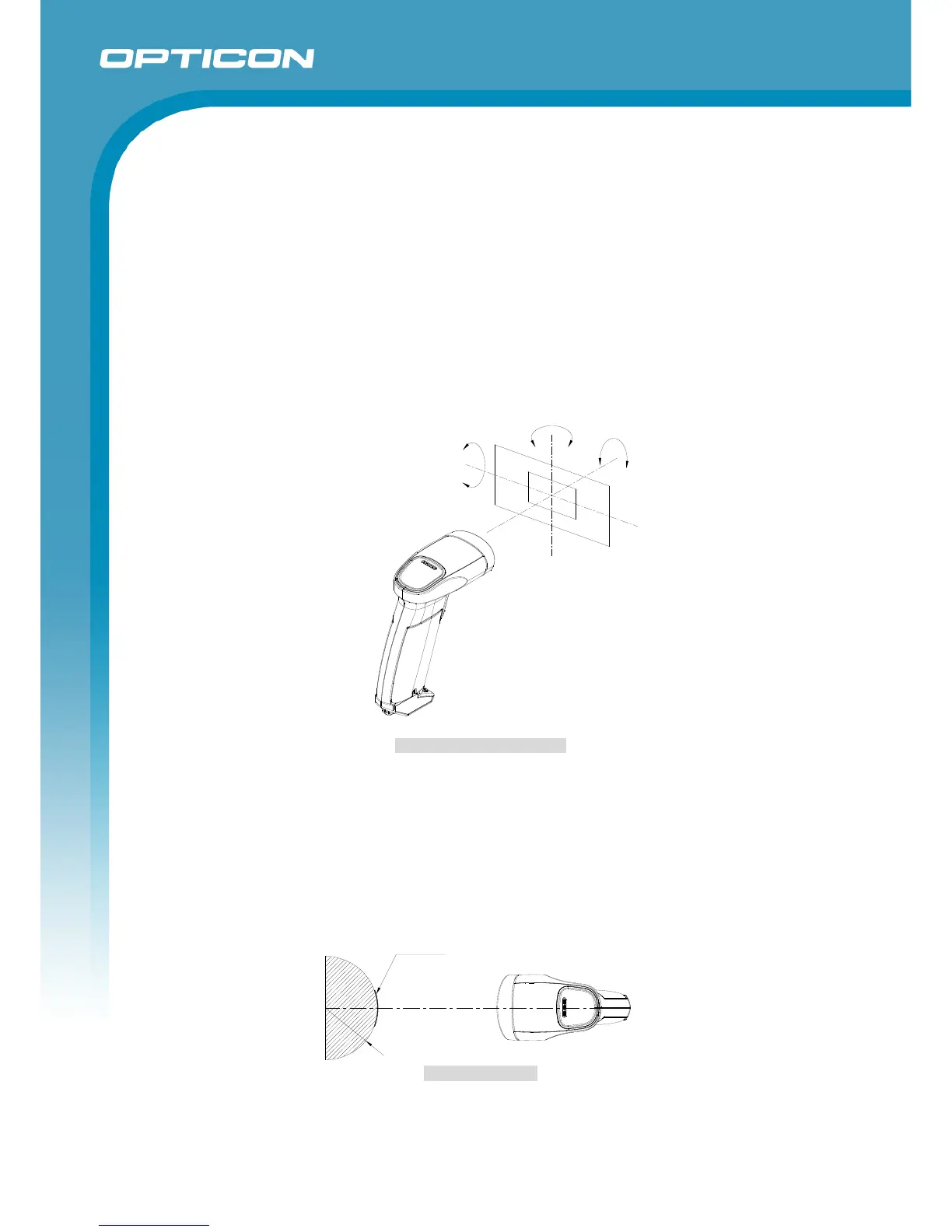

Figure 5: Pitch, Skew and Tilt
8.7. Curvature
0.26 mm 8-digit JAN : R ≥ 15 mm
0.26 mm 13-digit JAN : R ≥ 20 mm
<Conditions>
Bar code
: JAN (resolution 0.26 mm) specified in Section 8.1.
Distance : 127 mm from the front edge of the scanner
Angle : α = 0°, β = +15°, γ = 0°
R
Bar code
Figure 6: Curvature
* The reading characteristics may deteriorate due to the specular reflection of LED illumination when the
reflectivity is high.
