OPC-3301i
Specifications Manual
14
9.6. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test:
Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6 m/s
2
(2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.
9.7. Drop Impact Strength (without packaging)
There shall be no sign of malfunction after the following drop test.

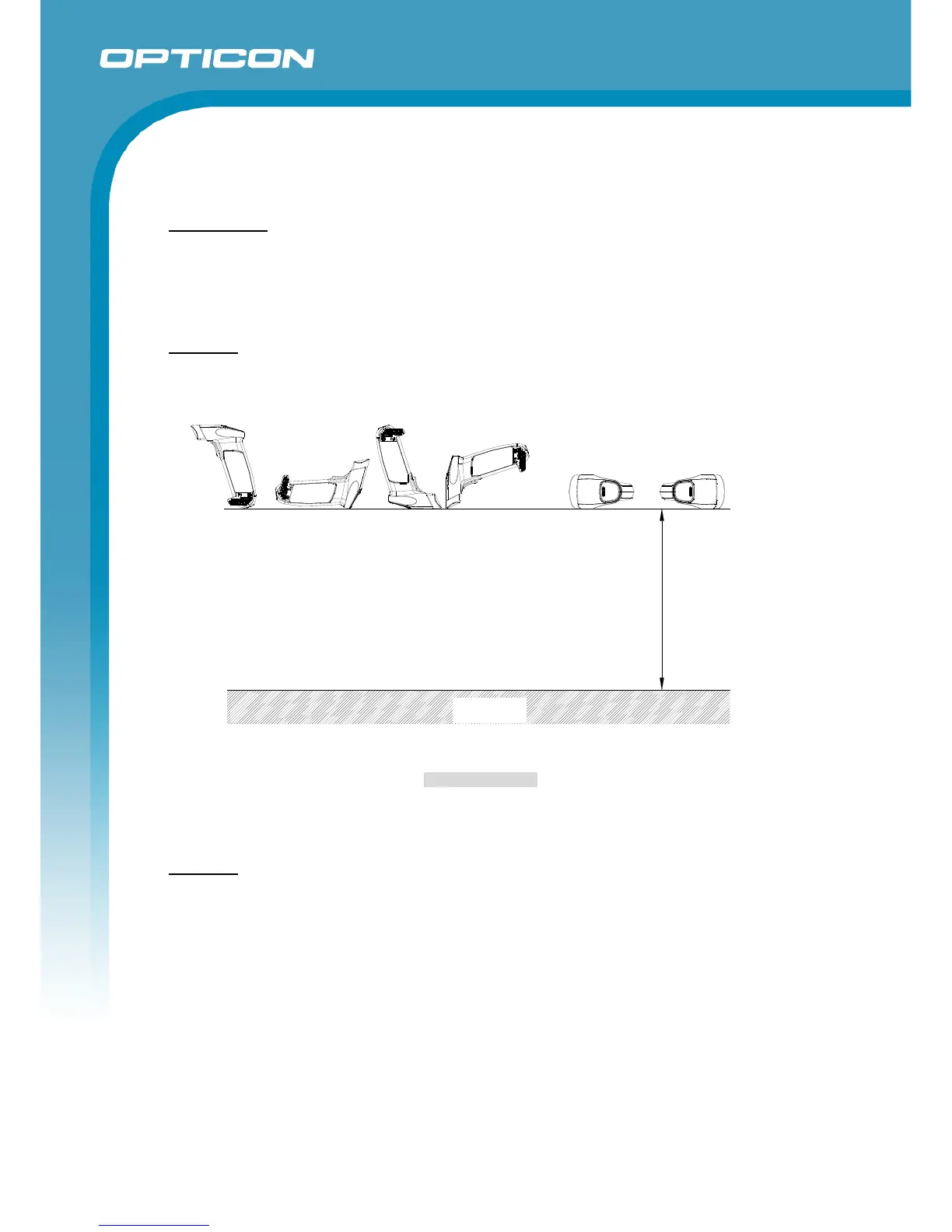

Drop test: Drop the scanner 30 times in total (5 times at each 6 face) from a height of 150 cm onto
a concrete floor as shown below.
150cm
Figure 9: Drop Test
9.8. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test:
Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and
6 faces, from a height of 150 cm onto a concrete floor.
9.9. Electrostatic Discharge (ESD) Immunity
Contact discharge : ±6 kV max (direct or indirect discharge, no malfunction)
Aerial discharge : ±8 kV max (no malfunction)
±15 kV max (no distraction)
Measurement environment : Testing method compliant with IEC-61000-4-2.
Discharge resistance : 330 Ω
Charging capacitor : 150 pF
Concret
150 cm
