12

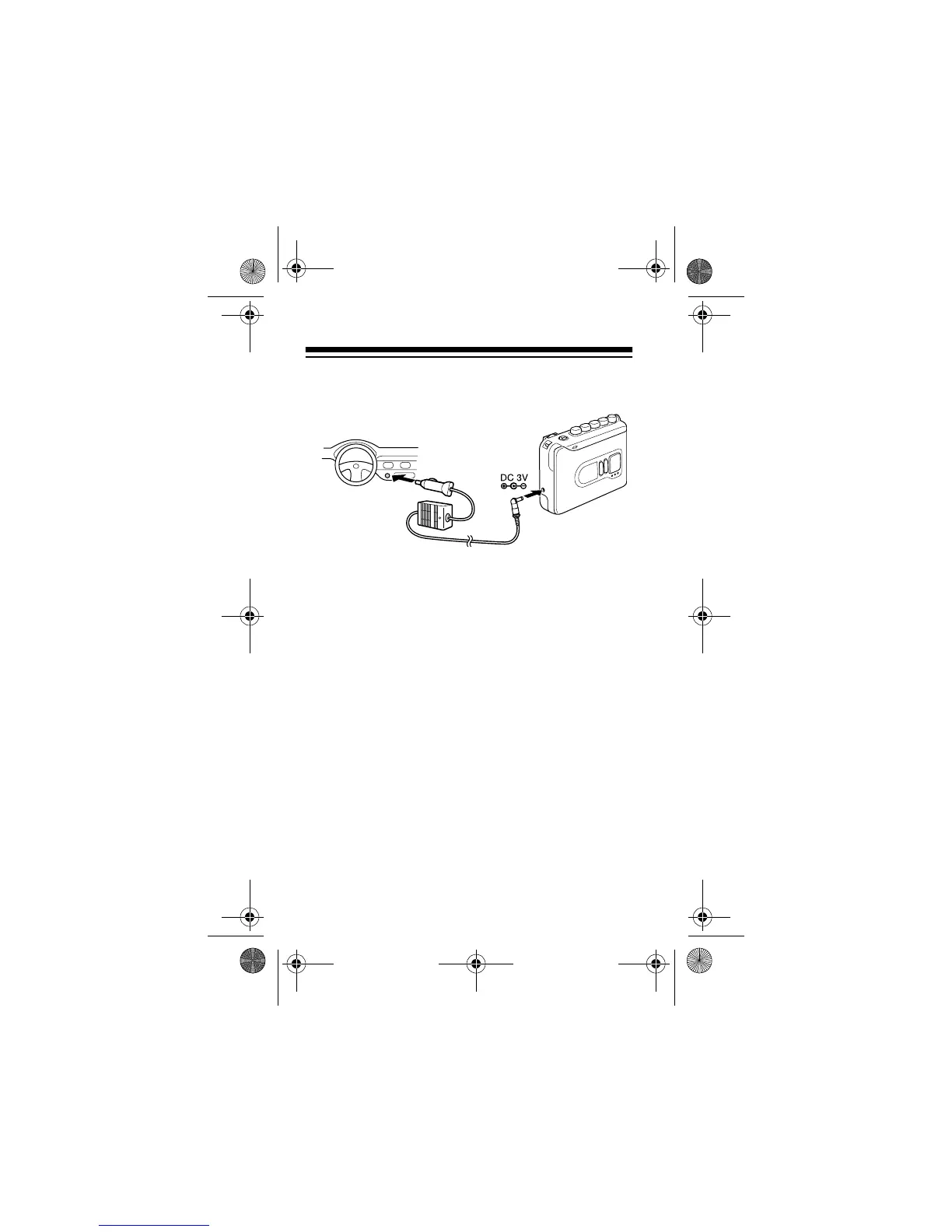

Follow these steps to power the cassette recorder
from your vehicle’s battery.
1. Set the adapter’s voltage switch to 3V.
2. Insert the adapter’s 3.4 mm outer diameter/1.3
mm inner diameter barrel plug into the adapter’s
cord, with the tip set to negative.
3. Insert the plug into the cassette recorder’s
DC 3V
jack.
4. Plug the other end of the adapter into the vehi-
cle’s cigarette-lighter socket.
14-1120.fm Page 12 Wednesday, January 19, 2000 4:27 PM
