Optoma HD20 - Connect to Video Sources

12
Installation

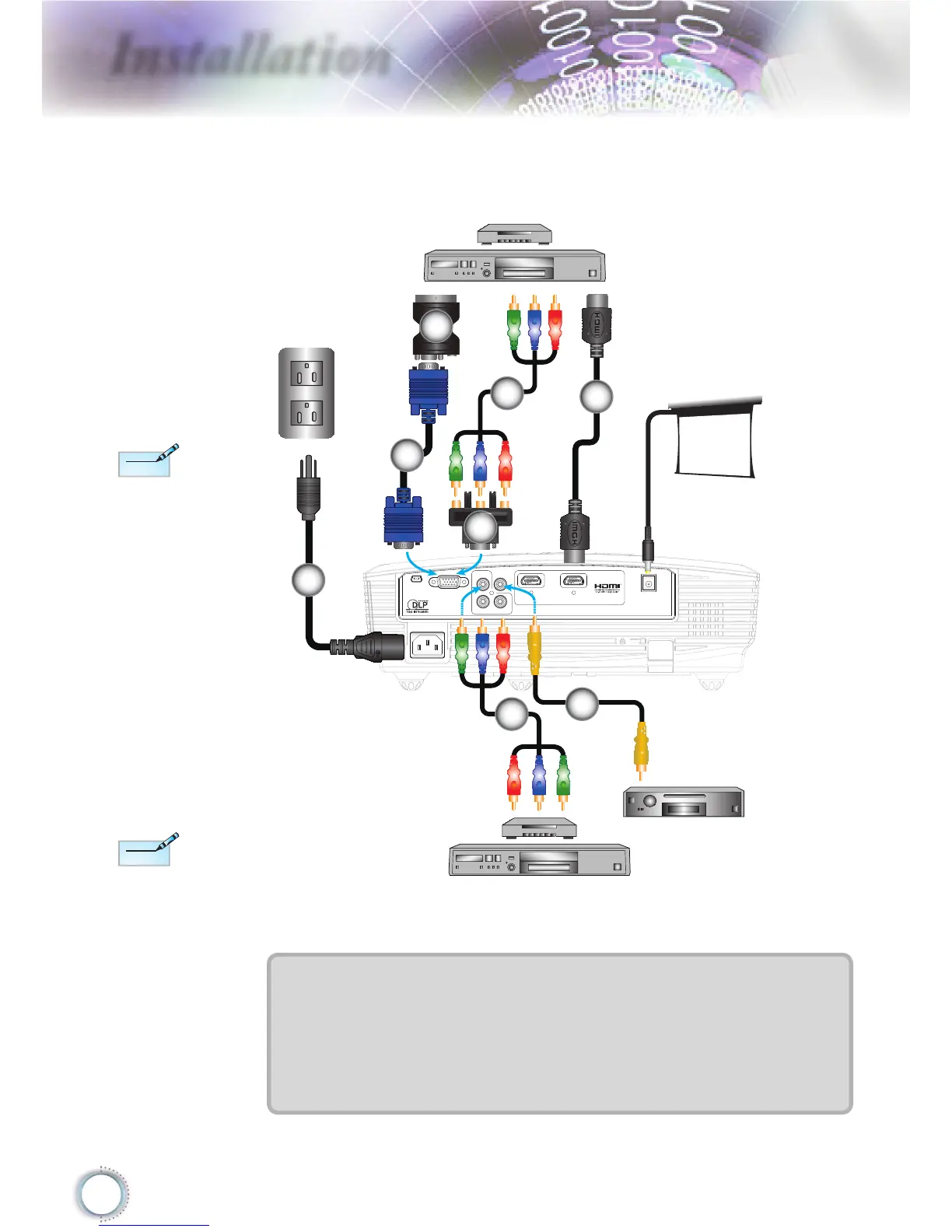

Connect to Video Sources
1....................................................................................................Power Cord
2................................................................................................... *VGA Cable
3................................................................................... *SCART/VGA Adaptor
4................................................*15-Pin to 3 RCA Component/HDTV Adaptor
5.............................................................................*3 RCA Component Cable
6..................................................................................................*HDMI Cable
7................................................................................*Composite Video Cable
 Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
 (*) Optional
accessory
Note
Note
DVD Player, Set-top Box,
HDTV receiver
Composite Video Output
SERVICE
VGA/SCART/YPbPr
Y VIDEO
Pb
Pr
HDMI 1
HDMI 2
12V OUT
E62405SP
R
1
4
5
3
7
2
DVD Player, Set-top Box,
HDTV receiver
+ 12V Output
5
6
 “12V OUT” is only
for trigger control.
Not a power
supplier port.
 “12V OUT” is
activated when
the projector is
turned on and
continues to stay
on till you turn off
the projector.
Note
Note
