Installation
Adjusting the Projector’s Focus
To focus the image, rotate the focus ring until the image is clear.

XGA series: The projector will focus at distances from 1.64
to 12.46 feet (0.5 to 3.8 meters).

WXGA series: The projector will focus at distances from 1.64
to 11.15 feet (0.5 to 3.4 meters).
Adjusting Projection Image Size

XGA series: Projection Image Size from 41.0” to 312.0” (1.0
to 7.9 meters).

WXGA series: Projection Image Size from 44.6” to 303.0”
(1.1 to 7.7 meters).

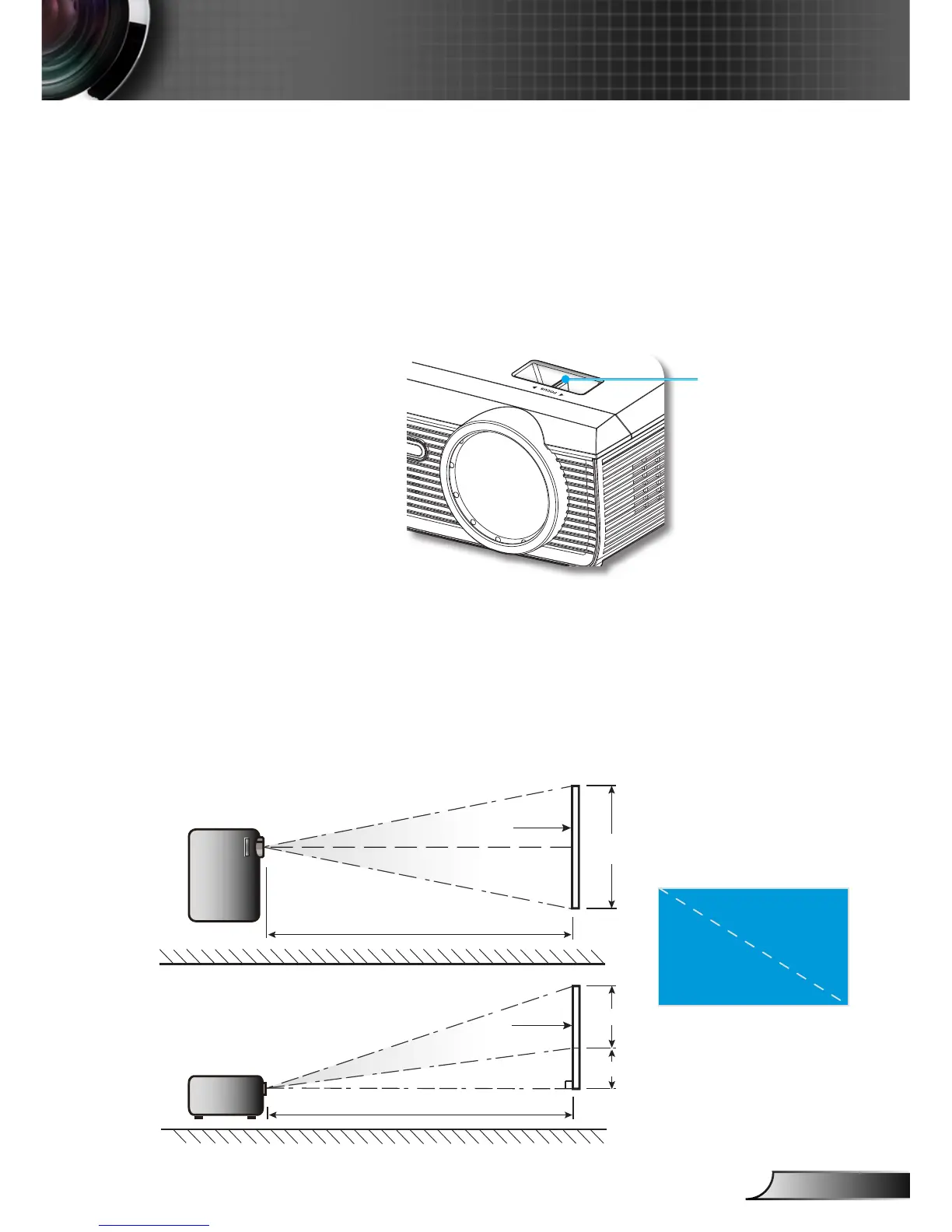

Focus Ring
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
