Opus 300 Installation Guide

13
Source connections
Audio source connections
It is possible to connect a total of six audio source components to the
MCU300. The connections are made from a line level output on the source
equipment to one of the six inputs on the MCU300 using RCA/phono to
RCA/phono cables.
Video source connections
When using a VSU300 each of the six sources can also supply video.
The connections are made from a composite video output on the source
equipment to one of the six inputs on the VSU300 using good quality 75
Ohm RCA/phono to RCA/phono video cables.
Remote control of source equipment through the WCU300
For remote control of the source equipment, six routed IR outputs are
provided. Individual IR emitters are plugged into the appropriate IR output
(corresponding to the respective audio input) the other end is stuck to the
IR receiving window of the source equipment:
Scart Out (Composite / RGB)
Composite
Video
Cb/Pb Y
Cr/Pr
Component
S-Video
Optical
Coaxial
Front
Surround
Centre
L
Video Out
VIDEO INPUTS FROM SOURCES
VIDEO INPUTS FROM SOURCES
4
456
56
123
123

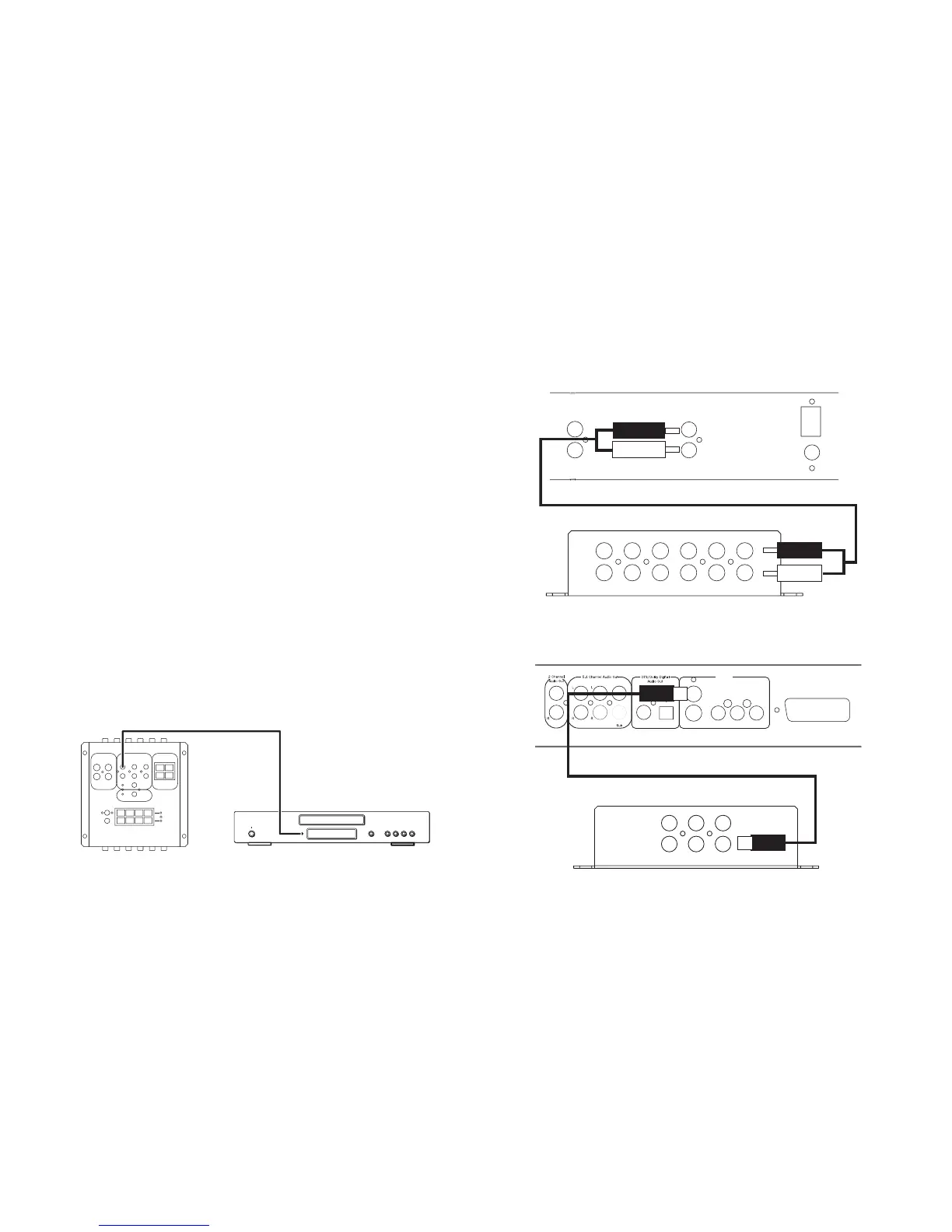

Detail of audio connections between a tuner and MCU300:
Detail of video connections between a DVD player and VSU300:
75 Ohm video RCA/phono cable
MCU300 Audio source
Opus IR-1
cable
Audio
Output
Audio
Output
L
R
FM 75Ω
AM 300Ω
Control Bus
Control Bus
In
Out
In
Out
AUDIO INPUTS FROM SOURCES
AUDIO INPUTS FROM SOURCES
SOURCE 6SOURCE 5SOURCE 4SOURCE 3SOURCE 2SOURCE 1
SOURCE 6 SOURCE 5 SOURCE 4 SOURCE 3 SOURCE 2 SOURCE 1
L
R
L
R
Phono-Phono/RCA-RCA hi-fi interconnect cable
Audio
source
MCU300
VSU300
Video
source
