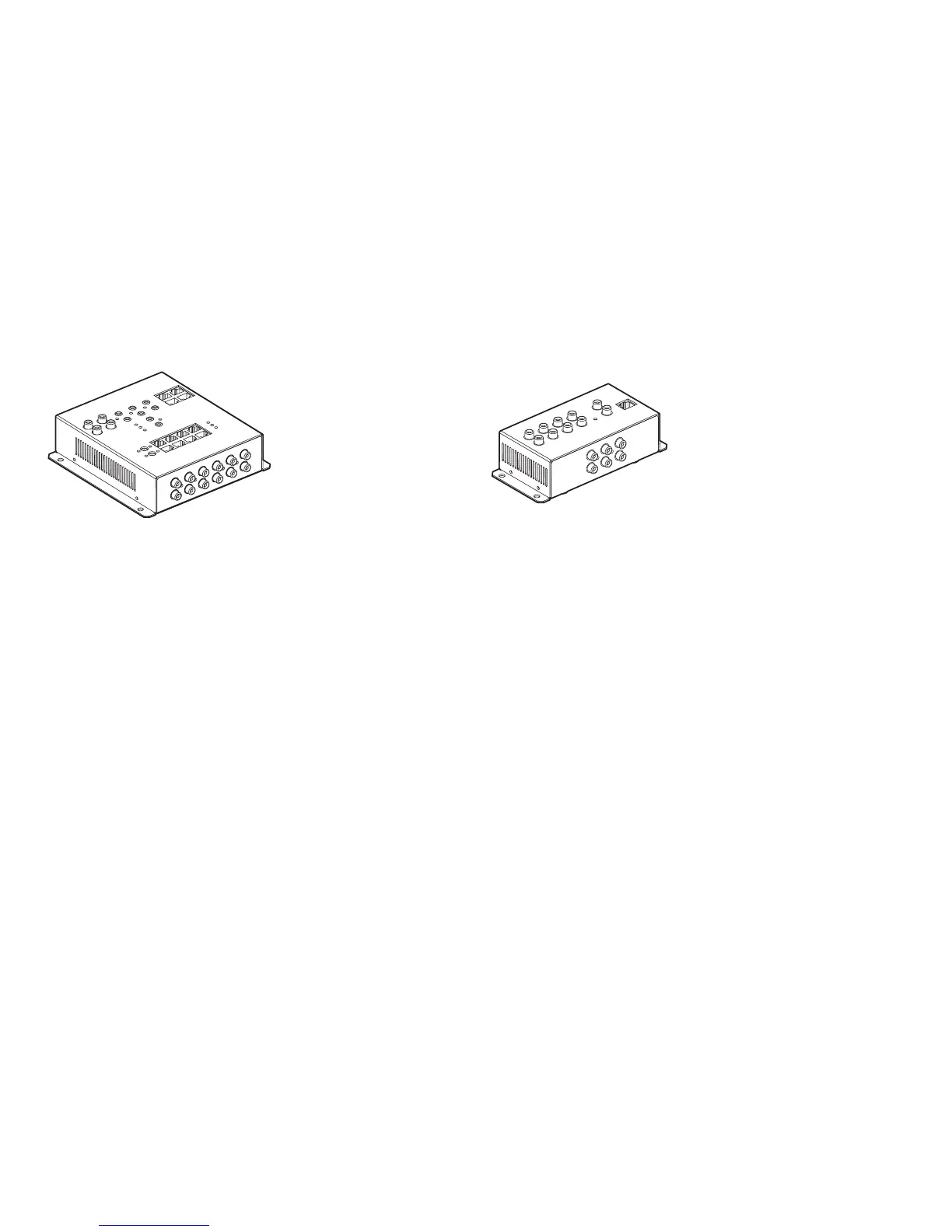

VSU300
No. of source inputs 6
No. of loop outputs 6
Source input specification 75 Ohm, composite video
Video bandwidth 10MHz
Maximum cable run to zone 50m / 150ft
Recommended cable type to zone RG6/CT100 75 Ohm co-axial
Required power input Powered by MCU300
Dimensions (W x D x H) 165 x 74 x 44mm
Weight (net) 0.6kg
MCU300
No. of source inputs 6
No. of loop outputs 6
No. of external inputs/loop outputs/CCTV 1
No. of zones per hub 4 main + 4 sub
System zone maximum (4 chained MCU300s) 16 main + 16 sub
Frequency response 20kHz – 20kHz
Trigger output 12V @ 100mA
Required power input 24V dc
(via supplied PSA65U)
Note: Second PSA65U required for sub zone power
Dimensions (W x D x H) 165 x 172 x 48
Weight (net) 1.14kg / 2.5 lbs
System specifications
19
