Opus 300 Installation Guide

15
Advanced system options
Note: Full details of installation, connection, operation and special features
can be found in the guide that accompanies the LIM300 module.
The LIM300 Local Input Module (LIM) is an optional in-wall module that
allows the user to add additional local sources to those distributed by the
MCU300.
The local source may only be heard in the room where it is connected and
the corresponding sub-zone (if connected) and is not distributed to other
rooms. LIM300s can be fitted in as many rooms as are desired.
The LIM300 connects between the MCU300 audio hub and a WCU300
keypad using Cat-5/5e wiring. Each main zone can support two LIM300s,
giving you the option of listening to one or two local sources (eg.
Playstation, MP3 player). Each local source can be controlled through the
Opus remote and/or keypad.
Note: The MCU300 and WCU300s must be in Opus A-BUS mode in order
to use an LIM300.
Note: If you are running a sub-zone, this must always be wired via the
LIM300 in the same way as the main zone.

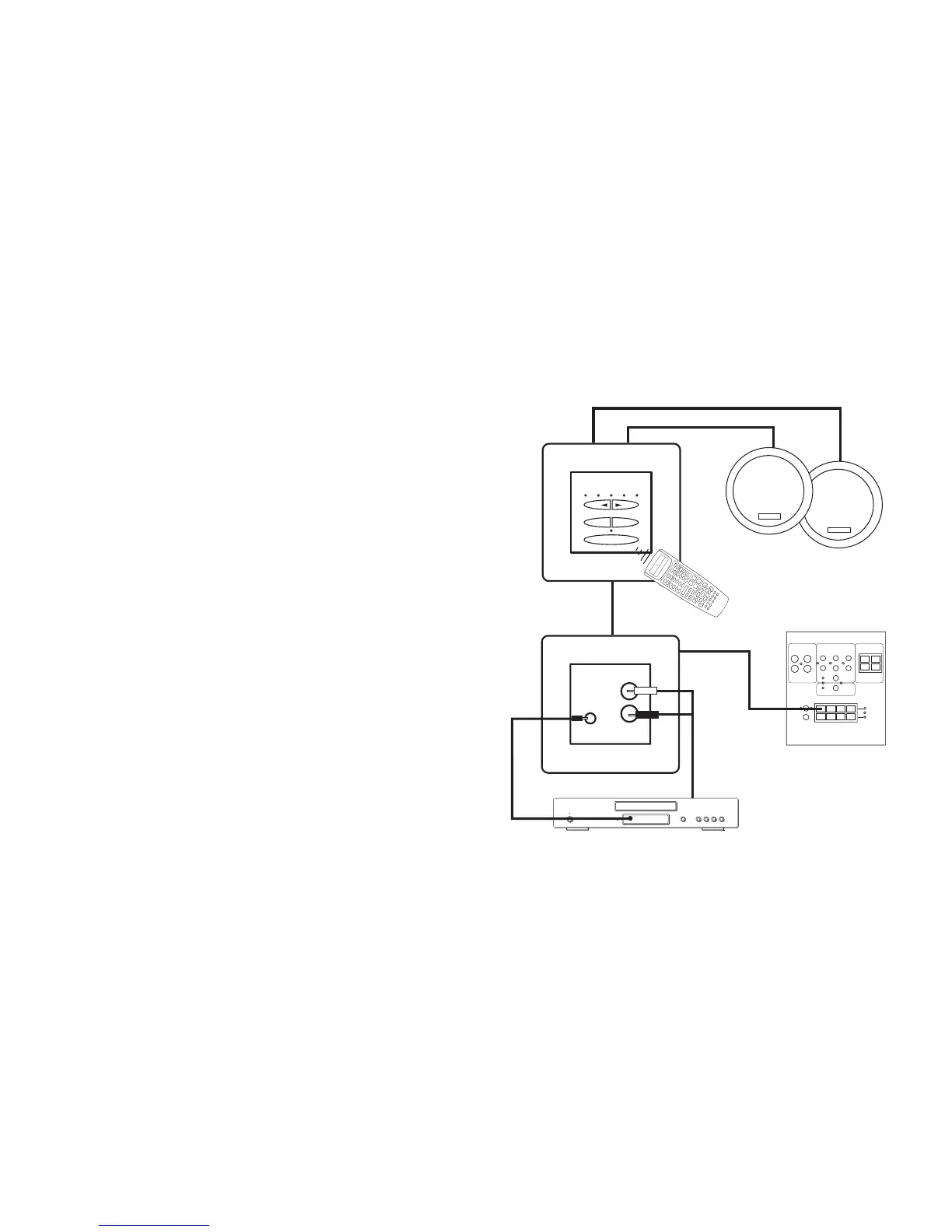

MCU300
Audio source
Opus IR-1 cable
LIM300
WCU300
LRC300
Speaker cable
Cat-5 cable
OS165CC
Stereo/RCA
phono
leads
Cat-5 cable
