Opus 300 Installation Guide

16
Advanced system options continued
AMR650 Active Speakers
The AMR650 active speakers can be used where it is not desired to have
a keypad fitted in the wall. The AMR650 active speakers feature an IR
receiver and amplifier in one of the speakers and like the WCU300 keypad
do not require mains power.
1. Using a single Cat-5e cable, connect the AMR650-A to the
MCU300/VSU300 via an RJ45 plug at the MCU300, and the eight-way
colour-coded punch down connection at the AMR650.
The RJ45 hub connection should be wired to EIA/TIA568A standard as
shown in the wiring guide on page 6.
The Cat-5 connection from MCU300 to the AMR650-A should not
exceed 30 m/100 ft.
2. The AMR650-A is then connected to the AMR650-P using either Cat-5e
cable terminated at eight-way colour-coded punch down connections
(all eight cores must be connected) or using a run of standard speaker
cable.
Only one method of connection between the active and passive speaker
is necessary.
Full details of installation, connection, operation and special features can
be found in the guide that accompanies the AMR650 speakers.

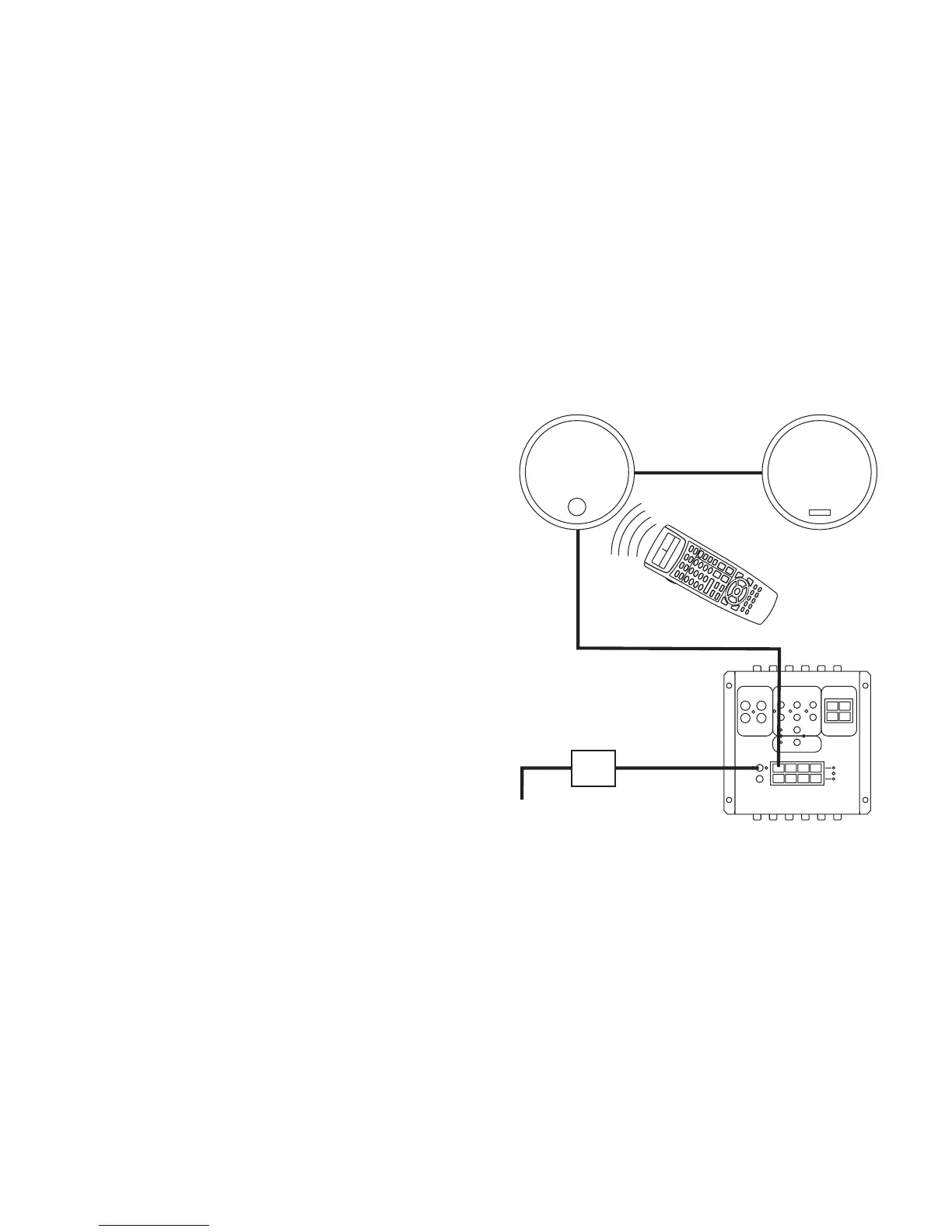

LRC300
Cat-5 cable
AMR650-A AMR650-P
MCU300
PSA65U
