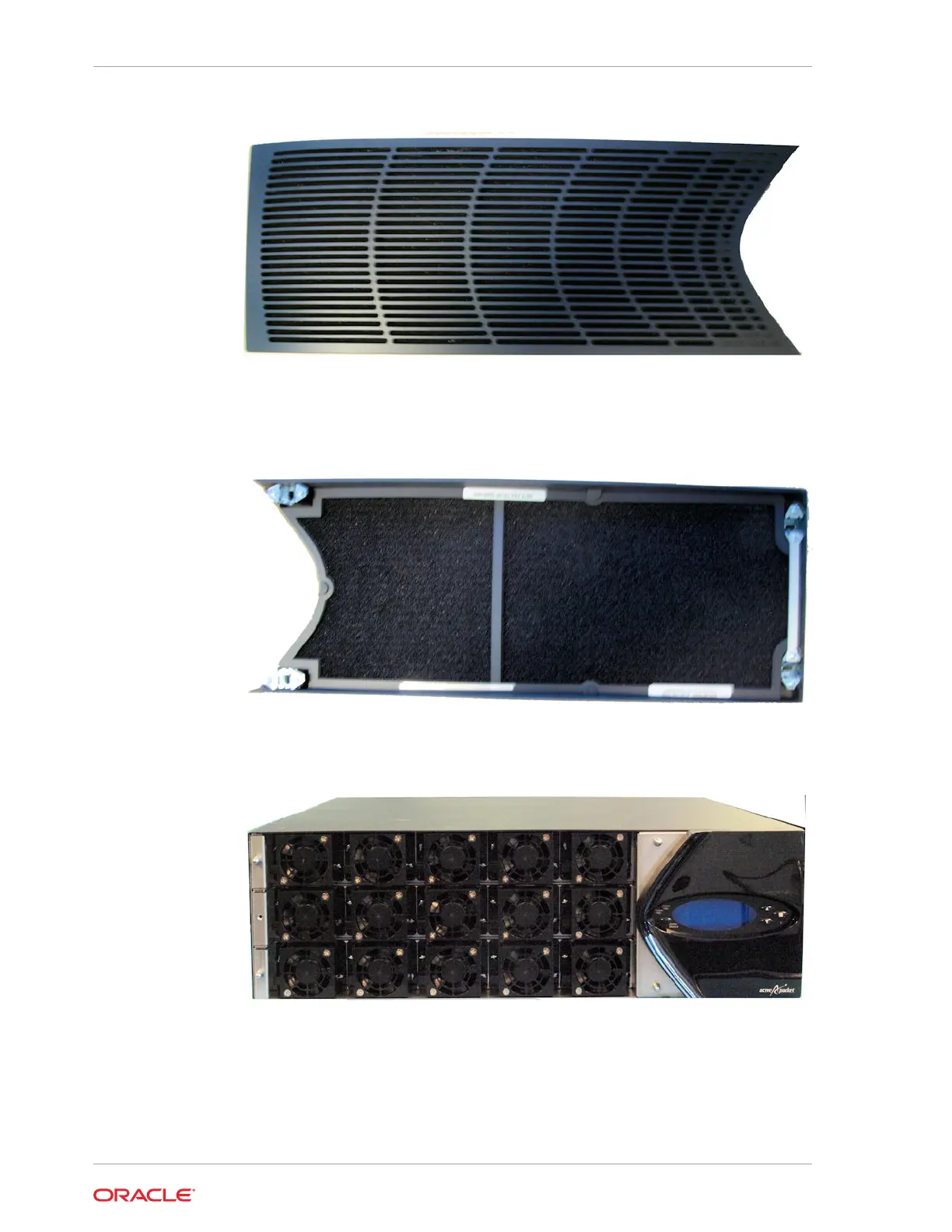

Acme Packet 6300/6350 With Attached Bezel
Front Bezel
2. The back side of the bezel holds the fan filter and is outfitted with four receptacles
to attach to four chassis posts that hold the bezel in place on the chassis
Back Side of the Front Bezel
3. Set the fan bezel aside.
Acme Packet 6300/6350 Fans
Chapter 6
Fan and Filter Maintenance
6-32
