Oracle Acme Packet 6300 User Manual

3
Graphic Display
To the left the 4-line graphic display on the Acme Packet 6300/6350 front control
panel is visible at all times. To the right the buttons used to navigate the display are
accessible as well. The graphic display reports real-time status, alarms, and general
system information. You can view this information without using a console, telnet, or
SSH connection into the Acme Packet 6300/6350.
Graphic Display Navigation
Three navigation buttons are located to the right of the display. These are used to
scroll through display menus and select the information to view on the graphic display.

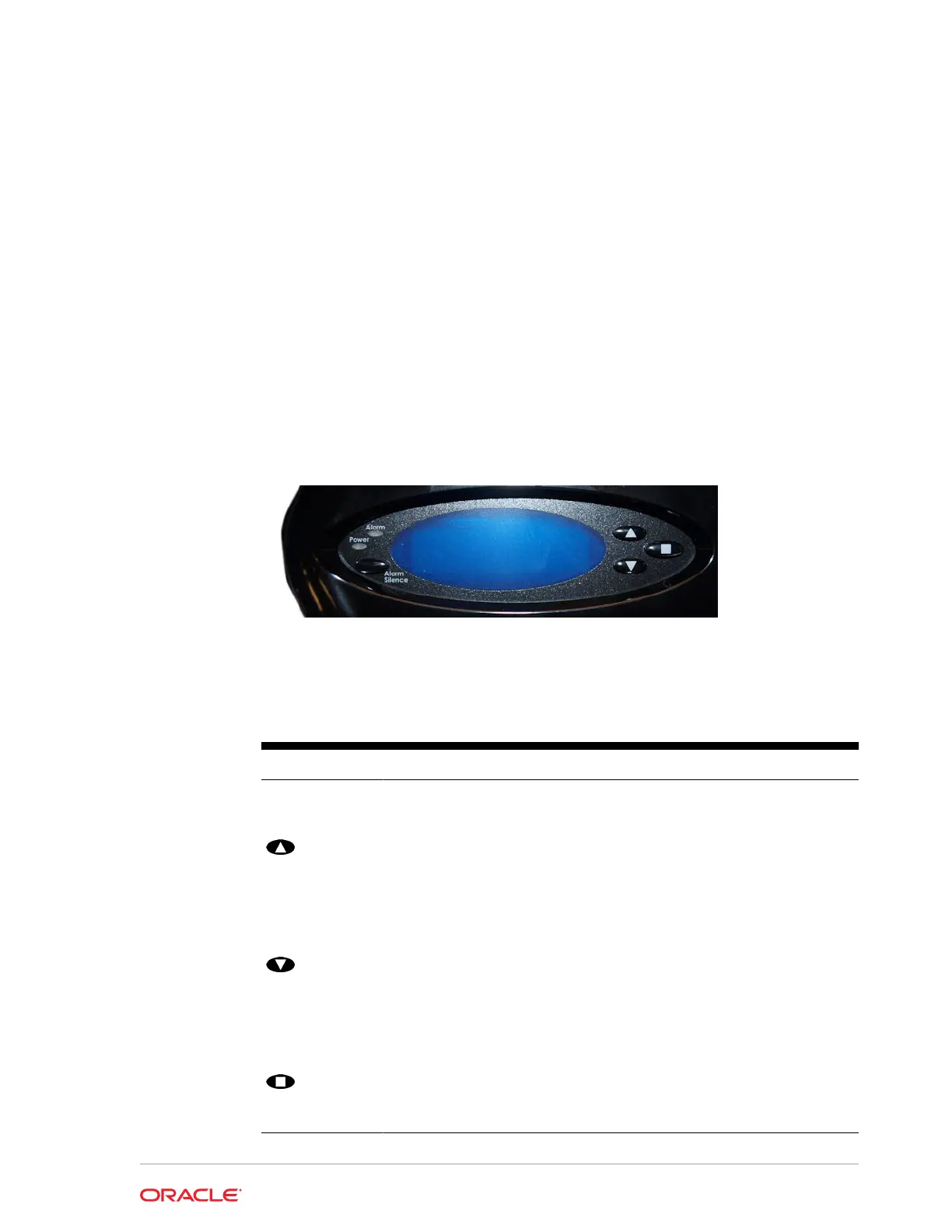

Acme Packet 6300/6350 Graphic Display and Control
The following table lists the function of each graphic display button.
Table 3-1 Acme Packet 6300/6350 Graphic Display Button Functions
Button Description
Up Scrolls up through the previous menu or display items, one line at a time.
Down Scrolls down through the next menu or display items, one line at a time.
Enter Selects the menu or display item that appears in the graphic display
window.
3-1
