Oracle Acme Packet 6300 User Manual

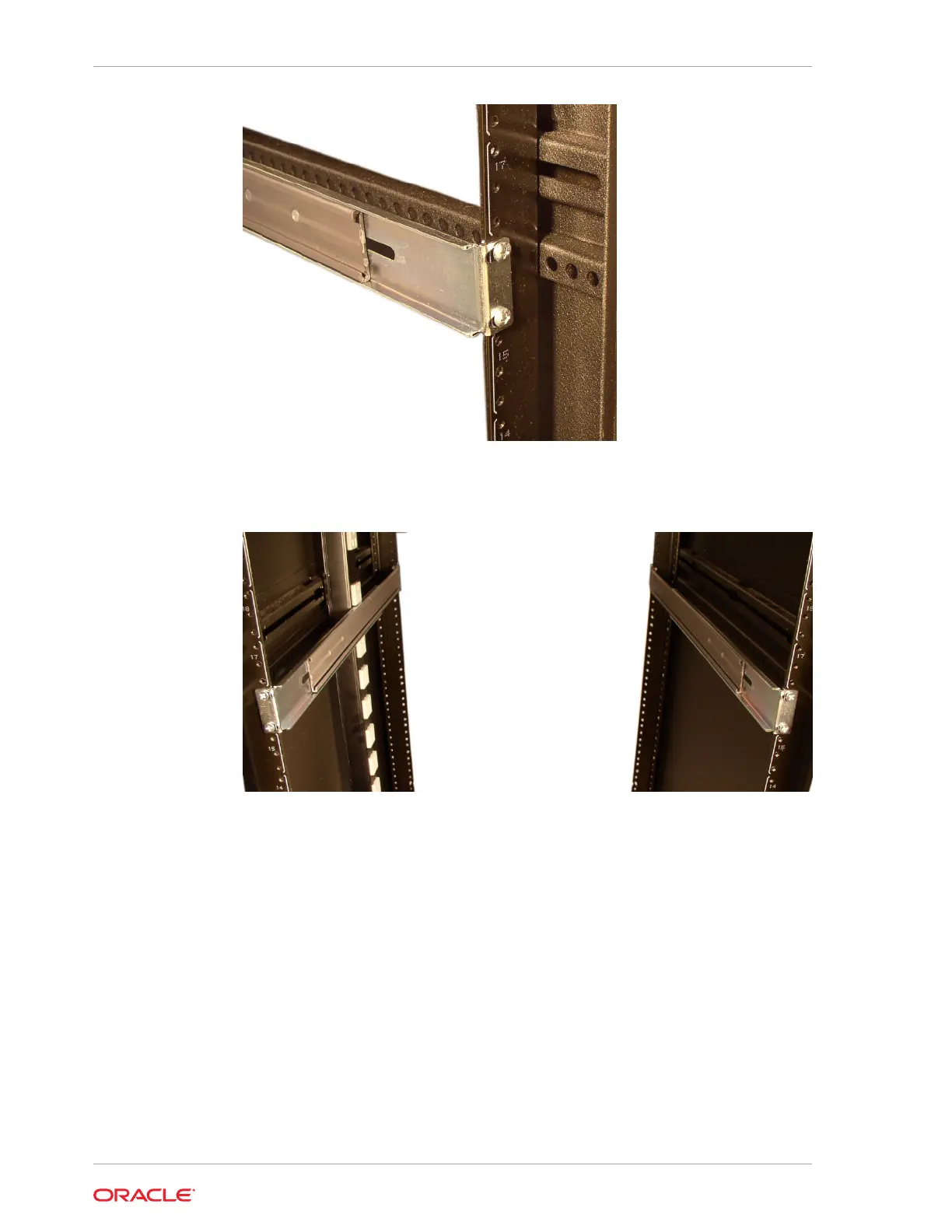

Stationary Slide Rail Secured to Rear Mount Point
5. Your rack should resemble the following image.
Rear-Mounted Stationary Slide Rails
Square Hole Rack Installation
This section explains how to mount the Acme Packet 6300/6350’s mounting slide
rail assembly in a square hole equipment rack. You can use 10-32 cage nuts as an
alternative to the provided nut bars, but they must be mounted prior to this procedure.
Front-Mounting a Square Hole Rack Installation
To install the stationary slide rails on the front of a square hole equipment rack:
1. Locate the following components:
• 2 x stationary slide rail sections
• 4 x 10-32 x 5/8” screws
• 2 x mounting spacers
Chapter 4
Cabinet-Style 4-Post Chassis Installation
4-10
