MICROS Tablet 721 - Front and Side Dimensions

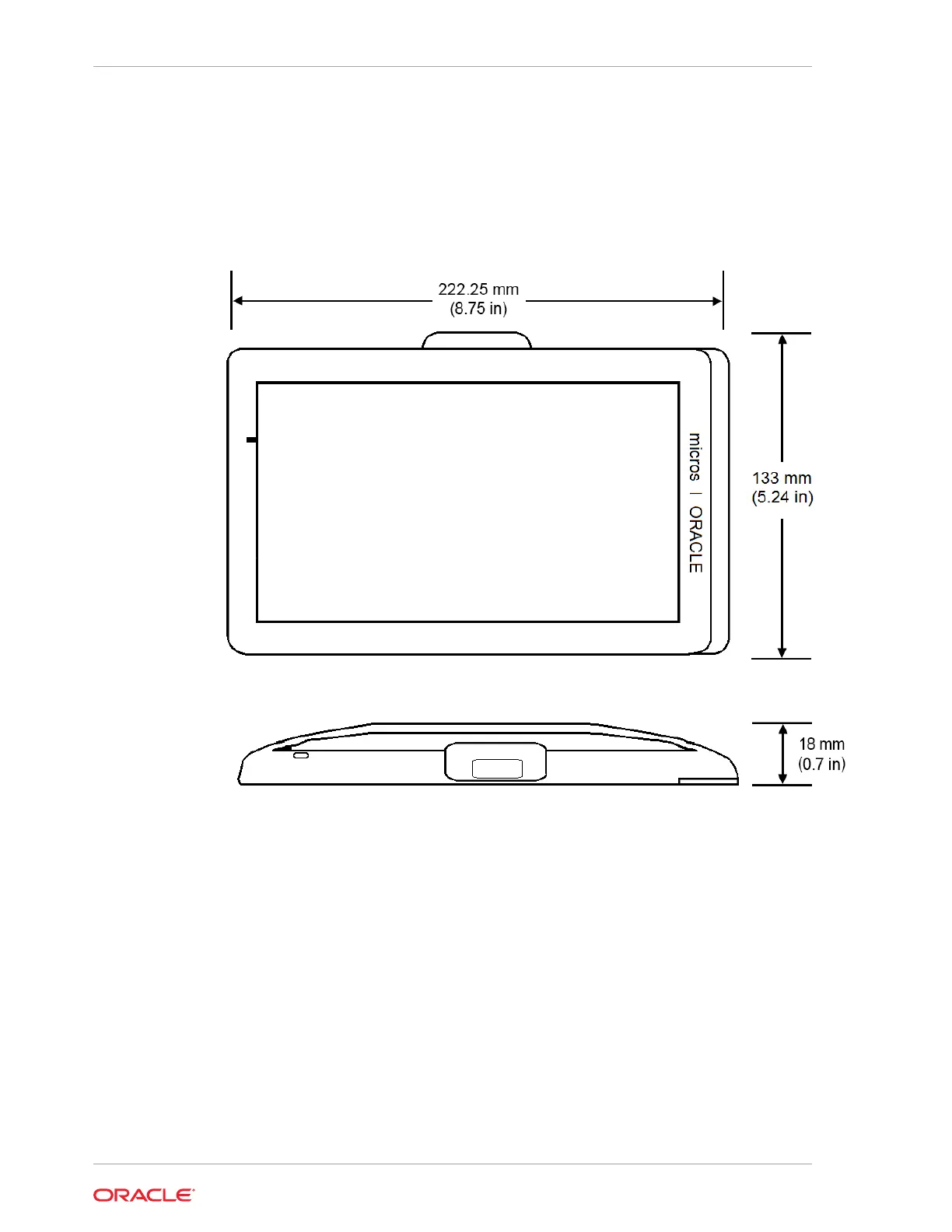

Figure 29-3 Oracle MICROS Tablet 721 Dimensions

MICROS Tablet 720 - Front and Side Dimensions

Figure 29-4 Tablet 720 Dimensions

Chapter 29

MICROS Tablet 721 - Front and Side Dimensions

29-4
