MICROS Workstation 6 Series - Side Dimensions with

Adjustable Stand and High-Mount Customer Display

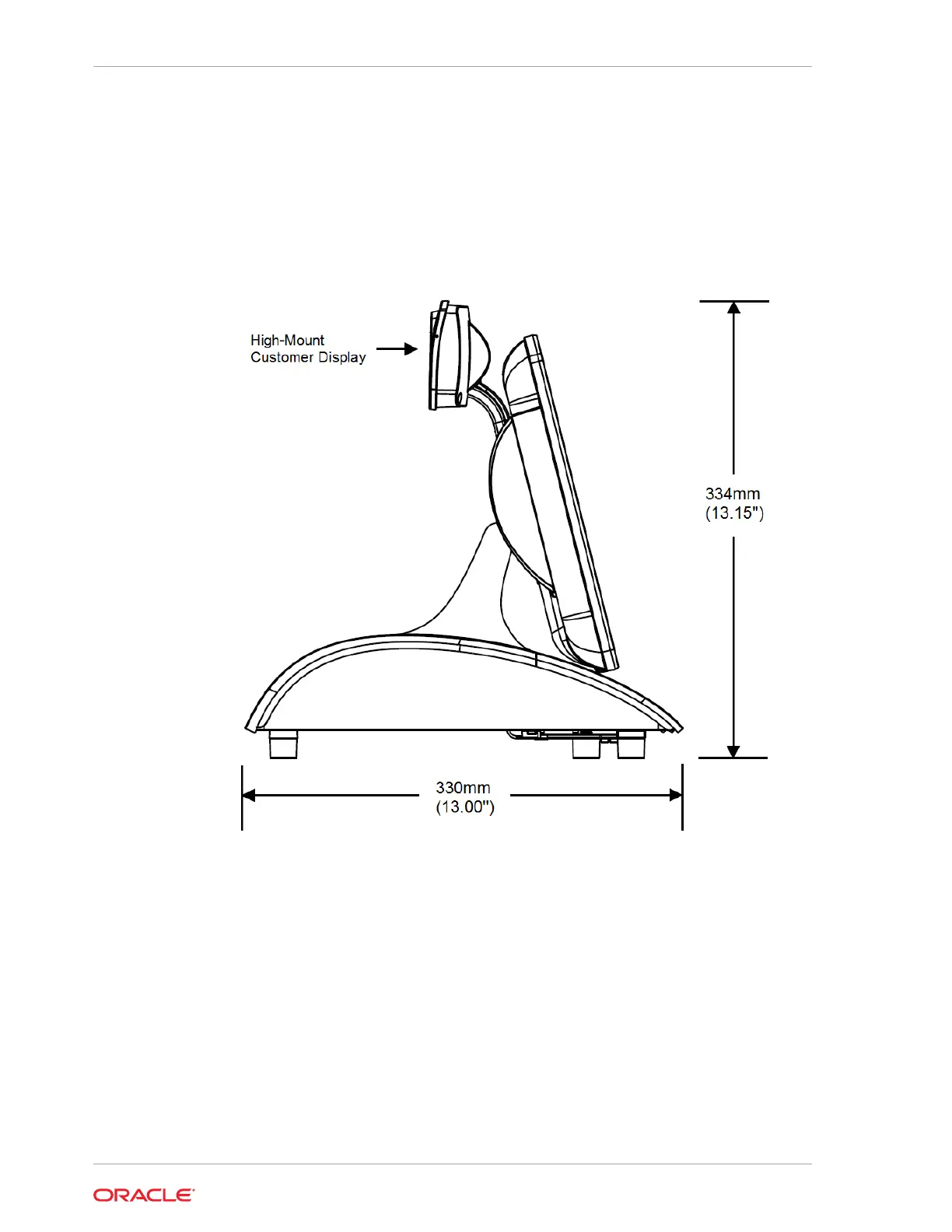

Figure 29-10 Dimensions (Side) with the High-Mount Customer Display

Chapter 29

MICROS Workstation 6 Series - Side Dimensions with Adjustable Stand and High-Mount Customer Display

29-10
