Oracle MICROS Workstation 6 Series User Manual

31
Hook-Up Cables
The following pages include assorted diagrams of optional hook-up cables that are
used on most MICROS Workstations.
• Null Modem Cable for e7 KVM Controller
• IDN Port Conversion Cables
• 8-Pin to 6-Pin Hook-up RS422 Cable
• IDN to EIA/TIA-568-A Patch Cable
Null Modem Cable for e7 KVM Controller
The figure below shows a Null Modem Cable that is used for the e7 KVM Controller
serial interface.

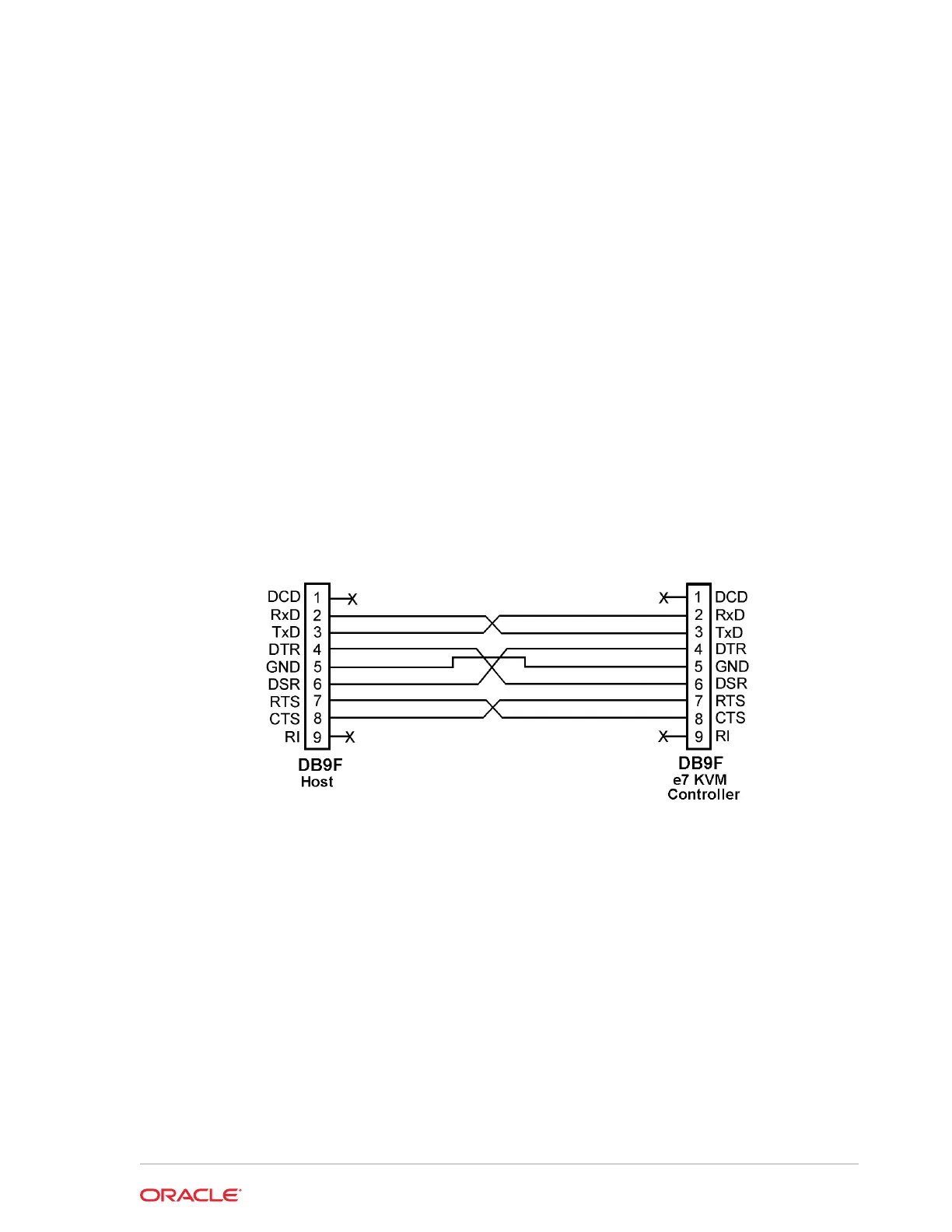

Figure 31-1 Null Modem Cable Pin-Outs
IDN Port Conversion Cables
The figure below shows a diagram of adapter cable PN 300319-102-PT. This cable
converts the RJ45 IDN or RS422-A/RS422-B ports shown in the figure below to a DB9
Male connector.
31-1
